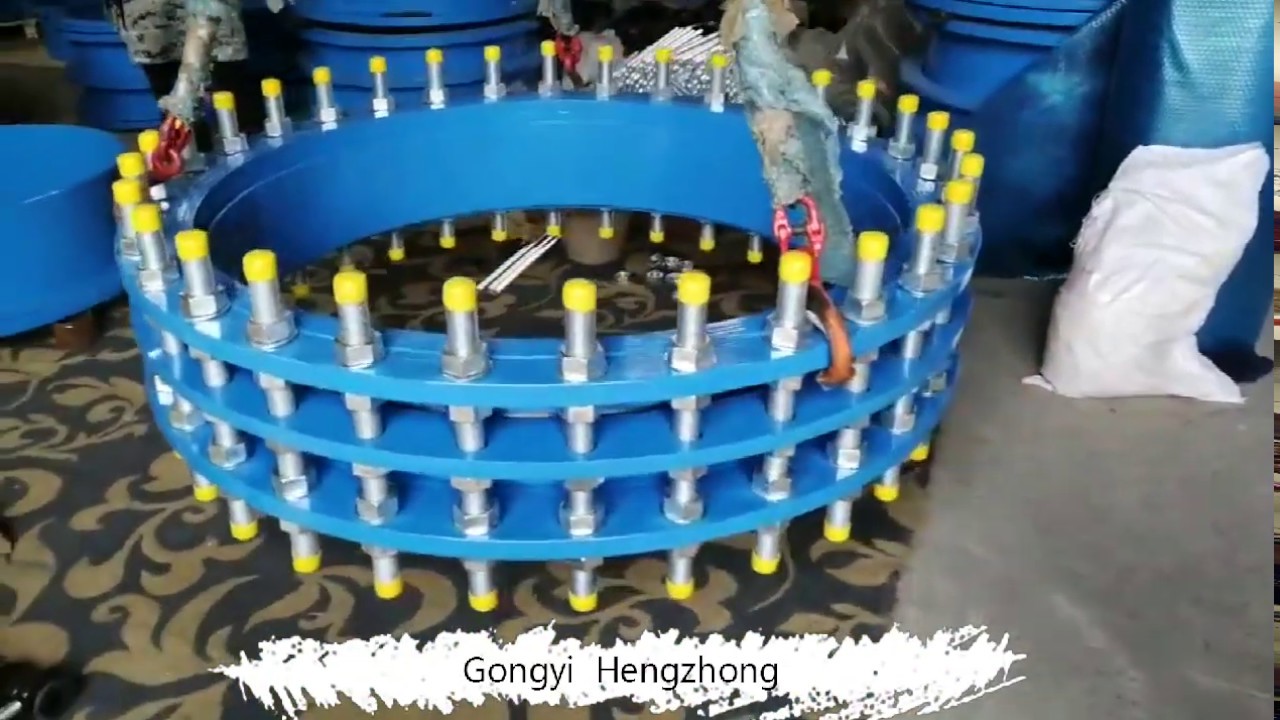

The double flange power transmission joint is composed of flange loose sleeve expansion joint, short pipe flange, power transmission screw and other components, which can reduce the pressure thrust (blind plate force) of the connected parts and compensate the installation error of the pipeline. The double flange power transmission joint cannot absorb the axial displacement.
The model of the double flange power transmission joint is vssja (C2F): both sides are connected with the flange. When installing, adjust the connection length of both ends of the product, tighten the gland bolts in turn and evenly, and then adjust the limit nuts, so that the pipeline can expand freely, lock the expansion amount, and ensure the safe operation of the pipeline.
