Скачать или смотреть Example 5.6 Thermodynamics: Determine the heat transfer and the work for the constant pressure.

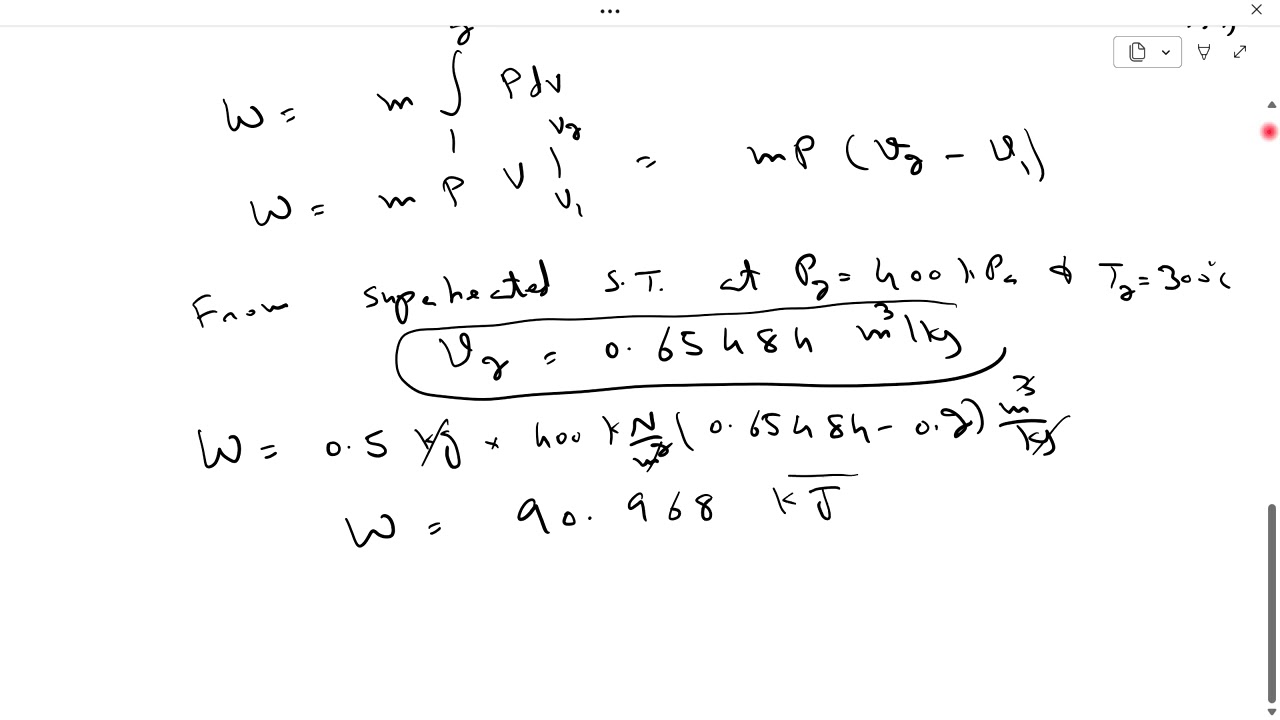

Example 5.6: A cylinder fitted with a piston has a volume of 0.1 m³ and contains 0.5 kg of steam at a pressure of 0.4 MPa. Heat is transferred to the steam until the temperature reaches 300 °C, while the pressure remains constant. Determine the heat transfer and the work for this process.
Example 5.6 from applied thermodynamics lectures,
A cylinder fitted, with a piston, has a volume of 0.1 m³, and contains 0.5 kg, of steam, at a pressure of 0.4 MPa, Heat is transferred, to the steam, until the temperature, reaches 300 °C, while the pressure remains constant, Determine the heat transfer, and the work for this process,
Work done,
Heat transfer,
Specific internal energy,
specific volume,
wet region,
superheated region, constant pressure process,
First law of thernodynamics,
