Скачать или смотреть Gilson Concrete Air Meters featuring the Gorilla Gauge (HM-30)

https://www.globalgilson.com/gilson-t...

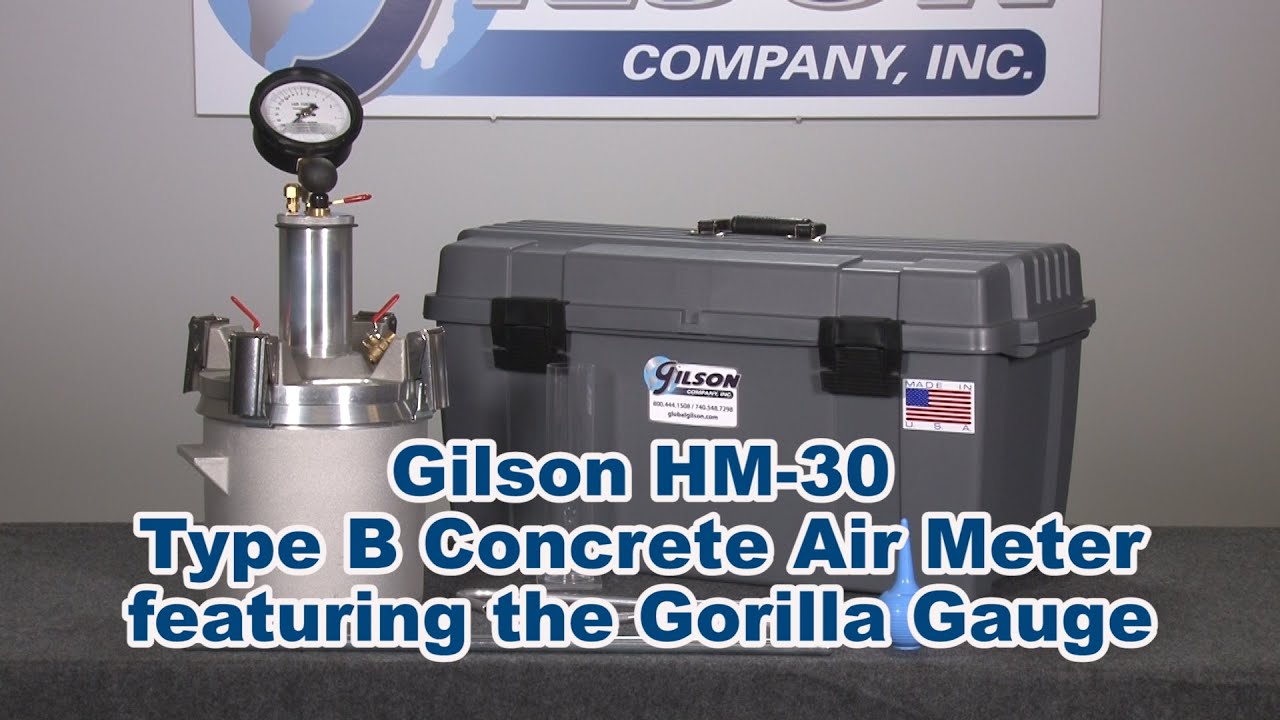

Gilson's high-quality Type B Concrete Air Meter measures air entrainment from the fresh concrete sample in the base. Our HM-30 model features the exclusive Gilson Gorilla Gauge, while the new, economical HM-30S offers an American-made stainless steel gauge. Other features of the two units are identical. Long-lasting stainless steel clamps adjust quickly and are less expensive to replace. A built-in pump with a large, easy-grip handle builds pressure in the meter quickly. It is shielded to keep dirt and water out of the piston area. Brass petcocks have stainless steel ball valves for accuracy and durability. Petcock handles are vinyl coated for more comfortable operation. The cast aluminum base volume is 1/4ft³ and can also be used for unit weight and yield determinations.

Accuracy of the Gilson air meters exceeds ASTM requirements. Calibration Vessel, Calibration Tubes, Tamping Rod, Aluminum Straightedge, Syringe for water, Carrying Case, and operating instructions are all included. The sturdy plastic carrying case holds meter with all components securely in die-cut foam padding.

HM-30 features our exclusive Gorilla Gauge, a rugged German-engineered gauge with precision jeweled movement and a high-strength Polymid B molded housing that is waterproof and rustproof. Micro-adjustable calibration screws ensure superior accuracy and save time during calibration and maintenance procedures. The Gorilla Gauge is ANSI-rated B40 Grade 2A with accuracy ±1/2% of full scale. The dual-layer safety glass lens is sealed behind a threaded bezel with O-ring.

HM-30S uses a dependable and accurate American-made gauge with stainless steel housing. The sturdy industrial rack and pinion mechanism is accurate to ±1% of full scale. A threaded bezel with gasket seals the safety glass lens.

See our full line of Concrete Air Meters.

Calibrating your meter? Read our blog Air Meter Calibration: A Step-By-Step Guide.

Features:
Accurate, high-quality, and easy to use for testing air-entrained concrete
New precision Gorilla Gauge features a rugged plastic housing and safety glass
The sturdy plastic carrying case is fitted to carry all required components

Included Items:
Gilson Concrete Air Meter, with Gorilla Gauge or Stainless Steel Gauge
Calibration Vessel
Calibration Tubes
24in (610mm) Tamping Rod
Aluminum Straightedge
Syringe
Plastic carrying case


For more information go to https://www.globalgilson.com/gilson-t...
