high speed bundle packaging machine|YQ machinery PE film boxes bundling solutions

product description:

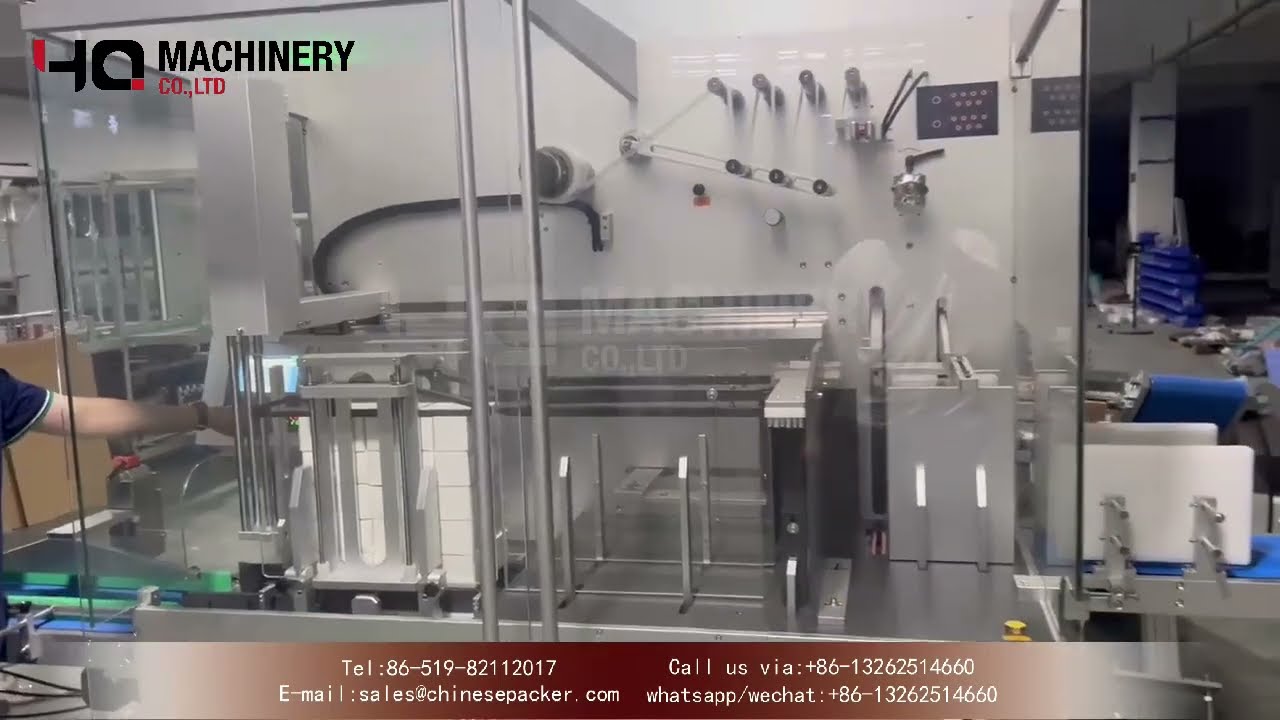

The stacking and bundling machine adopts imported electrical components, PLC control system, human-machine interface, and has the characteristics of stable operation and simple operation; it is mainly used for the combination and binding of boxed products in the food and pharmaceutical industries.
Technical Parameters:
1.1 The maximum package size (LxWxH) is 240*150*300mm and the minimum is 50x60x90mm. (this size is the bundle size)
1.2 Packaging material: PE film Applicable cable tie specification (width): 30~80mm
Bundle film thickness: 30~80um
1.3 Binding speed: The binding speed is 15~25 bundles per minute (depending on the size of the box and the number of layers)
1.4 Working power supply: 220V/50Hz
1.5 Equipment power: 1500W
1.6 Working air pressure: 0.6~0.8MPa
1.7 Dimensions: 1100x800x1600mm
1.8 Delivery size: 1300x250x800mm
1.9 Total weight of equipment: 500kg

2. Use environment:
2.1 The working air pressure is not lower than 0.6 MPa, the displacement: 0.3 cubic/minute
2.2 The working power is stable at 220V/50HZ.
2.3 The surrounding environment is clean and hygienic.
2.4 The front end is connected with the cartoning machine
