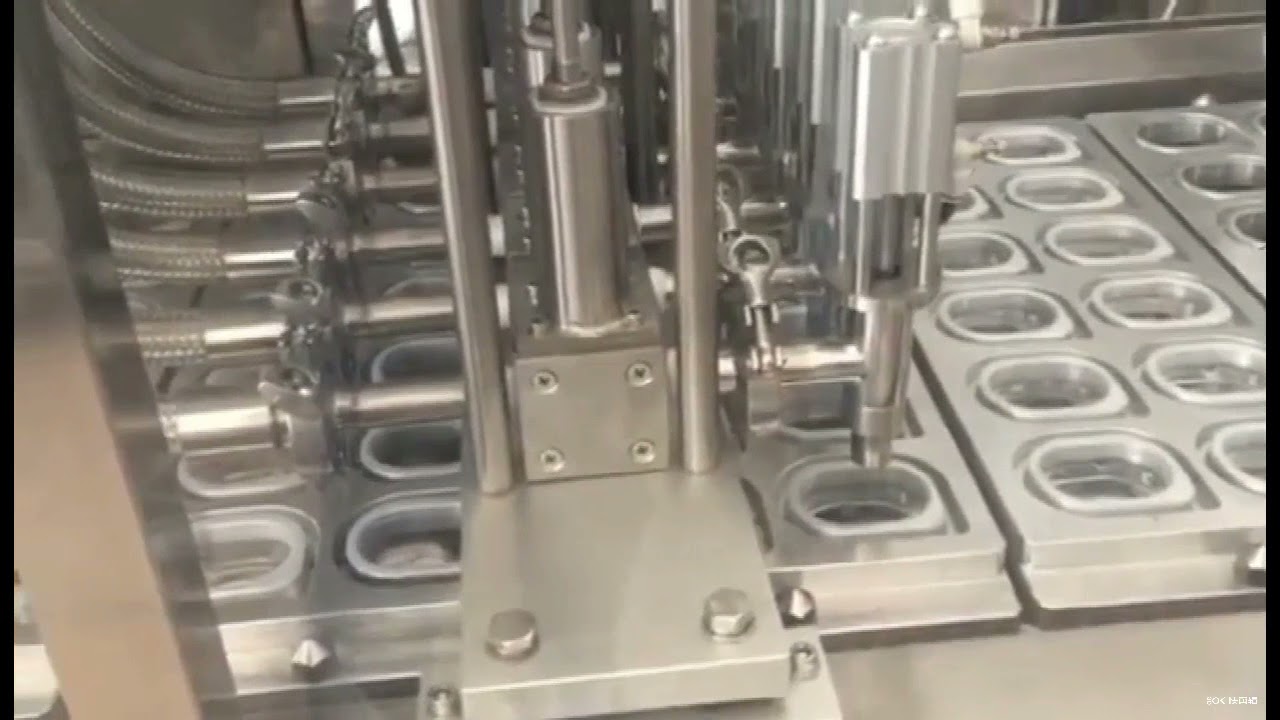

Automatic 12 head high speed liquid sauce paste cup filling closing machine
Uses and features

AZ60 automatic plastic cup (box) filling and sealing machine is suitable for the production of various yogurt, jelly drinks and other products. It can automatically complete the automatic cup dropping, filling, filling, automatic suction film, two track heat sealing and other functions. The whole machine adopts Japanese Omron programmable logic controller, Taiwan pneumatic control components, and intelligent digital display temperature control system. It has the characteristics of high sealing strength, good sealing, and low failure rate. It is an automated product produced by the enterprise.



AZ60 series automatic filling and sealing machine, with different specifications for filling, is suitable for any beverage and paste products with different viscosities, such as jelly (jelly), milk, ice cream, butter, fruit puree, fruit juice, mineral water, etc. Fill and seal with a composite film of corresponding material.



This machine is made of stainless steel, suitable for all kinds of liquid beverage filling, sealing, film cutting, automatic temperature control, automatic coding automatic sealing machine.



Maintenance:

1. To ensure food hygiene, it must be cleaned and wiped with a brush and water before and after use.

2. The surface of the sealing film should always be kept clean and bright, and no scratches or scratches should be allowed.





Appendix 2 List of wearing parts

line

Part Name

Specs.

Qty.

1

Heating tube

250W

8pcs

2

Thermo couplet(probe)

K type 2 meters

2pcs

3

Proximity switch （Normally open type）

36V

2pcs

4

Seal rings

Depends on fill volume

Depends on machine model



Technical parameters

Model

AZ60-2

AZ60-4

AZ60-6

AZ60-8

Power supply

3P 380V/50HZ or 220V 60HZ 3PH

Power

3kw

4kw

5.5kw

7.5kw

Fill volume

20-100ml,50-250ml,100-500ml,250-1000ml selectable

Fill speed

1800 cups/h

3600 cups/h

5400 cups/h

7200 cups/h

Fill error

1%

Cup sizes

Diameter≤95mm, height≤110mm

Air pressure

0.6-0.8Mpa

Gross weight

600kg

800kg

1000kg

1200kg

Machine dimensions

2800*700*1850mm

3000*900*1850mm

3500*1100*1850mm

4200*1300*1850mm




We are a manufacturer and exporter of assembly machine, packging machine, printing machine and mask machines.
For any enquiries, please contact
Shenzhen Azone Machinery Co.,Ltd
Steven Phang
Website:https://www.azonemachinery.com/produc...
Tel/Fax:0086-755-27403482
Mobile/WhatsApp/Wechat:0086-13392157135
Email:[email protected]
