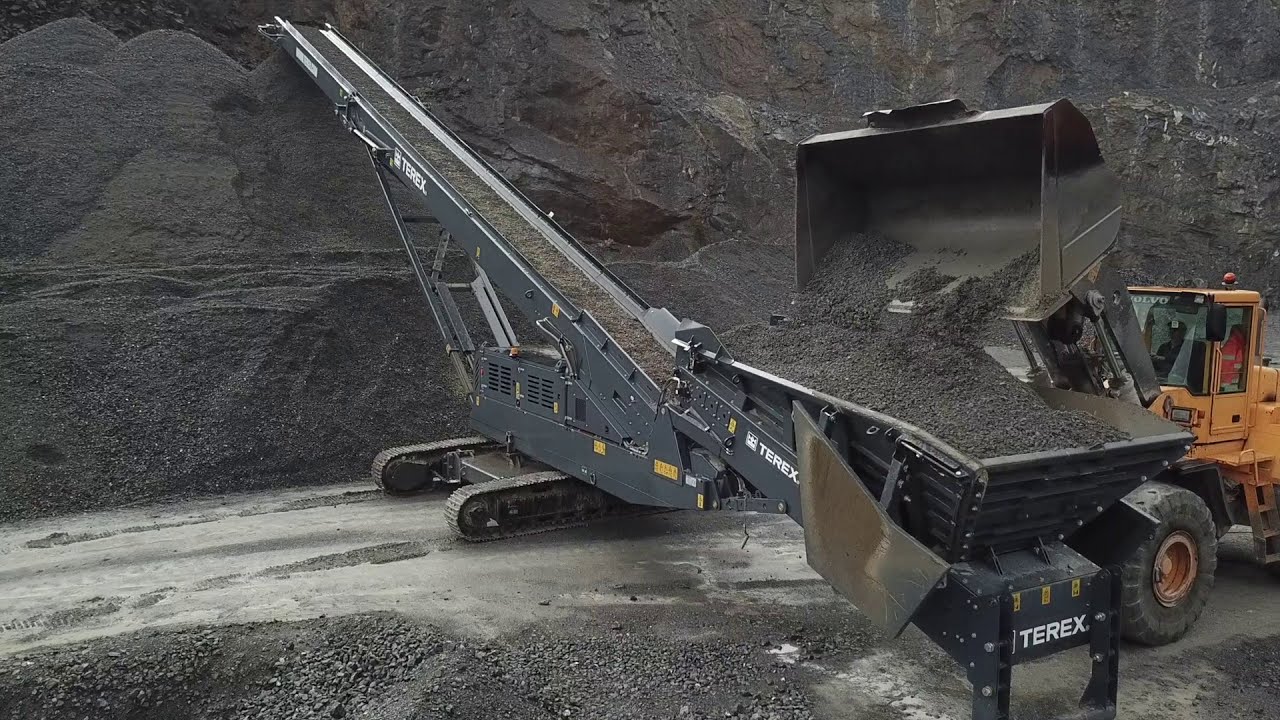

Скачать или смотреть Terex Finlay TF-75L Orbital Conveyor

The Terex® Finlay TF-75L low level feeder has been designed to maximize productivity, enhance efficiency and reduce on site operational costs in a wide range of applications and feed material types.

The large 7m3 (9.2yds3) hopper with a feed in height of 1900mm (6’ 3”) and width of 3500mm (11’ 5”) enables low level feeding directly from excavators, grab cranes, and wheel loaders compared to standard high level feeders. For onsite safety and quick setup the hopper is fitted as standard with hydraulically folding sides.

Tracked mobility and the ability to feed material from all three sides enable the TF-75L to be easily incorporated into open and closed circuit static and mobile crushing and screening circuits.

For crushing and screening applications the machine can be used for a ‘metered or controlled’ feed of material. The machine can also be used to feed auxiliary equipment, connect to additional conveyors for transferring materials and to directly load / unload ships, trucks and rail wagons.

The machine is available with an orbital centre mounted slew bearing that enables 360° rotation and movement of the hopper/feeder to enhance on site mobility.
