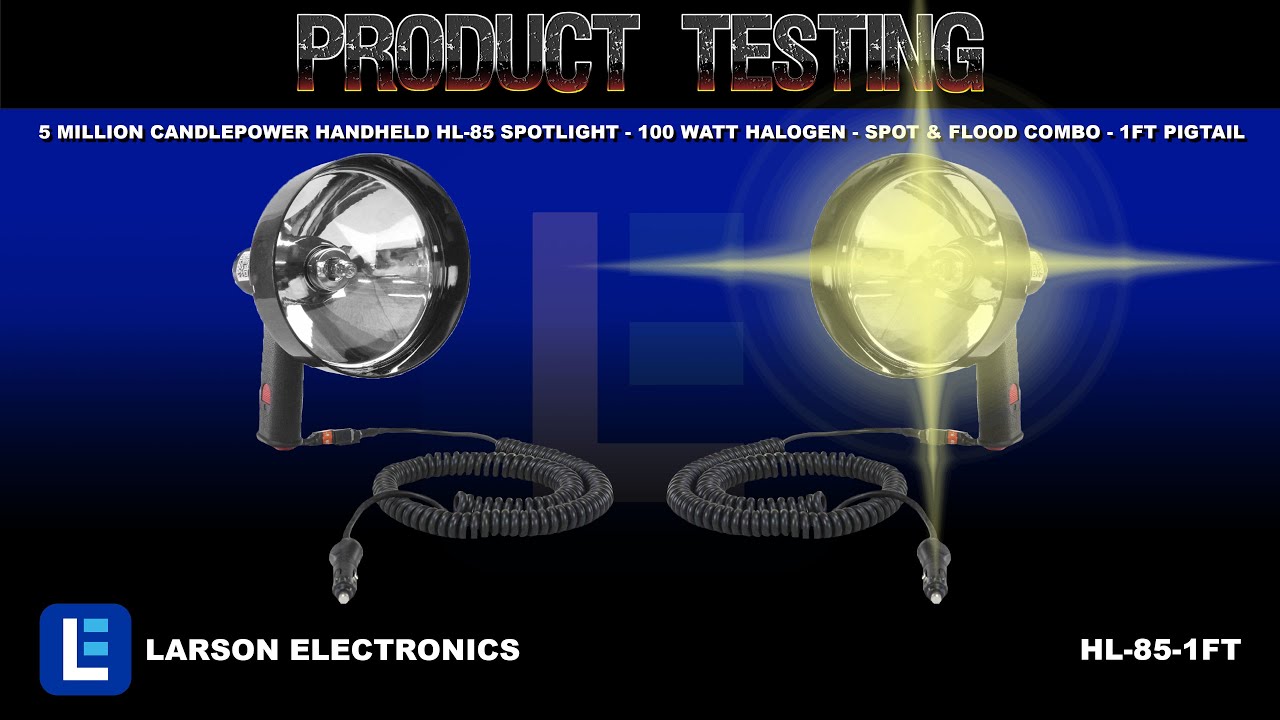

5 Million Candlepower Handheld HL-85 Spotlight - 100 Watt Halogen - Spot & Flood Combo - 1ft Pigtail
https://www.larsonelectronics.com/pro...
The HL-85-1FT is a 100 Watt Halogen handheld spotlight that emits 1800 lumens. Its ideal applications would include recreational boating, fishing, hunting, search and rescue and security. This spotlight produces a beam capable of expanding to 900 feet. This lightweight, ultra rugged, ergonomic spotlight operates on 12 volts or 24 volts DC and can be used as a spot or flood light. This light is equipped with a 1` pigtail with positive and negative leads for connecting user provided cable to the light.
The handle and lamp housing support of the HL-85-1FT are made from high impact nylon. The polycarbonate lamp housing is thick and contoured for extra support. The 16 gauge internal wiring and connectors are simple and well constructed. The industrial grade, tungsten filament bulb is designed for 1200 hours of life while producing over 5 million candlepower in this configuration. The impact resistant polycarbonate lens is lightweight, shatter resistant and thermal resistant. The materials used in the construction of the HL-85-1FT handheld spotlight are UV, water, impact and chemical resistant.
The reflector is uniquely shaped and shallow, capturing and focusing the light efficiently and effectively. Combined with a convex lens and inset lens positioning, this light optimally and efficiently captures and projects the right amount of light where the operator wants it. The position of the bulb and the shape of reflector are different than most handheld lighting products. The difference is in how much of the emitted light is captured and focused. In many ways, light shares the properties of water.
The operator can lift the locking tab behind the lamp housing and rotate the lamp head. Rotating the housing enables the operator to adjust the beam from a wide, soft flood pattern to a tight, spot beam that goes out to 900 feet. Continued rotation to the extreme disconnects the lamp head from the handle assembly, enabling the operator to replace the bulb when necessary.
The HL-85-1FT is an ultra-durable handheld spotlight that weighs only 13 ounces, which makes it easy to carry and operate. The unit is balanced for ergonomic comfort and handling. The handle is 4.5 inches long, 1.5 inches deep and 5/8 inch thick, making it easy to hold, even in wet, slippery conditions.
We have changed the wiring and the plug on the current model. Internally, we added 2 strain reliefs and a wire tie. Externally, we modified the coil cord setup. The previous coil cord had a multi-layer jacket. We have switched to a single SPT-2 jacket, bringing the cord all the way into the Deutsch plug terminals. This should prevent any failure issues that occur when the operator is compelled to stretch the cord beyond its limit.
A 3/8-16 inch brass nut fixture is embedded in the base of the handle enabling the operator to mount a magnetic base, like our MM-2 or MM-5 to the light. Alternatively, the operator can tripod mount this light as well. It also comes equipped with a lanyard attachment at the top of the handle for users that want to secure the light in the event they lose their grip.
A 2" pigtail with a weatherproof, 2 pin Deutsch connector quick disconnect which easily and securely attaches and detaches power cables from the spotlight. An included male pigtail equipped with 1` of two-connector cable allow operators to connect positive and negative from customer provided power sources to this quick disconnect for hard wire applications or customer provided cabling.
This spotlight can be configured to operate on 12 volts at 8.5 amps or 24 volts at 4.25 amps. This is done by using a 12 volt, H3 bulb or 24 volt, H# bulb. H3 replacement bulbs are readily available at any automotive store in the US. All consumer vehicles use 12 volts DC. Most military vehicles use 24 volts DC. There is no difference in light output, its only the matter of choosing the right voltage for your vehicle.
We also now offer a 5 inch diameter and a 7 inch diameter lens. Although the difference is not significant, the 5 inch lens produces a tighter spot beam while the 7 inch lens produces a wider coverage flood pattern
Note on Voltage: Most vehicles are 12 Volt DC. 24 Volts DOES NOT mean more power. Running a 24V light from a 12V power source will result in a very dim or non-functioning light, and may cause internal damage to the light as well. For common vehicle use, please order 12V.
