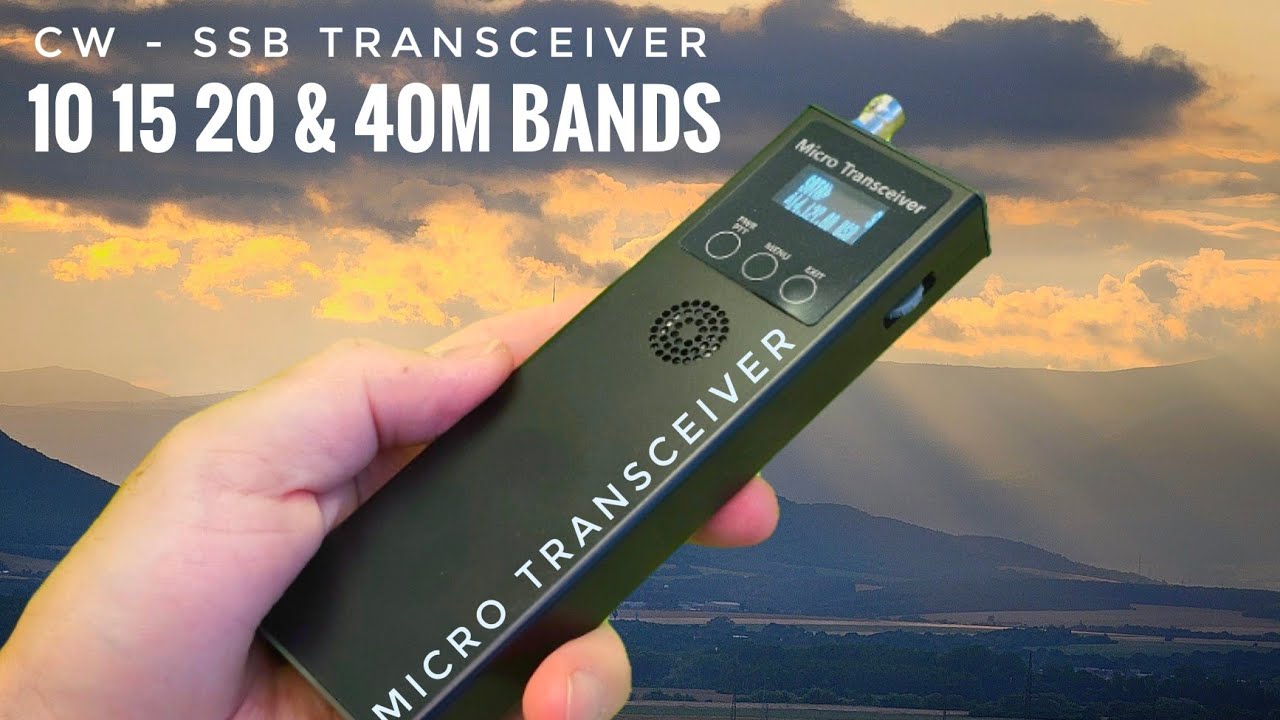

Скачать или смотреть Micro Pocket SSB-CW HF Transceiver (Handheld QRP 4-Bander with Built-in Battery)

This Transceiver was built on the original design by Manuel DL2MAN and Guido PE1NNZ as the uSDX project, whose development was terminated due to commercialization by Chinese manufacturers. The successful continuation of the project under the new name (tr)uSDX can be found here: https://dl2man.de/
Buy the original (tr)uSDX transceiver here, from a seller who is safe and fully approved!:
AliExpress Link - UpTech Store: https://s.click.aliexpress.com/e/_c4l...
eBay Link - uellyqh store: https://www.ebay.com/itm/134061787836
Online Shop Link - newdiytech.com: https://newdiytech.com/products/trusd...
Amazon (US) Link: https://www.amazon.com/dp/B09YH2V2ZP


This MICRO POCKET SSB TRANSCEIVER link to purchase: https://s.click.aliexpress.com/e/_Exl...
SPECIFICATIONS:
Battery: 1 x rechargeable lithium battery 1100mAh, shipped with built in battery. In RX mode it can be used for about 10 hours.
Display: Monochrome OLED
Model: Portable Handheld QRP Transceiver
Receiving Frequency range: 0.5MHz-30MHz. Theoretically, it can get to the upper limit of SI5351. (Since the product configuration of LPF is 10-15-20-40M four bands, the user needs to pair another LPF to suppress stray harmonics)
Transmission Frequency range: 1.8-30MHz (Band Pass Filters for 40-20-15-10M bands)
Working Mode: SSB(LSB/USB), CW(with decoder)
Minimum Step Size: 10Hz
Maximum Step Size: 1MHz
Antenna Impedance: 50 Ω
Working Temperature Range: 0℃ - +50℃
Current Consumption for RX: 130mA
Current Consumption for TX: 1A, maximum.
RF Output Power at 13.8V DC: 0.1-5W for SSB and CW
Ext.Power Supply: Output: 12V 1A
Dimensions: Approx. 50 x 20 x 180mm or 1.97 x 0.79 x 7.09in

NOTE: This video is not sponsored! The product is properly purchased.
