Wound Rotor Induction Motors: A Powerful Solution for Diverse Applications
Understanding Wound Rotor Induction Motors
Wound rotor induction motors are a versatile type of electric motor that offers several advantages over standard squirrel-cage induction motors.
They are particularly well-suited for applications that require adjustable speed control or high starting torque.
Key Components of a Wound Rotor Induction Motor
Stator: Similar to a squirrel-cage motor, the stator houses the primary winding.
Rotor: Unlike a squirrel-cage rotor, the wound rotor has a three-phase winding connected to slip rings and brushes.

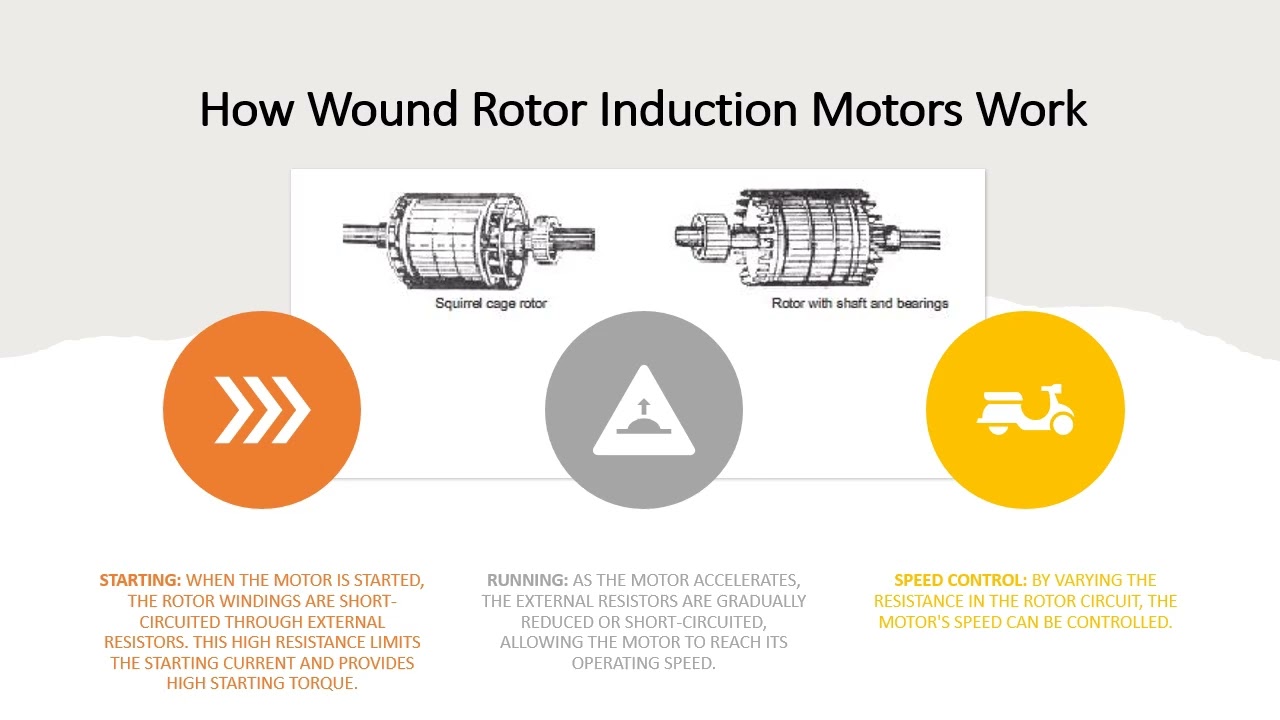

How Wound Rotor Induction Motors Work
Starting: When the motor is started, the rotor windings are short-circuited through external resistors. This high resistance limits the starting current and provides high starting torque.
Running: As the motor accelerates, the external resistors are gradually reduced or short-circuited, allowing the motor to reach its operating speed.
Speed Control: By varying the resistance in the rotor circuit, the motor's speed can be controlled.
Advantages of Wound Rotor Induction Motors
High Starting Torque: The high resistance in the rotor circuit during starting provides excellent starting torque.
Adjustable Speed Control: By varying the resistance in the rotor circuit, the motor's speed can be adjusted.
Smooth Starting: The gradual reduction of resistance during starting ensures smooth acceleration.
Reduced Starting Current: The high resistance limits the starting current, reducing stress on the power supply.
Improved Power Factor: By adjusting the rotor resistance, the power factor can be improved.
Applications of Wound Rotor Induction Motors
Wound rotor induction motors find widespread use in various industries due to their versatility and performance advantages. Some common applications include:
Centrifugal Pumps: Used in water pumping, oil pumping, and chemical processing.
Fans and Blowers: Employed in ventilation systems, cooling towers, and industrial processes.
Crushers and Grinders: Used in mining, cement production, and material processing.
Hoists and Cranes: Utilized in construction, manufacturing, and material handling.
Compressors: Employed in refrigeration, air conditioning, and industrial processes.
Mixers and Agitators: Used in chemical processing, food processing, and pharmaceutical industries.
Limitations of Wound Rotor Induction Motors
While wound rotor induction motors offer numerous advantages, they also have some limitations:
Complex Construction: The presence of slip rings and brushes adds to the complexity and maintenance requirements.
Lower Efficiency: Compared to squirrel-cage motors, wound rotor motors may have slightly lower efficiency due to losses in the rotor circuit.
Higher Cost: The additional components and complexity of wound rotor motors can increase their cost.
Conclusion
Wound rotor induction motors are a valuable tool for engineers and technicians seeking reliable and efficient solutions for various applications.
By understanding their principles of operation and advantages, you can effectively utilize these motors to meet specific requirements.
