🚀 Unlocking the Power of AI and IIoT with Node-RED in the Smart Hot Food Vending Machine Graduation Project

I’m excited to reveal the full IIoT system and Node-RED dashboard for my graduation project, the Smart Hot Food Vending Machine, showcasing the integration of Industry 4.0 and IIoT technologies.

🔗 Connectivity:
Utilized HTTP Request and MySQL Database for data interchange with Raspberry Pi 4.
Implemented Modbus Communication for interaction with the Modicon M200 PLC.

🎨 UI/UX Design:
Special thanks to my friend, Mahmoud Wael, for the UI design with Dark Mode, Light Mode, and Default Mode options. Explore the UI designs here: [UI Design For Smart Hot Food Vending Machine](https://www.behance.net/gallery/20414.... These designs were implemented using HTML and CSS on the Node-RED dashboard.

After admins log into their accounts on the website, they can access the IoT dashboard through the admin dashboard to manage and monitor the system efficiently.

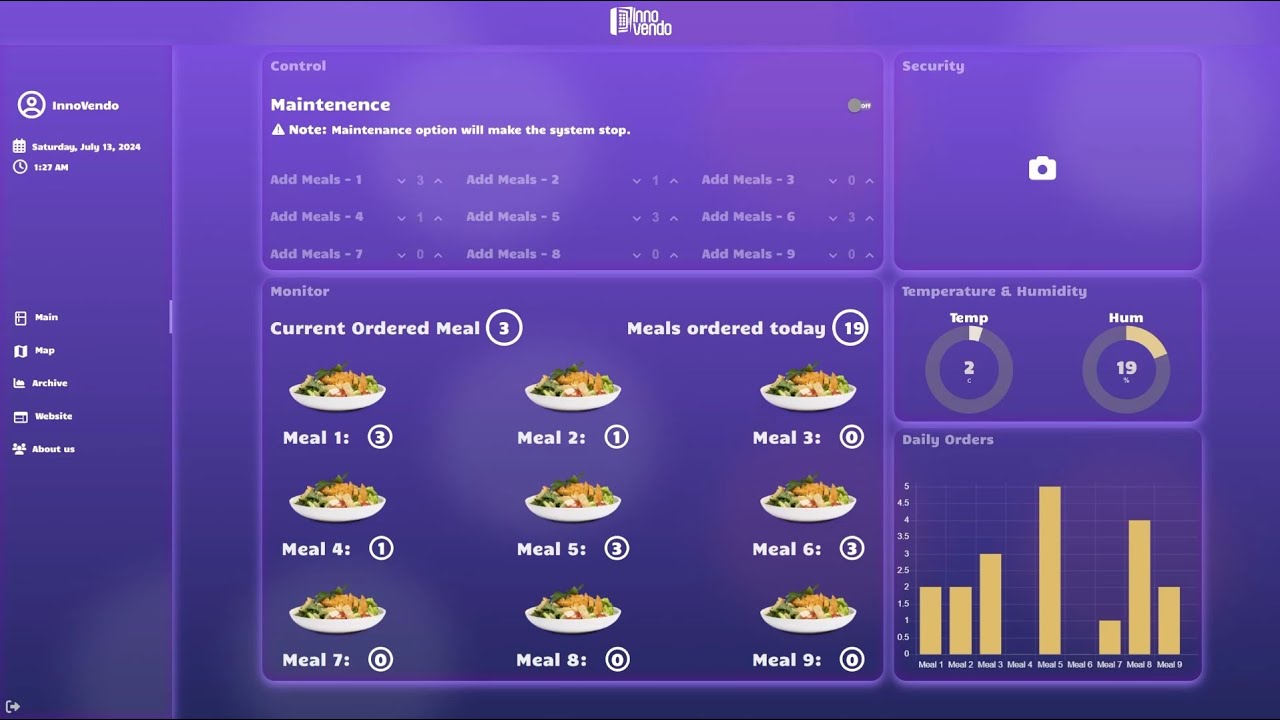

🖥️ Node-RED Dashboard:
The dashboard features 5 main tabs:

1. Main Tab:
Allows for maintenance mode, refilling the machine, monitoring the current meal, daily orders, and cooling room temperature and humidity.
Includes a security camera feed.
Features a logout button.

2. Map Tab:
Provides a comprehensive view of all machines owned by the admin, with daily order charts for each location.

3. Archive Tab:
Offers extensive historical data analysis, including sales, Room1 temperature & humidity, and security camera footage.
Data management features include:
📅 Selecting start and end dates for data review.
🔍 Choosing specific datasets like Sales, Temperature & Humidity, and Security Camera footage.
📊 Viewing tables and charts for visual analysis, including daily sales trends and environmental conditions.
📄 Downloading reports in CSV or PDF format, featuring AI-powered Performance Insights and Recommendations, including sales data analysis, temperature and humidity trends, and security camera records.
📧 Sending reports directly via email.

4. Website Tab:
Directs to the official website for additional resources and support.

5. About Us Tab:
Provides information about the InnoVendo team and the project, as presented on the website.

Stay tuned for the full project reveal and upcoming projects!
