Reference Use Only - Deere 4050, 4250, 4450 with ZF Axle

PowerShift Transmission
4050 (SN - 006891) PST
4250 (SN - 012521) PST
4450 (SN - 023748) PST
QuadRange Transmission
4050 (SN - 007007) QRT
4250 (SN - 012501) QRT
4450 (SN - 012755) QRT
For John Deere Axle Upgrade see Part FA1055 or FA1255

Axle Model ZF APL3054, APL-3054
Axle Style One Piece Axle
ZF MFWD Fender Mounts $1,000 set
Right Hand R75319
Left Hand R75320
Bolts 19M7753 (8 - M12 X 70mm)

BOM:
Axle Housing R83522 $5,000
Steering Stop R76303 (Left Hand) $250
Steering Stop R76304 (Right Hand) $250

Differential Assembly (PowerShift Only) $9,500
Differential Housing R75389 $2,500
Nuts L37763 Included with R75389
Ring and Pinion RE12133 (PST) $4,000
Yoke R78117 $750
Case AL35813, RE13713, RE15386 $5,000
Gears R75843, R75844, R75845

Axle Shafts RE29010, RE23189, RE10209 $2,500
Short Axle Shaft L40601, R89642 $500
Yoke L40602 $500
Long Axle Shaft L40600, R89640 $1,000
U-Joint AL38516, RE23191 $125

Steering Arms
Left Hand Steering Arm R78708 $500
Right Hand Steering Arm R78707 $500
King Pin R75849 (Axle SN - 015657) $125
King Pin R82204 (Axle SN 015658 -) $125
Lower Cover R75932 $500
Left Hand Steering Knuckle R83521, R78016 $1,500
Right Hand Steering Knuckle R83520, R78015 $1,500
Tie Rod RE12324
Inner RE12325
Tube R78024
Outer RE12326

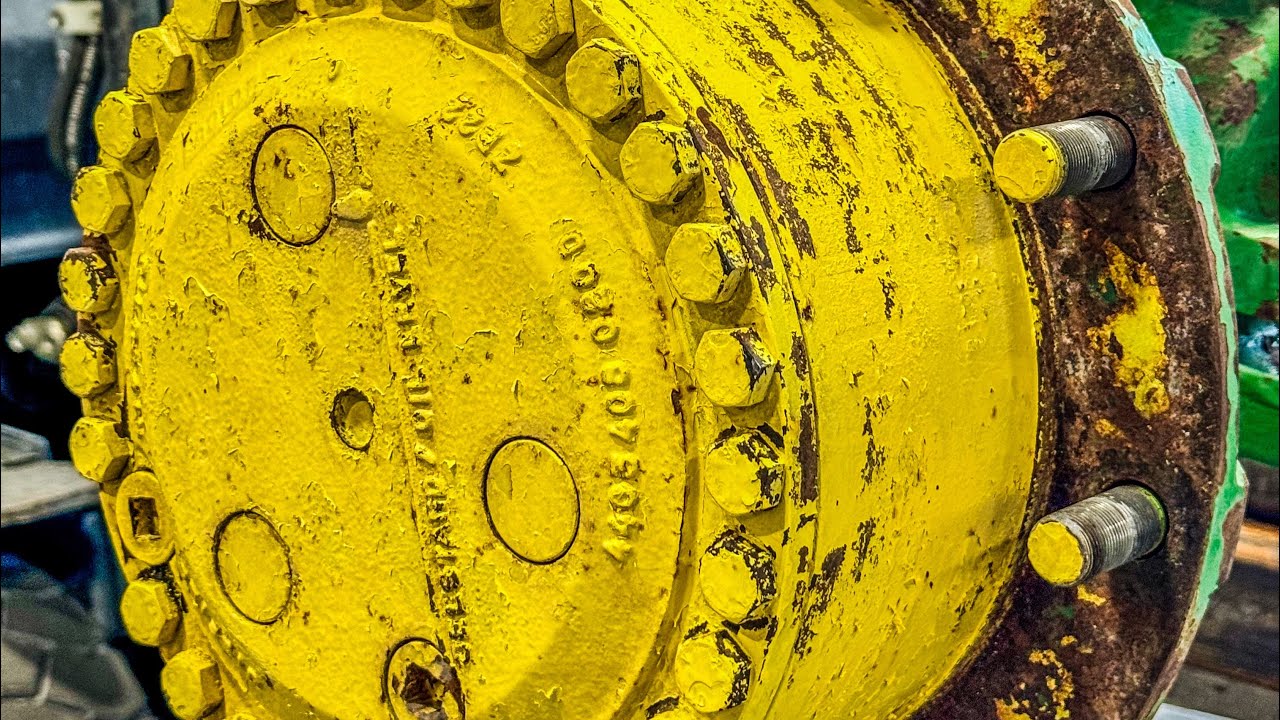

Final Drive
Spindle R75855, R83483
Hub R75502
Ring Gear R82538, R75617, R79764
Pins R75863, R79765
Carrier R75859, R82202
Planetary Gears R75616
Pinion Gear R75614
