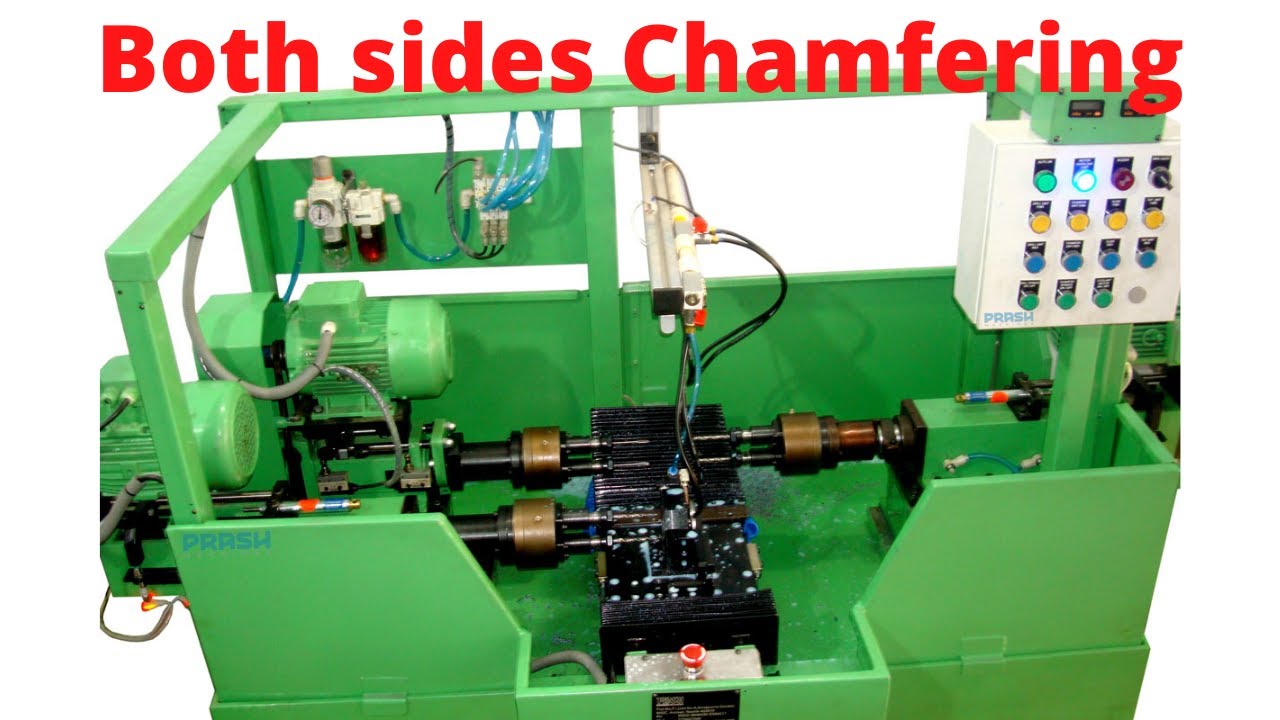

Скачать или смотреть Drilling Tapping and Chamfering Special Purpose Machine

Special Purpose Machine with Pneumatic Drilling Heads, Multi Spindle Drilling Heads and Pitch Control Tapping Head with Fixture mounted on Pneumatic Slide.

Pitch Control tapping heads assures quality gauge qualification of tap to be done.
These types of Special Purpose Machines for machining are used for productivity improvement, improved tool life and reliable quality without skilled workforce.
Pneumatic Drill Heads are very useful for light duty applications and requirement of fast rapid movement of tool to reduce cycle time.
Multi Spindle Drilling Heads and Multi Spindle Tapping Heads can be fixed or adjustable center distance type. Fix type Multi Spindle Heads are more rigid and precise as compare to adjustable because setting error.
For repeated progressive strokes i.e. peck cycles Servo Drilling Heads are the option. Servo Drilling Machines can be Multi Spindle type.
Pitch Control tapping heads assures quality gauge qualification of tap to be done.
Low cost Pneumatic Gang Drilling Machines or Hydraulic Gang Drilling Machines are used for multiple operations to be carried out and productivity improvement.
The range of Special Purpose Machining machines covers variety of operations like reaming, boring, milling and chamfering.
The constructions of these machines are rotary indexing, slide or multi stations type.
Progressive boring is not possible as these Special Purpose Boring Machines can perform single stroke boring. This is also the case for Special Purpose Milling Machines.
We provide radial float and length compensation for all types of Pitch Control Tapping to take care tool breakage in the case of misalignment and less depth or pre hole absent. The Lead screw and Nut assembly as per pitch are quick changeable.
TR type spindle adaptors take care of tool wear length compensation and very useful feature in case Multi Spindle Drilling Machine.
Auto Lubrication is advisable where there are LM Guide Slides in Drilling or Tapping Special Purpose Machines.
Auto Coolant arrangement with sufficient pressure increases the tool life also the quality of machining in Special Purpose Machining Machines.
Table rigidity plays very important role in heavy Hydraulic Drilling Machines as well Multi Spindle Drilling Machines. The table must be stress relieved to ensure reliable accuracy of the machining machines.
PLC control panel facilitates flexibility in operational sequence or safety interlock in any Special Purpose Machines. HMI is useful for changing setting parameters, error indications, tool life counter or cycle counter.


Machine working: There three stations one for drilling, second for chamfering and third one is for tapping. Pneumatic slide transport the part from one station to another. Part clamping is mechanical. Multi Spindle drilling Heads are gear driven. Ratio of Multi Spindle tapping Heads is maintained 1:1. Precise locator resting and resting pins are provided for location and fitment of the component. Burr removal pneumatic compact slide is mounted on fixture.
