Key Specifications
Ceiling Fan Model - Orient Summer Cool
Manufacturer - Orient General Industries Ltd. India
Sweep Size - 56" Inch (1400 mm)
Voltage - 220/240 AC Volts
Frequency - 50 Hz ~
Phase - 1 PH (Single Phase)
Power Consumption - 65 Watt
Voltage Rating - .0  to .1 Ampere Current Load
Capacitor -  2.5  MFD (microfarad μF)
Airflow - Fans Delivering Over - 7000 CFM
(Cubic Feet Per Minute)
.

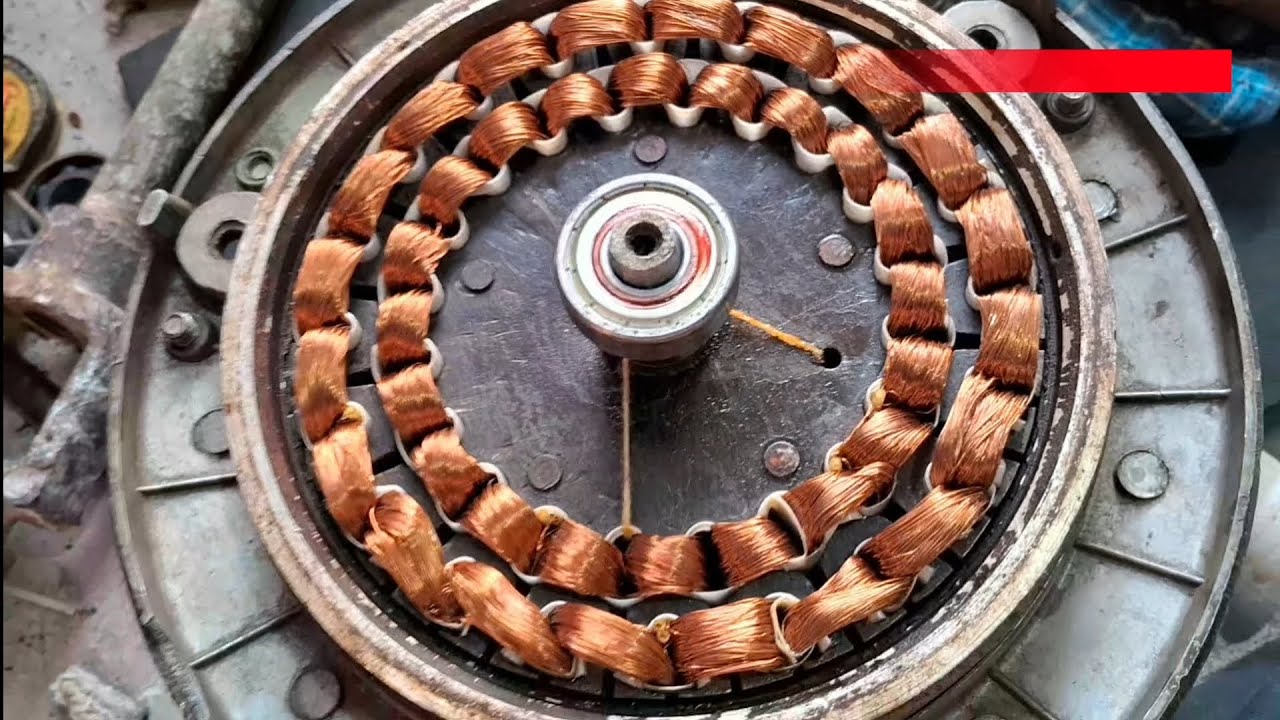

Winding Details
Stator Size - 20 Mm
Slots - 20 + 20
Copper Wire - SWG 36
Starting Wire Gauge SWG - 36
Starting Coil Turns - 280
Running Wire Gauge SWG - 36
Running Coil Turns - 330
Totle Wire Weight - 260 Gram
.
Polyester Electrical
Insulation Film - 7 Mils / 180 Micron
(7 Number Winding Paper)
.
Ceiling Fan Wiring Connection
1. Two Black ⚫️ Wires Starting
Two Red 🔴 Wires Running
2. One Red 🔴 Wire + One Black ⚫️ Wire
= Common Wire
3. One Red 🔴 Wire and One Black ⚫️ Wire
Joint Two Wire In Capacitor's Two Wire
4. 🔴⚫️ Common Wire Connect - Neutral Wire
🔴 One Red Wire + Capacitor Wire
Contact - Phase Wire (Line)
5. Result On Running Mode
= Clockwise
6. Resul  On Running Mode =
Anticlockwise Direction
7. Change Common's Red 🔴 + Black ⚫️ Wire
Only 🔴 Red Wire Exchange With
Capacitor's Red 🔴 Wire
