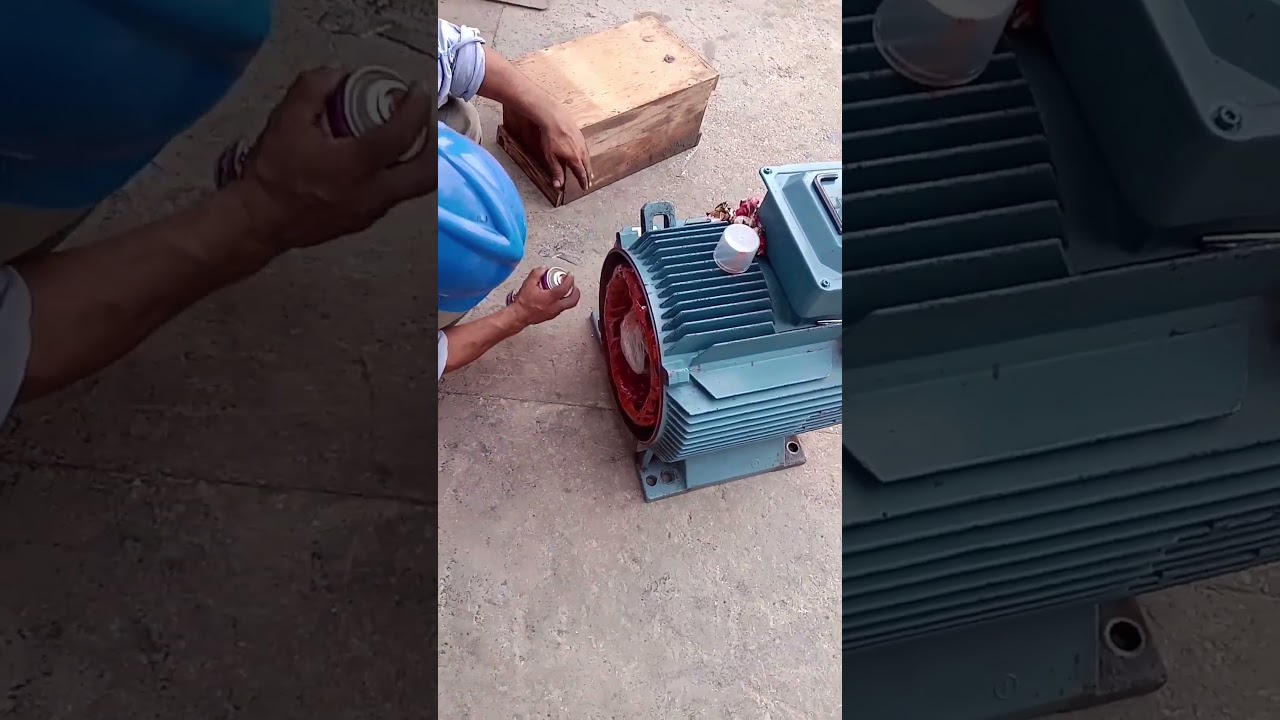

Скачать или смотреть spray varnish | Induction motor winding

An induction motor is a type of AC (alternating current) motor that is widely used in various applications including industrial machinery household appliances and electric vehicles. It is known for its simplicity robustness and efficiency.

The working principle of an induction motor involves electromagnetic induction. It consists of two main parts: the stator and the rotor. The stator is the stationary part of the motor while the rotor is the rotating part.

The stator contains a set of evenly spaced windings usually made of copper wire which are connected to an AC power supply. These windings produce a rotating magnetic field when the power supply is applied. The number of windings and their arrangement determine the characteristics of the motor such as its speed and torque.

The rotor on the other hand consists of a cylindrical core made of laminated iron sheets. It is either wound with conductive loops or consists of conductive bars that are short-circuited at the ends. This design is called a squirrel cage rotor.

When the motor is started the rotating magnetic field produced by the stator windings induces an electric current in the rotor conductors through electromagnetic induction. This current generates a magnetic field in the rotor which interacts with the stator magnetic field. As a result a torque is produced causing the rotor to rotate.

Due to the design of the rotor the induced current flows in short-circuited loops or bars creating a magnetic field that opposes the stator magnetic field (Lenz's law). This interaction causes the rotor to follow the rotating magnetic field of the stator resulting in the motor's rotation.

The speed at which the induction motor rotates is slightly slower than the speed of the rotating magnetic field produced by the stator. This difference in speed known as slip allows the motor to develop torque and efficiently convert electrical energy into mechanical work.

The efficiency of an induction motor can be improved by various means such as using higher-quality materials optimizing the design and incorporating variable frequency drives (VFDs). VFDs can control the speed and torque of the motor by adjusting the frequency and voltage of the power supplied to the stator windings.

In summary an induction motor works by utilizing electromagnetic induction to generate a rotating magnetic field in the stator which induces currents in the rotor. The interaction between the magnetic fields produces torque causing the motor to rotate and perform mechanical work.
