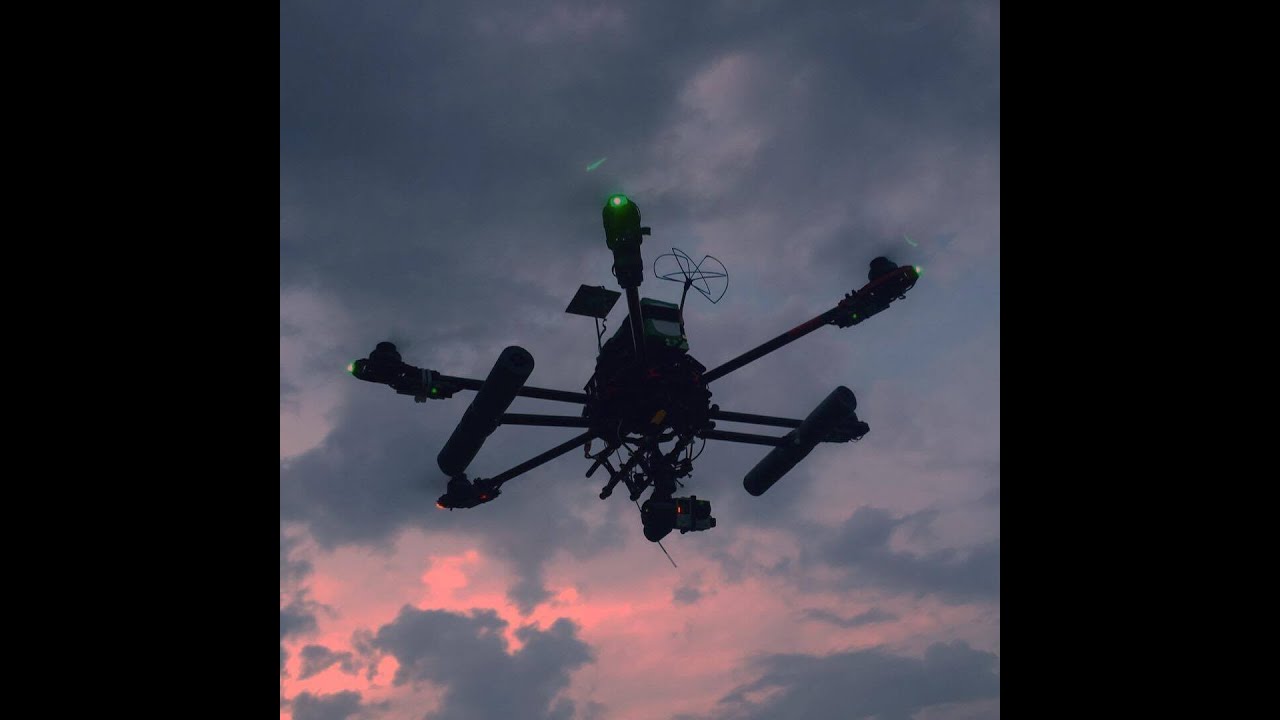

Скачать или смотреть Tarot 680 pro extended = 810

gps hold with 18kmph wind + gains need to be further adjusted as altitude hold is not perfect after pitch then settle (looses altitude) ..

Tarot 680 pro framset TL68P00
extra lower deck (mounted on top) and central battery mount to create triple / quad deck.
extended arms to 810 (2 x (333MM) and 4 x (323mm) !!!! dont buy 6 of the same arms !!!
central and extended gimbal mounts to achieve unobstructed 360 pan
Tarot retracts TL8X003 , as these work in conjunction with the Tarot TL8X002)
TL68B08-02 engine mounts for retracts
zeuscam ag4
dji e800 motors
standard e800 props
standard e800 esc's
Tarot zyx-m flight controller
ZYX-OSD TL300C
Custom carbon fibre / wire anti vibration mount for gimbal.
Dragonlink v2 tx
Dragonlink v2 micro rx
RMRC - 1.3GHz 400mW vtx
VAS - 1.3GHz Skew-Planar Wheel vtx Antenna RHCP - Right Angle
VAS - 1.3 GHz Pepperbox 13dBic vrx Antenna (RHCP)
RMRC - 900MHz-1.3Ghz v Receiver w/1258 with RMRC Comtech Tuner
Multistar 6S 16000mAh
taranis fr sky x9e (running external dragonlink tx module ^)
- gopro 4 silver with 5,4mm BL-0525MP123IRC-LD lens (vision dimension)

take off weight 4.7 kg
mixed flight time 40 min

gain settings

Basic

pitch 20
roll 20
yaw 20
vertical 30

attitude

pitch 18
roll 15
vertical 20

zyx mounting

MCX 0
MCY 0
MCZ -5

GPSX -13
GPSY 0
GPSZ -33
