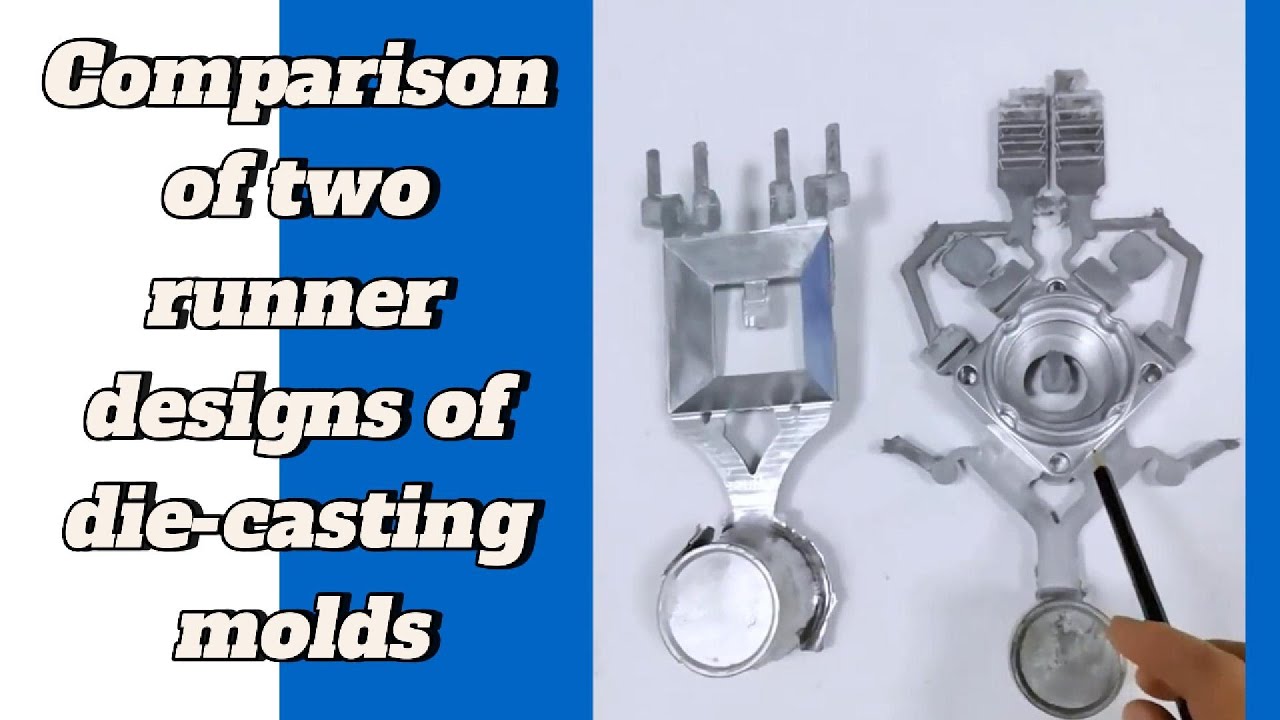

Скачать или смотреть Comparison of two runner designs in die-casting molds.

Hello everyone
Let me share with you today
a similar structure
two different designs
This is a square
This product is actually also a square shape
Both of these are aluminum alloy
Then they are all 120-ton machines.
So which of these two mold designs is better?
Of course this is better!
Because of this
is a diagonal design with bottom feed,
Whether it is side feeding or bottom feeding
This diagonal design
When rushing past
The flow rate of his material
The flow velocity to the end is the same
Then our tail end
Die casting is more beautiful.
This is suitable for that kind of electroplating,
Oxygen, oxidation and other surface treatments
So this design here
That is, he is divided into two parts
walk from here
Then come back here and line up outside.
Then it is easy for problems to arise in this place
You can see these two places
There are two circles.
There is a bit of air entrainment problem
The two strands of material are wrapped like impact waves
So if this is the case
If the surface treatment requirements are not high
For example, doing powder spraying
That's fine
If you want to do electroplating
Then we have to use this
Design it diagonally like this
Feeding is better.
I share it with you today, thank you for watching!
