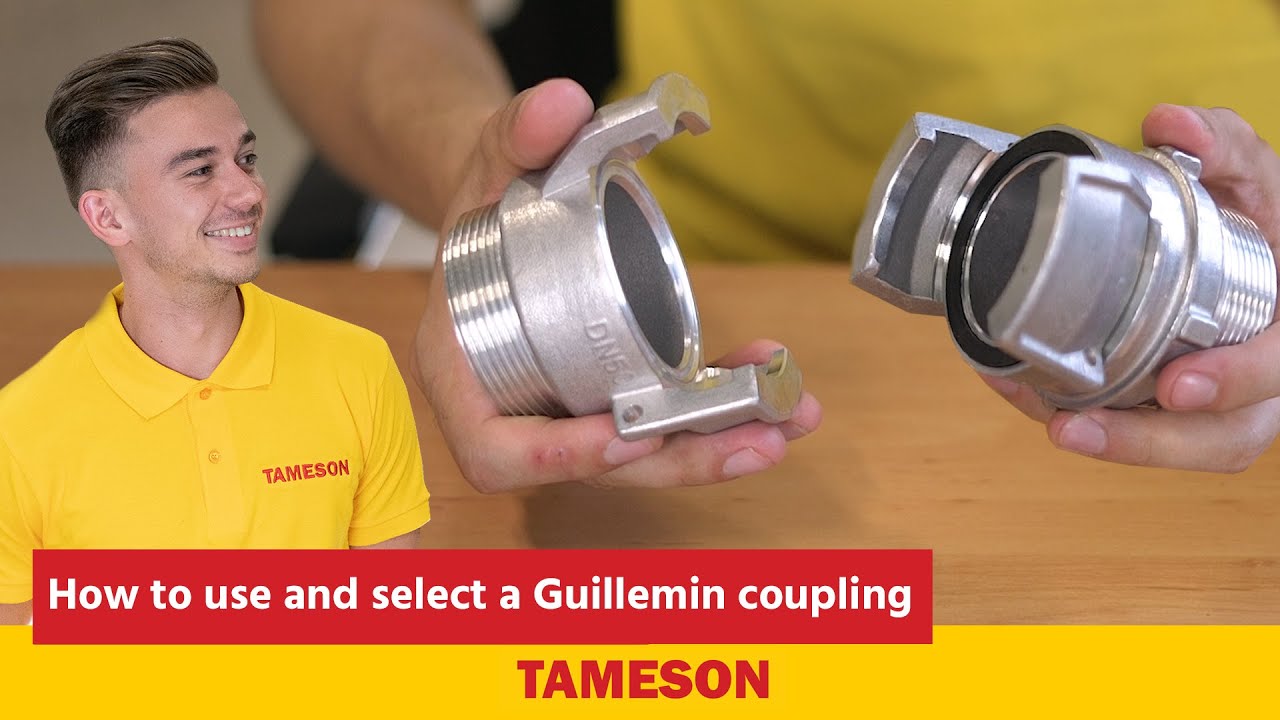

Hi I’m Jochem, an engineer at tameson and today we’re going to talk about Guillemin couplings.
Guillemin couplings are widely used for tanker trucks, silos, and agriculture, especially in the Netherlands, Belgium, and Luxemburg. However, they have wide usage in many industries, including refineries and construction due to their resistance against corrosion, acids, and water.

Guillemin coupling connections are sexless because rather than having a male and a female end connected by for example a screw-type thread, the couplings are identical and can be joined to any other coupling of the same diameter.

To couple a Guillemin connection, the two lugs are joined, you then rotate the locking ring until they are tight, which causes a watertight connection between the couplings. To uncouple them you loosen the locking ring and decouple the connections. The popularity of Guillemin couplings comes from the fact that this coupling process is very easy and fast.

It is important to know that only the coupling with the locking ring is equipped with a soft seal, which can be made out of FKM, PTFE, or NBR. Only one coupling needs to have the locking ring and for fixed installations typically there isn’t a locking ring. It is possible to get a tighter seal between the couplings using a Guillemin wrench, also called a key, to tighten the closure ring.

The couplings come with different hose connections. Common connection types are hose pillars, threaded connections, and flanges. Additionally, they come in different materials and seals. Most commonly stainless steel with FKM sealing and aluminum with NBR sealings. So there is always a coupling suitable for your application!

If you enjoyed this video, please click the like button and subscribe for more videos! And if you have any questions about Guillemin couplings or any other product, please contact me or someone else from tameson.
-------------------------------------------
