How to Measure & Identify Your Trailer Suspension | Equalizers, Shackles, & Spring Bolts

Need to replace or upgrade your trailer’s suspension but not sure how to measure the components? In this video, we walk you through how to properly measure and identify suspension parts, including equalizers, shackles, and spring bolts. Getting the right measurements is crucial for a correct fitment of your axles and preventing premature wear on your suspension system.

What You’ll Learn:
How to measure equalizers (center hole to center hole)
How to find the correct shackle length for your trailer
How to measure spring bolts for proper fitment
Common mistakes to avoid when measuring trailer suspension

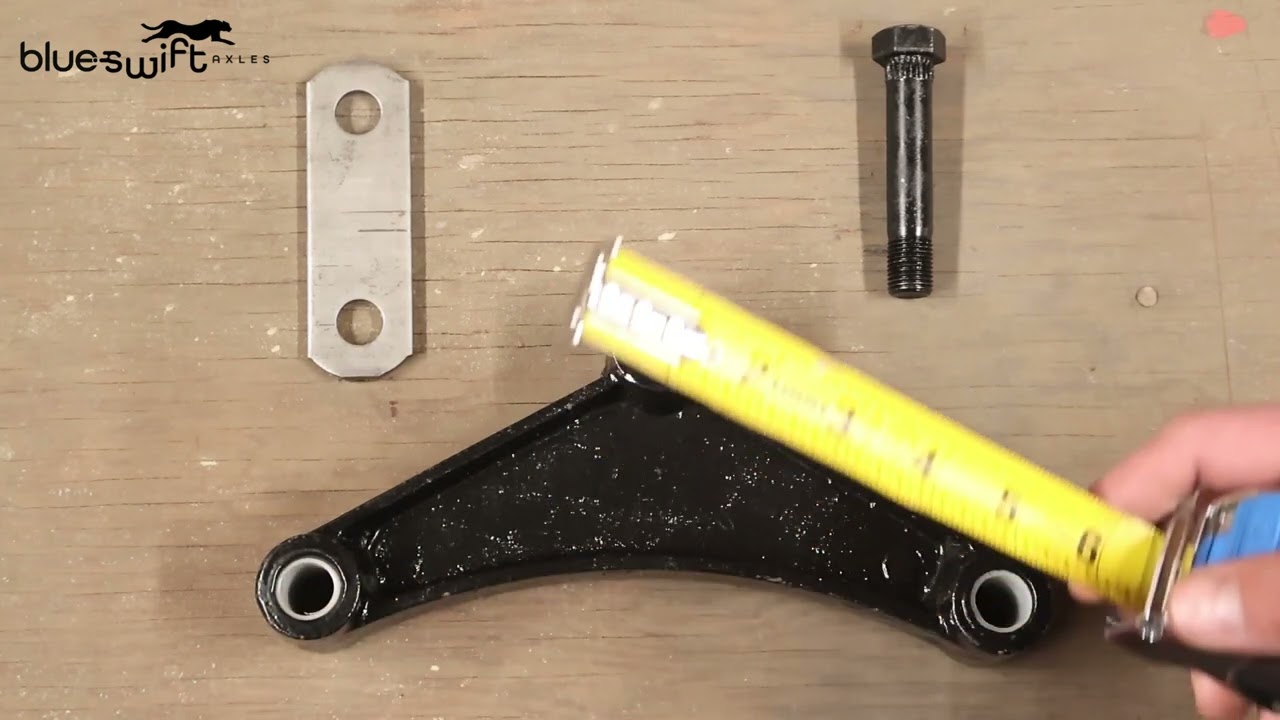

When measuring a trailer equalizer take your tape measure and start from the center of the left bushing eye. Don not measure to the top eye that connects to the hanger but to the right eye directly across from the one you started at. Measuring to the center of this busing as well you can correctly identify an equalizer with this measurement. To put it simple measure from the center of both bushing sockets that connect to the shackles.

When measuring a trailer shackle measure from the center of bolt hole to the center of bolt hole. This measurement will allow for a correct replacement to be identified. The reason for measuring from the center of these holes is because it's more important to have the same distance between the eye of the spring and the equalizer, than having the same length of shackle but the bolt holes are spaced differently.

When measuring a bolt for your trailers suspension measure the total length starting from the top bottom of the threads and stopping at the top of the head. Bolts that are right around 2 inches in length are always found on double eye spring suspension set-ups. They can also be found on slipper spring suspension. Bolts that measure 2-1/2" are only found on slipper spring suspension set-ups.

Proper suspension maintenance keeps your trailer riding smoothly and safely. If you need replacement equalizers, shackles, or bolts, check out Blueswift Axles—America’s #1 trailer axle and parts store!

Timestamps
00:00 // Measuring a Equalizer
00:56 // Measuring a Spring Bolt
01:24 // Measuring a Shackle
