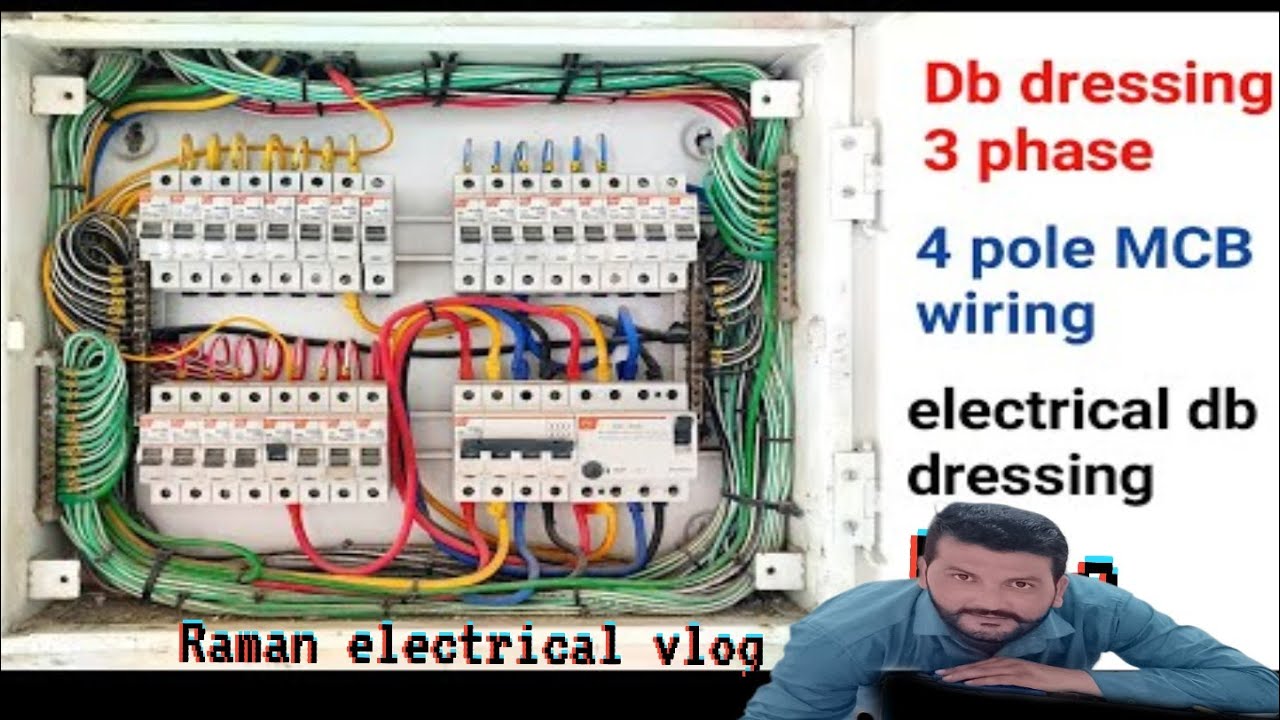

Скачать или смотреть ▶️ 3- phase DB dressing Live 4 - pole MCB wiring ✅

▶️ 3-phase DB (Distribution Board) dressing ka matlab hai DB ke andar wiring ko systematic aur safe tarike se arrange karna,✅ jisse circuits clearly samajh aayein aur maintenance easy ho. Jab aap Four Pole TPN (Triple Pole with Neutral) MCB ya MCCB ka use karte hain, to aapko neutral ke saath 3 phases (R, Y, B) handle karne hote hain.

Yahaan main aapko step-by-step guide de raha hoon 3-phase DB dressing ke liye with Four Pole TPN:


---

🧰 Required Items:

3-phase Distribution Board (DB)

Four Pole TPN MCB (Main)

SP/DP MCBs for outgoing circuits

Neutral & Earth busbars

Ferrules, cable ties, cable lugs

Phase indicators (Red, Yellow, Blue)

Proper wire size (as per load)

Insulation tape, screwdriver, wire stripper, etc.



---

⚙️ Step-by-Step Dressing Guide:

1. Mounting the TPN MCB

Install Four Pole TPN MCB as main incomer at the top of the DB.

Connect incoming 3 phase wires (R, Y, B) and Neutral from the mains to the input terminals of the TPN.


2. Outgoing Connections from TPN

From the output of TPN:

Take 3 phase wires (R, Y, B) and Neutral.

Distribute them to busbars or directly to outgoing MCBs.



3. Busbar Connections

Use 3-phase copper busbars for R, Y, B phases if multiple circuits are to be fed.

Connect:

R phase to Red Busbar

Y phase to Yellow Busbar

B phase to Blue Busbar


Neutral wire goes to Neutral Busbar.

Earth wire (green) to Earth Busbar.


4. Outgoing MCBs Wiring

Connect outgoing MCBs (SP or DP) to respective phase from busbars.

Example: Lighting to R phase, ACs to Y phase, Sockets to B phase


Take load wires from each MCB to respective circuit.


5. Neutral and Earth Wiring

Connect all load circuit neutrals to the Neutral Busbar.

All earth wires to the Earth Busbar.


6. Dressing and Ferruling

Use ferrules to label all wires (phase, neutral, earth).

Tie and align wires using cable ties and PVC sleeves.

Maintain color coding:

Red – R phase

Yellow – Y phase

Blue – B phase

Black/Blue – Neutral

Green – Earth



7. Safety Checks

Double-check:

Tightness of all connections.

No exposed copper.

MCBs are in correct phase sequence.

Earth continuity.



8. Phase Sequence Check (Optional)

Use a phase sequence meter to verify correct R-Y-B order before energizing.



---

🖼️ Diagram Reference (Text Form):

Main Incomer:
TPN MCB (4 Pole)
| | | |
R Y B N

↓ ↓ ↓
Busbars: Red, Yellow, Blue
↓
Outgoing MCBs (SP/DP)
↓
Load Circuits

Neutral → Neutral Busbar → All loads
Earth → Earth Busbar → All loads


---

✅ Tips:

Keep R-Y-B phase sequence same throughout.

Avoid crossing wires for neatness.

Leave some slack for future maintenance.



---
