In this video, I demonstrate how to design a sequential car-style indicator system using D flip-flops and an LED array in the Deeds Digital simulator.

🔧 Project Concept:

-The circuit uses D flip-flops to shift the HIGH signal across outputs.
-When LEDs are connected in ascending order (Q0 → Q1 → Q2 → Q3), it simulates a left-side turn indicator.

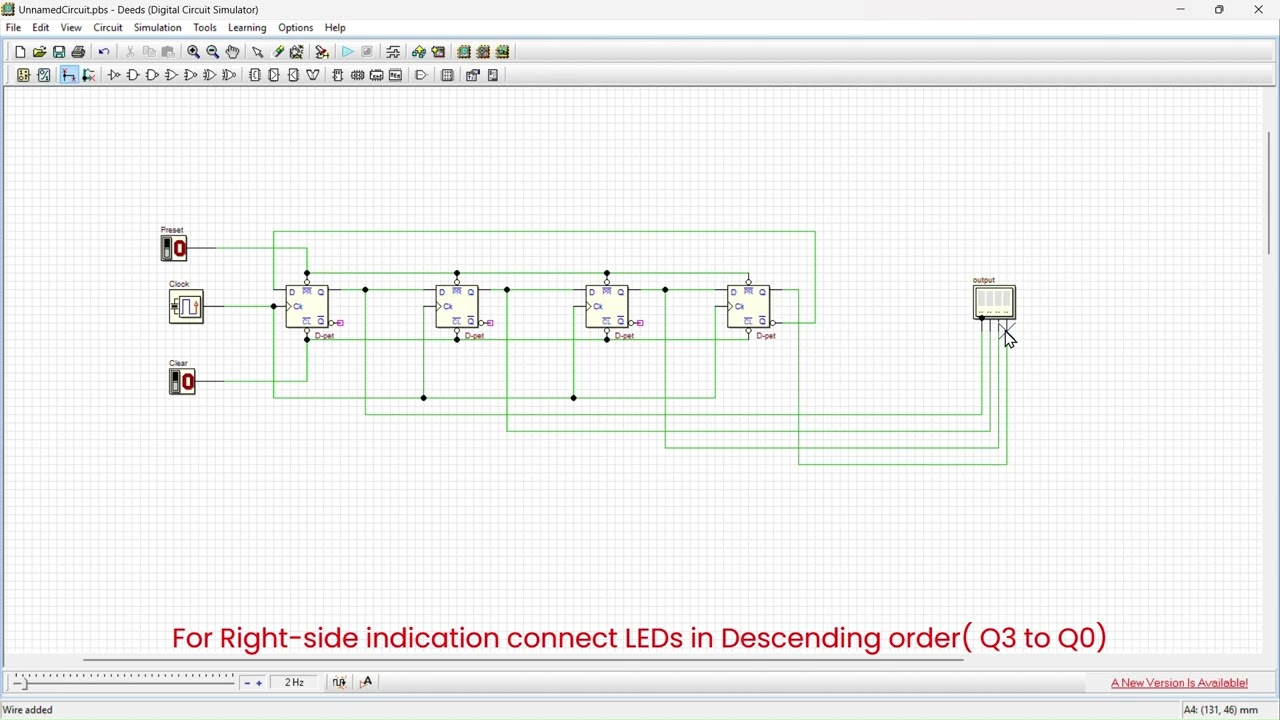

-When connections are reversed in descending order (Q3 → Q2 → Q1 → Q0), it simulates a right-side turn indicator.
-This project reflects real-world car tail light behavior using basic sequential logic.

🎯 Key Learning Points:

-Working of D flip-flops in sequence
-Use of clock pulses to shift output
-Directional control by changing LED connection order
-Visualization of digital logic in Deeds simulator

🎓 Ideal for:

-Digital Electronics projects
-Engineering students
-Logic design practice
-Sequential circuit understanding

📌 Don’t forget to watch till the end to see the reversal effect in action!
