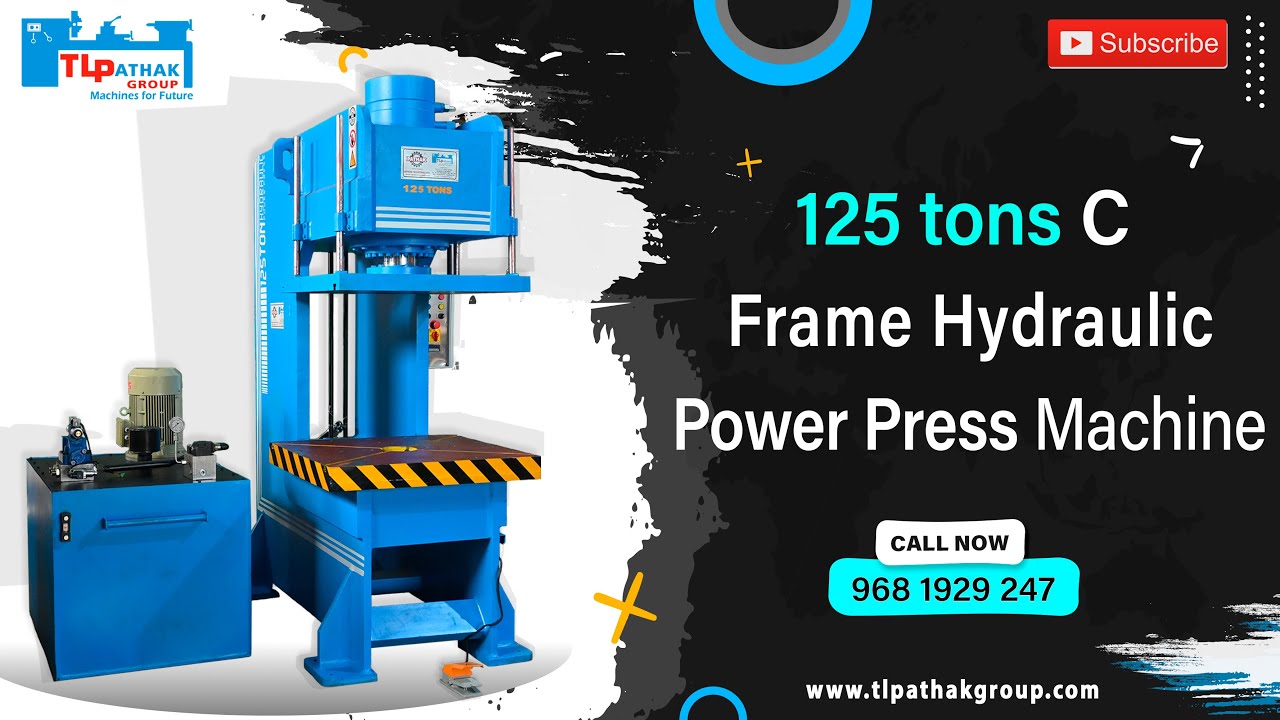

Скачать или смотреть 125Tons C Frame Hydraulic Power Press Machine by TL PATHAK GROUP

The TL Pathak Group 125 Ton C-Frame Hydraulic Power Press is a robust and versatile machine engineered for a wide array of metal forming, pressing, and assembly applications in demanding industrial environments. Built with a focus on durability, precision, and operator safety, this press is a staple in workshops and manufacturing units requiring significant controlled force.

Key Features & Design:

Frame Construction: The defining characteristic is its rigid, C-shaped, stress-relieved, welded steel frame. This design offers excellent structural integrity while providing convenient three-sided access to the working area (die space), facilitating easier material loading, unloading, tool setup, and integration with automation systems.
Pressing Capacity: Delivers a maximum pressing force of 125 metric tons (or 1250 kN), suitable for medium to heavy-duty operations.
Hydraulic System: Features a high-performance hydraulic power pack, typically comprising quality pumps, control valves (including pressure relief, directional control, and flow control valves), a suitably sized oil reservoir with level indicators and filters, and efficient heat exchangers (often air-cooled or water-cooled) to maintain optimal operating temperatures during continuous use. The system is designed for smooth, reliable power delivery and precise control over the ram movement.
Ram (Slide) & Guidance: The hydraulically actuated ram ensures smooth vertical movement. It is precisely guided by long, adjustable gibs (often phosphor bronze or low-friction liners) on the frame columns to maintain parallelism and accuracy throughout the stroke, minimizing tool wear and ensuring consistent part quality.
Control System: Typically equipped with a user-friendly electrical control panel. Options often range from basic relay logic controls to advanced PLC (Programmable Logic Controller) systems paired with an HMI (Human-Machine Interface) touchscreen. This allows operators to easily set and monitor parameters like:
Pressing force/pressure
Stroke length (upper and lower limits)
Ram speed (approach, pressing, return)
Dwell time at the bottom of the stroke
Operating modes (Inching/Setup, Single Cycle, Continuous/Automatic)
Working Area: Features a generously sized bed (bolster plate) and ram platen, usually equipped with T-slots conforming to standard dimensions for secure and flexible clamping of dies and tooling. Key specifications like daylight (maximum opening between bed and ram) and throat depth (distance from frame centerline to back) are designed to accommodate a range of workpiece sizes and tooling setups.

Benefits:

Accessibility: C-frame design allows easy access for operators and automation.
Precision: Guided ram and controlled hydraulics ensure accurate operations.
Versatility: Adaptable to various tooling and processes.
Durability: Robust construction ensures long service life under industrial conditions.
Control: Precise adjustment of force, speed, and stroke.
