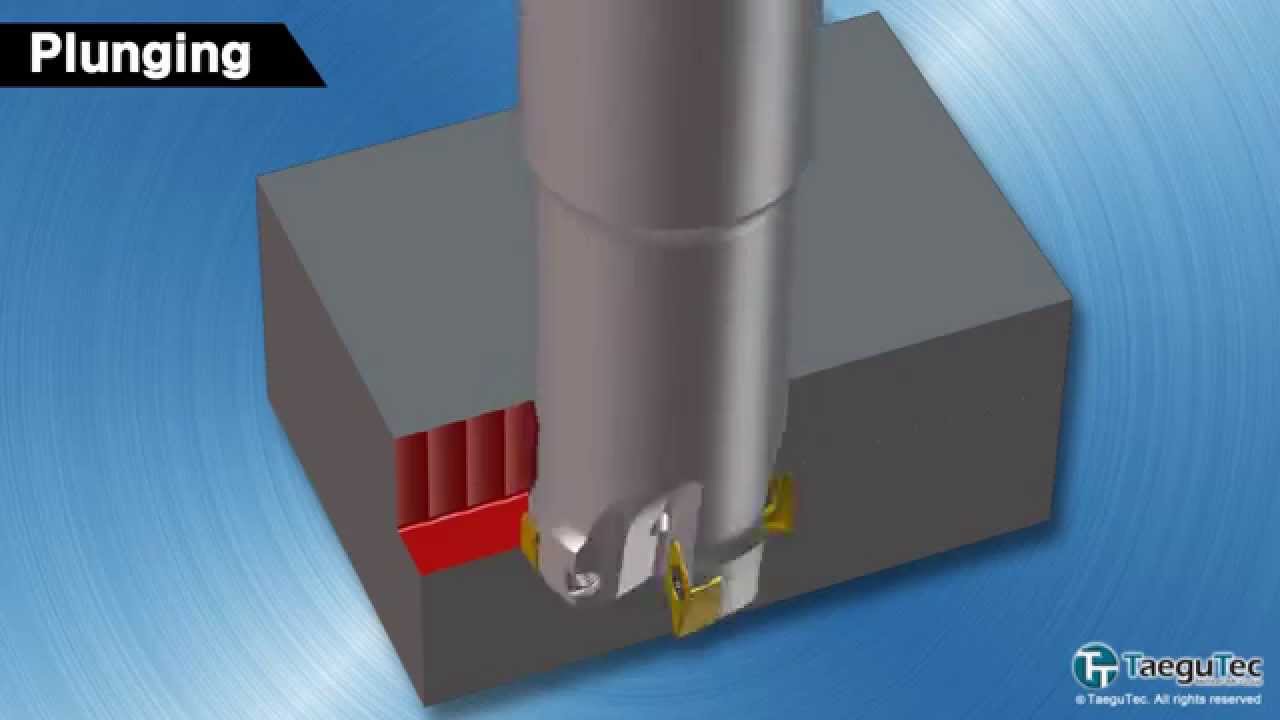

Скачать или смотреть [Animation]_TaeguTec_CHASEMILLPOWER

The CHASEMILLPOWER line has a unique design with “double dovetail” shape 2PKT inserts that enable high productive machining.
The double dovetail insert pocket bears most of the cutting forces and relieves the insert screw from the cutting
load thus provides powerful and secure insert clamping. Moreover this unique design makes it possible to clamp
the insert with a bigger size screw compared to similar size conventional design inserts. These features combined
with the high positive design make the CHASEMILL POWER an excellent choice for high productive machining
even in low power and unstable setups.
The unique 2PKT 05 insert is a high positive double sided insert with 2 cutting edges. The double sided design
protects the unused cutting edge from potential damage or micro-chipping due to chip-hitting. The 2PKT 05 can
take depth of cut upto 4.2 mm (max) and produces true 90 degree shoulder even with multiple passes.
The CHASEMILLPOWER line is available in end mills from 12mm-32mm, modular type from 12mm-25mm and face mill type
from 32mm-40mm. In end mill type these are also available overcut diameter sizes 13mm, 17mm and 21mm to
facilitate deep cavity or shoulder machining. 2PKT 05 inserts are available in 2 geometries, “M” for general purpose
machining applications and “ML” for low power machining in unstable setups and long overhangs.
