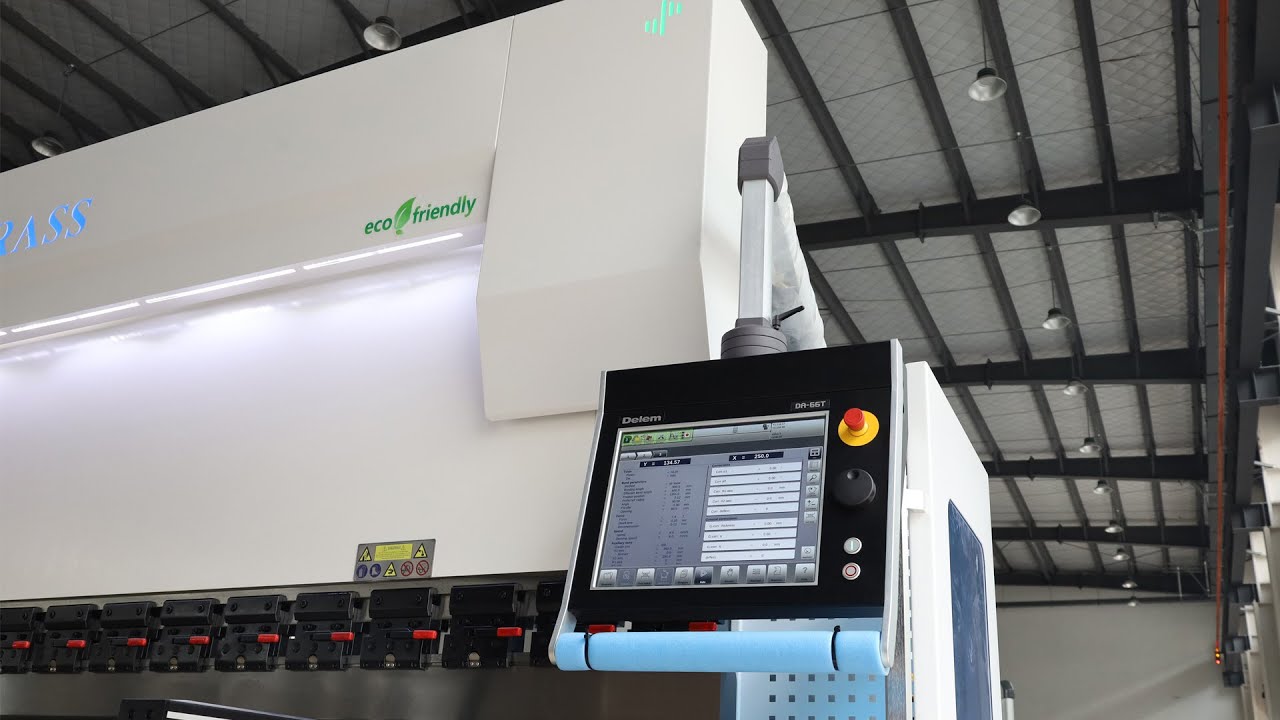

KRRASS Euro Pro 110T CNC Energy Efficient Press brake. 3200mm x 110Ton, 9 Axis Delem DA66T Controller
STEELMASTER - KRRASS Euro Pro Series CNC Press brakes offer unbeatable quality & competitive pricing!
Our New Siemens High Efficiency Stand By Inverter Motor – Offers low cost operation followed up by all but silent machine operation.

Features
❚Siemens energy efficient “Stand-By” inverter motor.
❚precise and accurate 4 ~ 8 axis CNC press brakes.
❚STEELMASTER - KRRASS machine frames consist of a monolithic structure with hot rolled high quality steel.
❚CNC 9 Controlled Axis (Y1,Y2,X1,X2,Z1,Z2,R1,R2 & Crowning) as standard.
❚full electronic Synchronisation with proportional valve technology. Guaranteed beam positioning of +/- 0.01mm (Y1 and Y2 Axis)
❚German Hoerbiger hydraulic system
❚cylinders made from high quality forged steel, precision honed
❚accurate positioning and repeat ability of synchronised cnc press brakes, achieved by synchronising the hydraulic cylinders with advanced CNC control of proportional valves and use of optic linear scales
❚CNC controlled back gauge with ball screw spindles, ball guides and AC or DC servo motors
❚Euro quick action tool holders.
❚linear guided sliding front sheet supports.
❚ergonomic swing-away control panel
❚side and rear safety guards with safety interlocks

Technical Data Snap-Shot
❚Quality European Engineered Build Quality
❚175 Ton Bending Capacity
❚4000mm Bending Length
❚9axis cnc control, (Y1,Y2,X1,X2,Z1,Z2,R1,R2 & Crowning)
❚Delem DA66T Controller
❚High Speed Servo Operation
❚2600mm Distance Between Frames
❚410mm Side Throat Depth
❚970mm Table Height
❚200mm Ram Stroke
❚490mm Open Height
❚160mm / sec approach speed
❚10mm / sec bending speed
❚100mm / sec return speed
❚600mm precision back gauge stroke
❚Italian DSP laser guards included
❚230Ltr Hydraulic Oil Tank
❚11Kw / 415V Motor Power
❚3500mm x 1550mm x 2780mm Footprint
❚8800Kg Weight

Pressbrake Tooling Supplied
❚60mm x 60mm x 4 Vee Bottom Block / Other configurations can be offered
❚Segmented Offset (Gooseneck) Tooling
