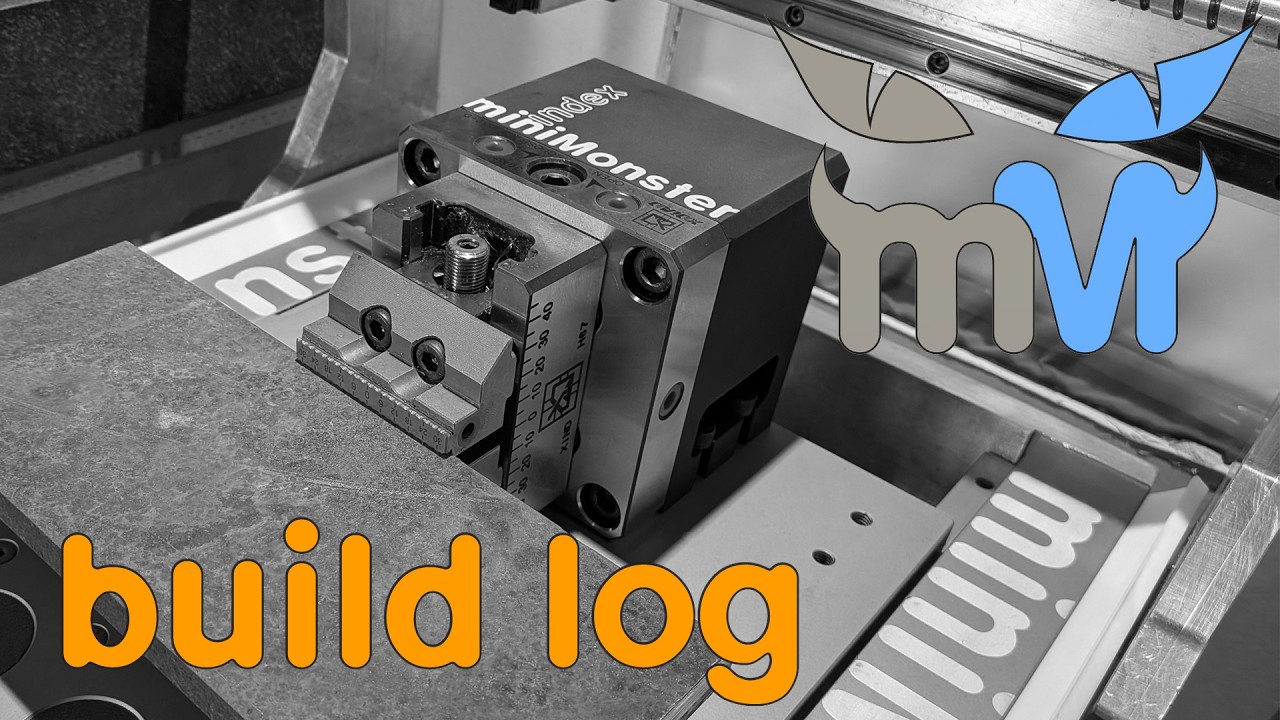

In this video we show off some enhancements and new tooling for the miniMonster test mule. This brings it more in line with the future machine.

We have a LOT more videos coming very soon using this new updated machine to cut things - including parts of the production minimonster!

Visit our discord at:   / discord   to chat about the machine, specs and your use cases and sources for electrical items and tooling

Sign up to our mailing list at https://minimonster.ca/ to receive updates on the machine progress!

current prototype specs:

280mm x 300mm x 110mm travel
Solid and heavy machined aluminium frame.
80-90kg total machine weight (without stand).
1510 ground ball screws from NSK.
15mm preloaded linear guides from rexroth.
mechanical machine staightness and squareness is better than 15 microns over the entire machines.
200w and 400w ac servo from omron using ethercat.
80mm 4kw 40000rpm HSK25e spindle from echotech
20mm thick aluminium table has 3 zero point positions plus 2 positions for the index block or 4th axis.
Rapid speeds set at 42m/m, cutting feeds set at 30m/m, acceleration set at 0.65G
servos track at 30m/m better than 15 microns
control is linuxcnc 2.9.4

thanks for looking!
