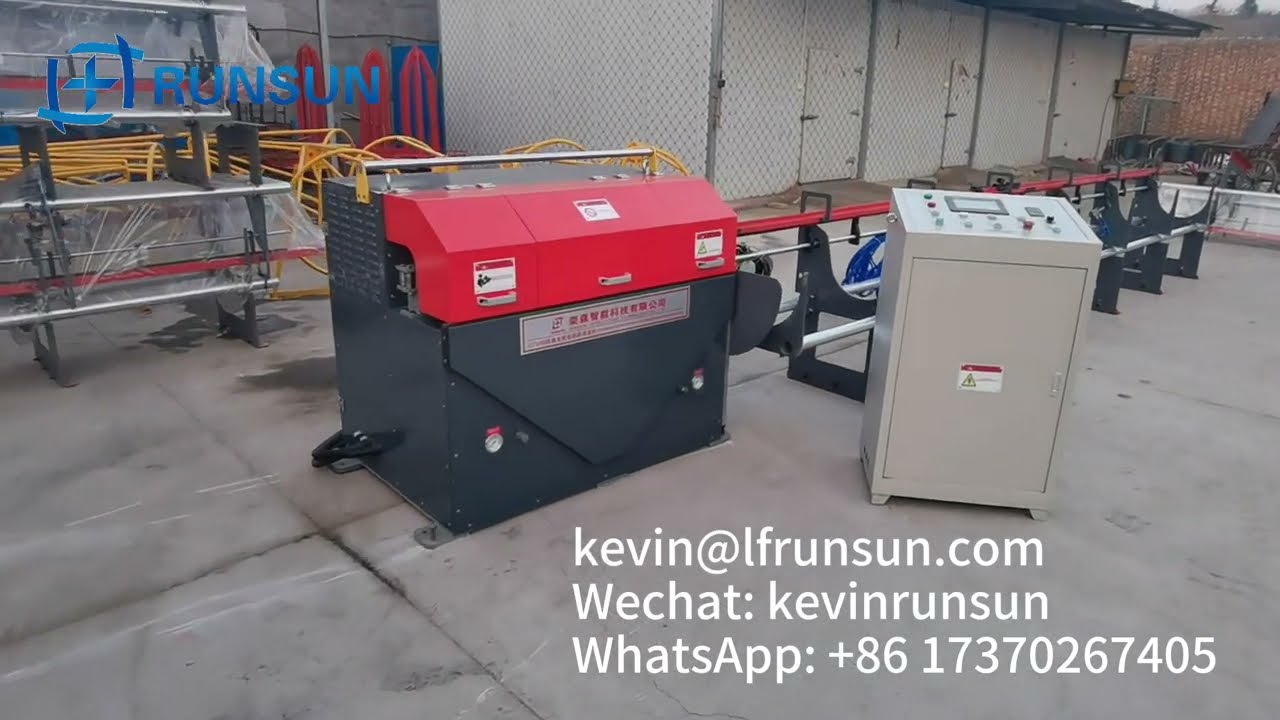

Скачать или смотреть automatic wire straightening and cutting machine used for welding steel mesh and construction RUNSUN

‪@Rebarbendercuttertier‬
Please contact me for more information, thank you!
Kevin Yang
Mobile (WhatsApp, Wechat, Viber): +86 17370267405
Email: [email protected], [email protected]

High Quality New Condition steel wire straightening cutting machine for mesh welding factory
CNC Wire Straightener & Cutter
Working Capacity: 3-6mm
Working Speed: 100-120m/min
Max. Working speed: 150m/min
Servo Motor Cutting Mode
12m Rebar Collect Stacker or customized
Power: 7.5+4.0KW
Servo Motor:4.0KW
Voltage: 3Phase, 380V, 50Hz or customized
PLC: Siemens
Touch Screen: Siemens
Servo Motor: Inovance
Invertor: Inovance
Electric Parts: Schneider
Processing Material: Cold Rolled, Hot Rolled, Cold Drawn Steel Wire, Rebar
Wire Length: 0.3-12m, adjustable
Length Tolerance: ≤ ±1 mm
Straightness: ≤ 2mm/m

Technical Specifications:
Model: GT2-5, GT 3 - 6, GT3-8
Steel Wire Diameter: 2.0-5.0mm / 3.0 - 6.0 mm / 3.0-8.0mm, Cold Rolled & Hot Rolled Round Bar/Rebar
Processing Material: Cold Rolled, Hot Rolled, Cold Drawn Steel Wire, Rebar
Wire Length: 0.7 - 6m, Adjustable
Wire collector length: 3m/6m or customized
Length Tolerance: ±1 mm
Straightness: 2mm/m
Working Speed: 100 - 130 m/min, Max. Working Speed: 150m/min
Straightening Mode: Rotating Straightening Drum
Wire Feeding Mode: Electric Motor
Total Motor Power: 7.5 KW
Cutting Mode: Servo Motor Cutting
Servo Motor Power: 4.0 KW
Control Mode: PLC (Siemens)
Steel Wire Strength: Tensile Strength ≤ 550MPa Low Carbon Steel Wire
Electric Voltage: Three Phase, 380V, 50HZ or Customized
Electric capacity: ≥20KVA
Power Supply Line: Cross-sectional Area: 6mm2 ; Material: Copper Material
Air consumption: Working Pressure 0.6MPa, Flow Rate 18m3/h
Working Line Size (L* W*H): 1500mm×1000mm×1200mm
Gross Weight: 1.5 tons
Function: straightening steel wire, rebar, round bar
Used for: construction site, steel wire fabrication plant.

Technical Advantages:
1. Suitable for straightening and cutting cold-rolled round bar/ribbed bar, hot-rolled round/ribbed bar.
2. Intelligent control: The machine is controlled by PLC (Siemens), touch screen (Weinview) and servo motor (Housine servo). Easy operation and working reliable
3. Low failure rate: Due to the fine processing of parts and strict quality control, after installation and debugging, under normal working conditions, it can maintain trouble-free operation for a long time.
4. World Advanced & Leading technology: Machine straightening and cutting technology
