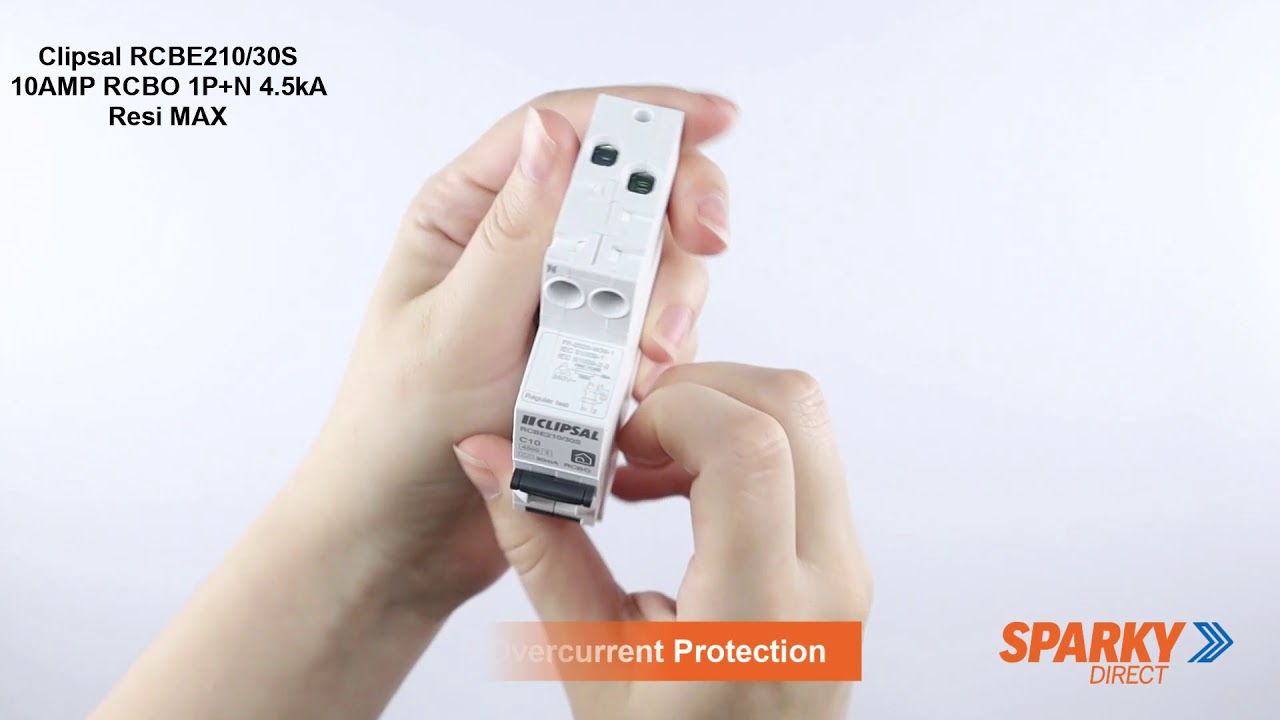

Скачать или смотреть Clipsal RCBE210/30S | 10AMP RCBO 1P+N 4.5kA Resi MAX

Clipsal RCBE210/30S | 10AMP RCBO 1P+N 4.5kA Resi MAX
Available at Sparky Direct - Electrical Online Wholesaler
https://www.sparkydirect.com.au/p/CLI...

Clipsal Resi Max RCBO is a Residual Current Breaker with Overcurrent Protection.
The product was designed to meet new wiring regulations to minimise injuries related to electric shock.
The slimline device is also commonly referred to as a single pole combo and was developed to maximise space in domestic switchboards and load centres.
The Clipsal 10 Amp Rcbo also saves time and money on installation. As both line and load terminals are non sensitive, rewiring is not required if replacing an alternative brand.

Features
Residual current breaker with overcurrent protection (RCBO)
Product brand: Clipsal
Poles description: 1P + N
Neutral position: Left
Number of modules: 1
Number of protected poles: 1
[In] rated current: 10 A
Network type: AC
Trip unit technology: Thermal-magnetic
Curve: C
Earth-leakage sensitivity: 30 mA
Earth-leakage protection class: Type A
Breaking capacity: 4.5 kA Top and bottom, line and load compatible
Narrow module design, allows for more RCDs/MCBs to be installed in the one enclosure
Two pole safety feature allows switching of both active and neutral contacts
Trip free locking device (lockable in 'ON' or 'OFF' position)
Compatible with Clipsal switchboards and switchboard accessories
AS/NZS 61009 compliance
Two–year warranty.
