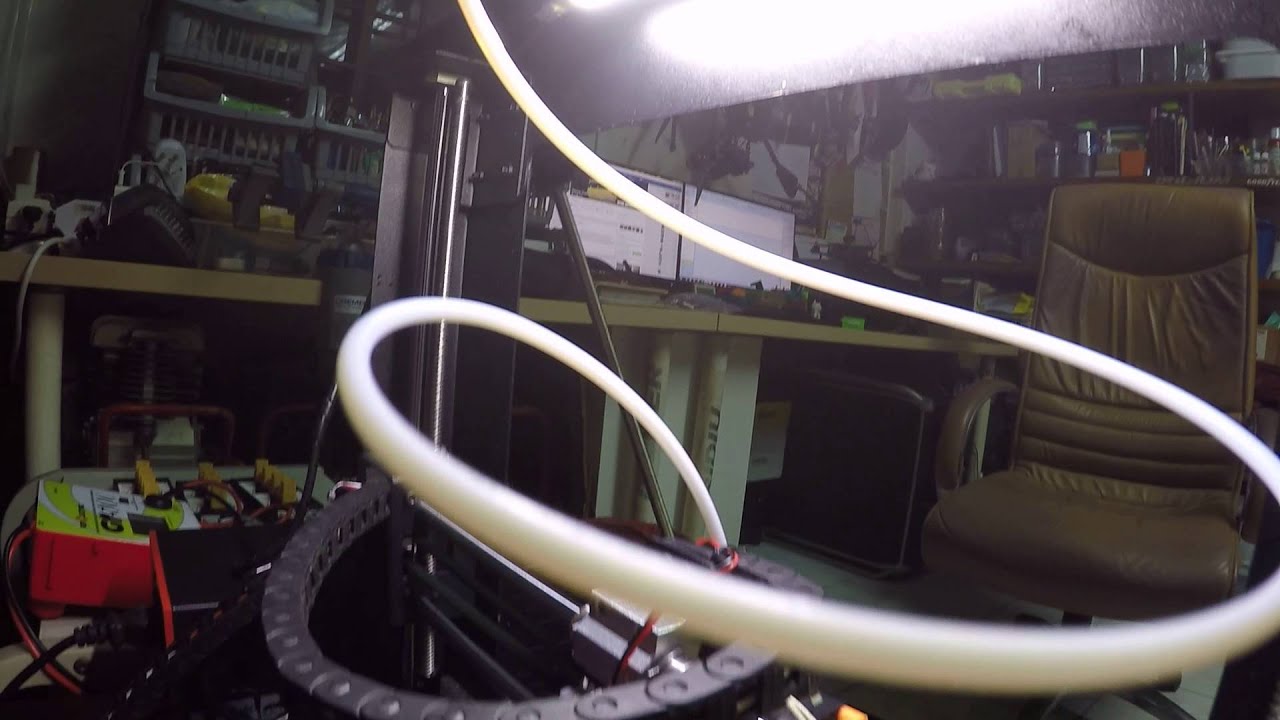

Скачать или смотреть Wanhao Duplicator i3 with all the recommended mods - updated

The printer at first when stock, it was already quite good but after all the mods, the printer is went from good to awesome. Printings can can easily match machine that cost much much more. And it is a lot quieter than stock.

Mods done:

1) Z-axis brace
2) Microswiss all metal hotend
3) B3 innovation heater cartridge
4) X axis using 2x LM8LUU bearing with the one of the bearing block cut to clear the belt and blueprint the printer.
5) Y axis carriage bottom plate change to 2.5mm thicker plate, add a 3mm borosilicate glass and using buildtak with printed m3 thumb screw.
6) Y axis change to 3x igus bearing
7) Y axis belt re align straighter, and add zip tie to lock one of the belt holder.
8) All belt tensioner removed and belt re-tensioned
9) Adjustable z axis endstop bracket.
10) Extruder gear change to the one from Duplicator 4
11) Change stock 3mm nozzle fan to the DiiCooler Shroud using 50mm blower
12) Printed an LCD angle faceplate for the control box with reset button
13) Printed a 2 fan blackplate to replace the stock 1 fan backplate
14) APC 650VA UPS just in case of power outage
15) LED light strip at the top of tower
16) LED light strip at the extruder
17) Extruder mod to use flexible filaments like ninjaflex
18) New filament guide with dust filter
19) Cobra Fan Shroud
