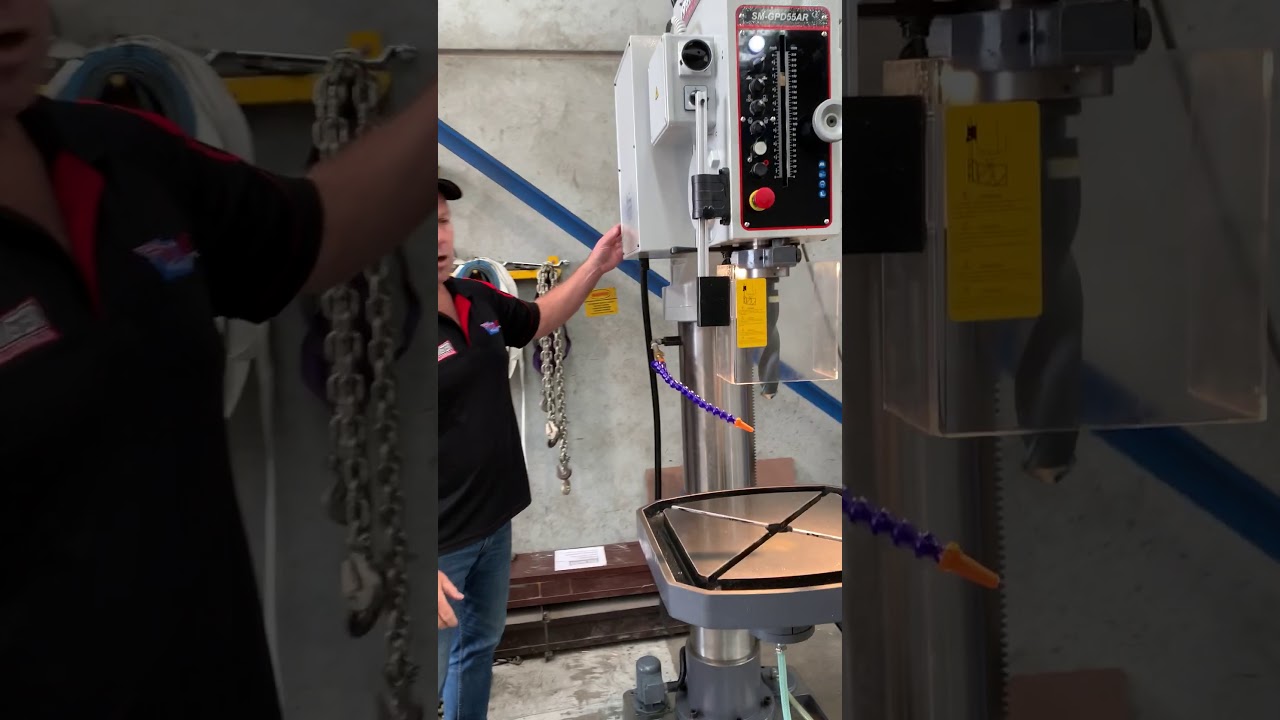

SM-GPD55AR. 415Volt, 55mm Capacity Geared Head Drill with Power Feed, Power Table Up & Down, Coolant Power Feed, 180mm Column, 4 MT Spindle, 500mm x 600mm Table, 54 ~ 2090 (12) Speeds, 380mm Throat.

Description
This is an excellent buy in a heavy-duty geared head Drill Press. Equipped with a large tee slotted table and power feed, this machine is robust enough for milling, drilling and boring. And the head is adjustable on the column! Head also swivels left and right. These features expands the capacity of this machine. You can also change speeds quickly and easily.
Heavy duty thick walled column, power table raise & lower, power down feed, tapping switch, coolant, digital depth display, halogen work light - What more can you ask for???

Features
❚ rigid cast iron construction
❚ tapping selector fitted reversing on bottom of stroke.
❚ power raise and lower of table (GPD50A only)
❚ large throat up to 380 mm
❚ halogen work light as standard
❚ tables rotates 180 and swivels 45°
❚ 4 step automatic feed
❚ adjustable depth stop
❚ thick-walled column
❚ side mounted electrical control cabinet for easy access.
❚ extremely easy tool change
❚ coolant system
❚ CE compliant

Technical Data Snap-Shot
❚power table up & down
❚500mm x 600mm tee slotted swivel work table
❚730mm x 600mm heavy duty tee work base
❚240mm spindle travel
❚4 morse taper spindle
❚speeds range - 54 ~ 2090
❚motor capacity - 3.0Kw x 415Volt
❚machine dimensions - 1010mm x 580mm x 2330mm
❚crate shipping dimensions - 2300mm x 1100mm x 630mm High
❚approx weight: 800kg
