Скачать или смотреть [RecurDyn MFBD] Deformation and stress distribution when the key pad is pushed

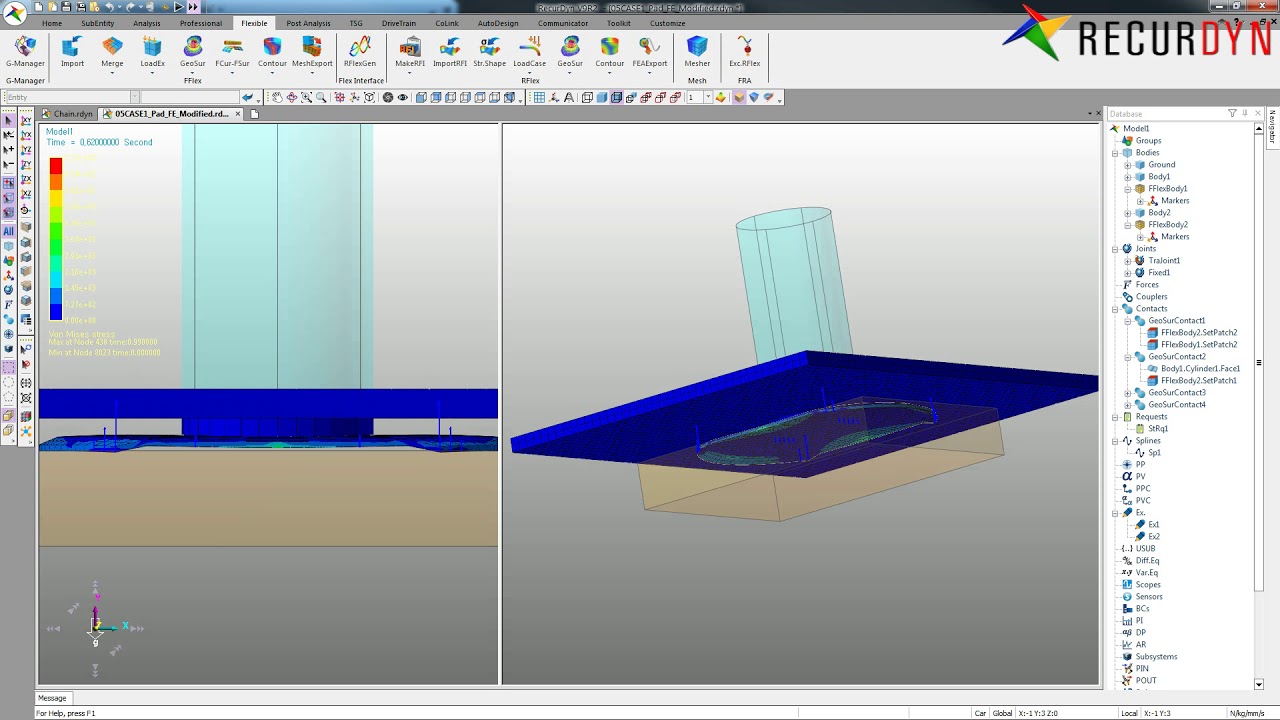

This video shows the simulation result of RecurDyn on the deformation and stress distribution when the key pad is pushed.
Even if this model includes the contact between the flexible bodies, it can be simulated quite fast and the simulation result can be reviewed via contour plot.

Model Info.
4 bodies (2 rigid, 2 flexible bodies)
Flex#1 1674 nodes, 808 elements
Flex#2 6470nodes, 4176 elements
2 joints
4 contacts
flex-rigid contact
flex-flex contact

Simulation speed
1 min. 22 sec.
Intel(R) i7-4790 @3.60Ghz, RAM: 32GB
Simulation end time: 2 sec.
