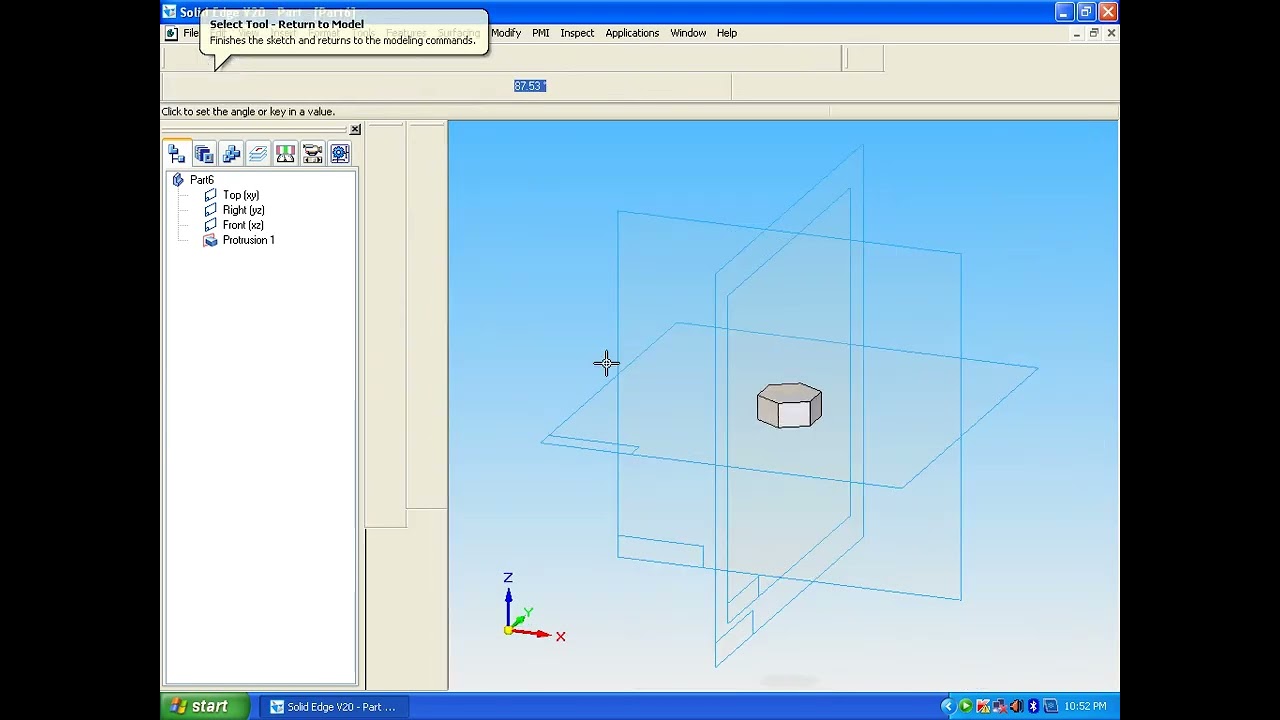

Скачать или смотреть Nut M10 || Plummer Block || Solid Edge ||

The M10 nut used in a plummer block assembly is a standard hexagonal nut designed to fasten the M10 bolts that hold the top and bottom halves of the plummer block housing together. It has an internal metric thread of 10 mm diameter (M10) manufactured according to ISO metric thread standards. The nut is typically made of high-tensile steel such as Grade 8 or Grade 10 to withstand the heavy clamping forces and vibration commonly present in rotating machinery.

The hexagonal outer shape allows tightening with a spanner or socket wrench, providing strong and reliable clamping. When assembled, the M10 nut is tightened onto the bolt passing through the housing lugs, ensuring the cap and base of the plummer block remain securely fastened, maintaining proper bearing alignment. A flat washer or spring washer is often used under the nut to distribute the load and prevent loosening.

Overall, the M10 nut provides secure fastening, rigidity, and vibration resistance, ensuring safe and stable operation of the plummer block.
