Скачать или смотреть My 2025 Ford Bronco Sport Accessory Tray Dash Cam & Phone Mount Setup.

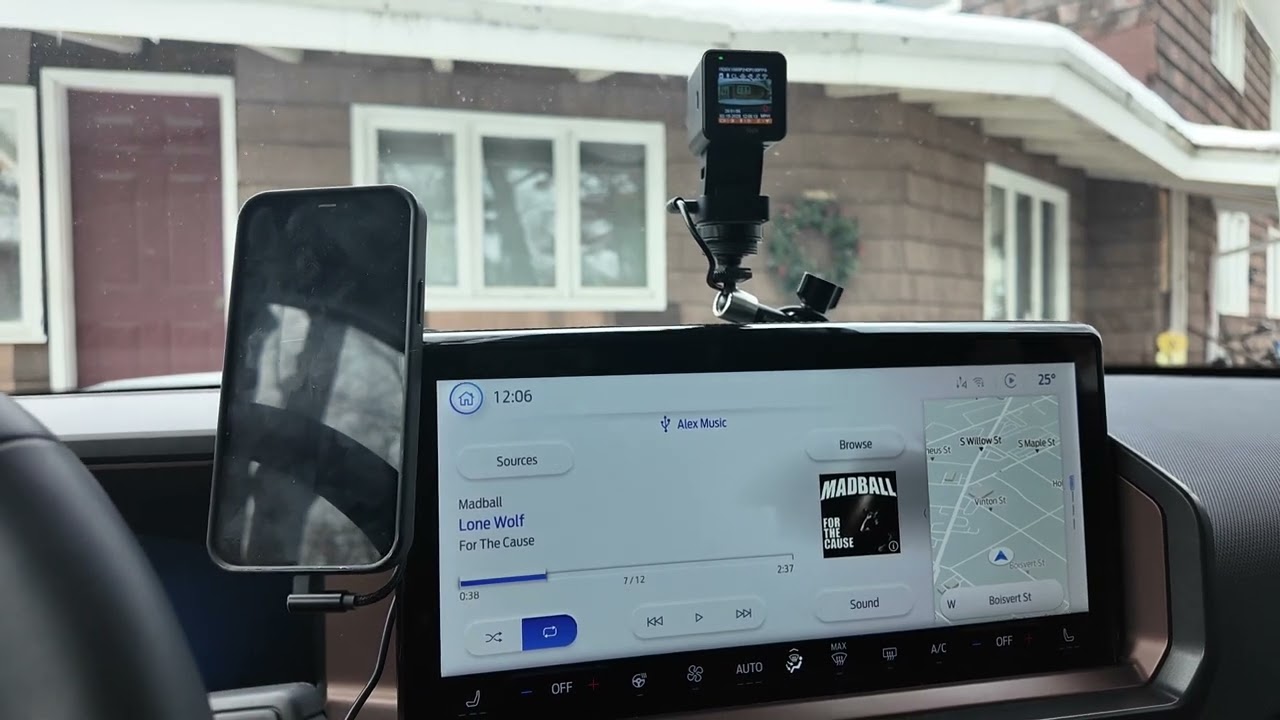

This is my 2025 Ford Bronco Sport accessory tray dash cam & phone mount setup.

FOR THE ENTIRE PHONE/DASH CAM SETUP:

(2) Male to Female thread adapter (the accessory tray holes take a M6-1mm fine thread, while everything else attached from there is 1/4" 20 coarse... YOU NEED THESE) https://www.mcmaster.com/91645A305

(2) SmallRig 5.5 inch articulating arms: https://www.amazon.com/dp/B076KDD8MY

(1) DEKEENSTAR MagSafe 1/4" screw-in phone mount (it comes with MagSafe magnet adhesive rings if you don't have a MagSafe ready case: https://www.amazon.com/dp/B0D2C4YS9N

(1) 1/4" Hot Shoe adapter for the dash cam. Screw it on upside down (this is to create a larger surface area for the dash cam to sit on: https://www.amazon.com/dp/B0BGLMVX2J

DIYMAG 150lb strength magnets: https://www.amazon.com/dp/B0CDR3Y5ZY

E6000 glue (glue the flat disk that comes with the DIYMAG magnets to the Hot Shoe adapter and the actual magnet to the dash cam base (see additional notes below about gluing suggestion): https://www.amazon.com/dp/B00JP3X9WE

GRAND TOTAL: $90.70

FOR JUST THE PHONE MOUNT SIDE:

(1) Male to Female thread adapter (the accessory tray holes take a M6-1mm fine thread, while everything else attached from there is 1/4" 20 coarse... YOU NEED THIS) https://www.mcmaster.com/91645A305

(1) SmallRig 5.5 inch articulating arm: https://www.amazon.com/dp/B076KDD8MY

(1) DEKEENSTAR MagSafe 1/4" screw-in phone mount (it comes with MagSafe magnet adhesive rings if you don't have a MagSafe ready case: https://www.amazon.com/dp/B0D2C4YS9N

GRAND TOTAL: $42.06

FOR JUST THE DASH CAM SIDE:

(1) Male to Female thread adapter (the accessory tray holes take a M6-1mm fine thread, while everything else attached from there is 1/4" 20 coarse... YOU NEED THIS) https://www.mcmaster.com/91645A305

(1) SmallRig 5.5 inch articulating arm: https://www.amazon.com/dp/B076KDD8MY

(1) 1/4" Hot Shoe adapter for the dash cam. Screw it on upside down (this is to create a larger surface area for the dash cam to sit on: https://www.amazon.com/dp/B0BGLMVX2J

DIYMAG 150lb strength magnets: https://www.amazon.com/dp/B0CDR3Y5ZY

E6000 glue (glue the flat disk that comes with the DIYMAG magnets to the Hot Shoe adapter and the actual magnet to the dash cam base (see additional notes below about gluing suggestion): https://www.amazon.com/dp/B00JP3X9WE

GRAND TOTAL: $48.64

I am not including the price of the dash cam or phone charging cable in the lists above since everyone's cam and phone cable choices are different, however these are the links to the ones I am using which (for the dash cam) has an option to "flip" the image orientation 180 degrees which is GREAT since this camera is mounted upside-down and the phone charging cable is nice and short at 1' (one foot) long and connects to the accessory tray USB-C port:

Vantrue Dash Cam: https://www.amazon.com/gp/product/B0B...
Phone Charging Cable: https://www.amazon.com/dp/B098L6N93Y

THE VANTRUE DASH CAM WILL NOT POWER UP VIA USB-C so that is why you don't see it plugged into the USB-C port in the accessory tray. If you look at the photos at the end of the video you can see what I believe is the power wire routing path of least resistance and cable management. The Bronco Sport isn't very "tuck" friendly when it comes to wires so i feel that this short path for cable management will not get in the way of you or anything else.

If you decide to get the Vantrue camera (or any camera with an adhesive mount), I strongly advise applying the E6000 glue to the sticky adhesive and then applying the magnet to that. This way if you ever want to remove the magnet you can simply take some fishing line and remove the adhesive and not risk breaking the camera base. Then you can re-apply new adhesive to the base and move on with life.

I hope my DIY project helps others. =)
