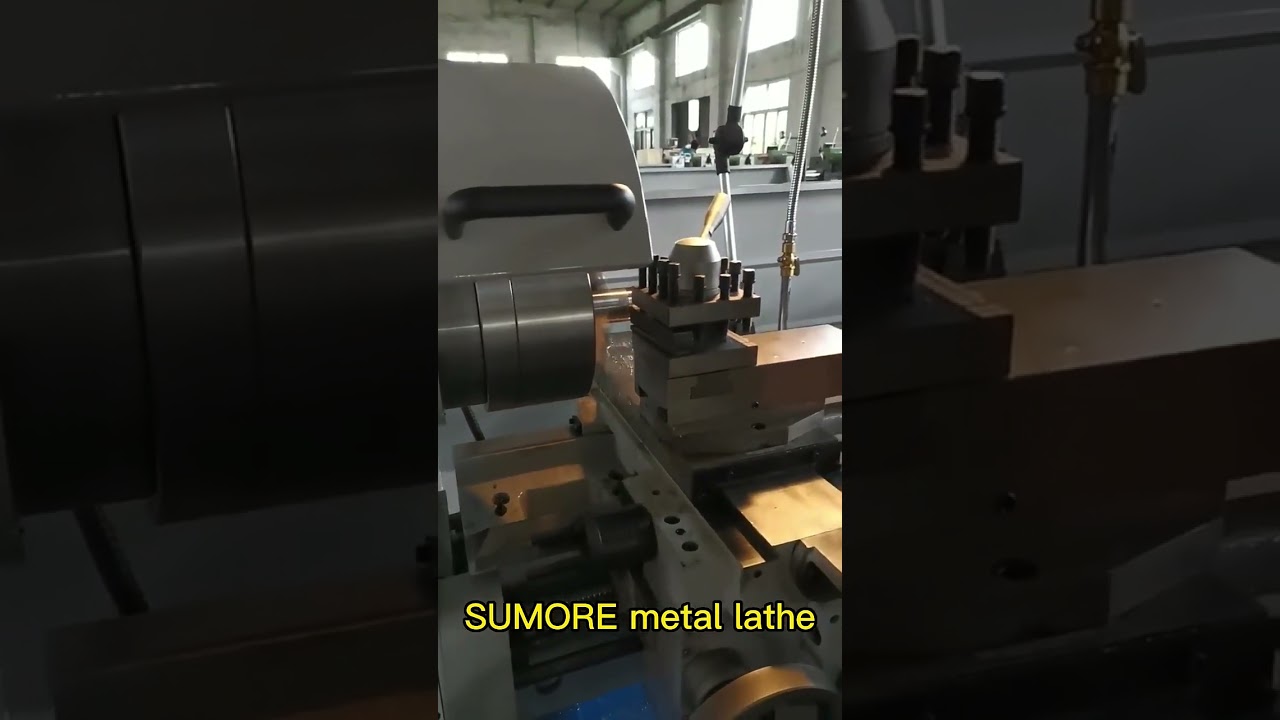

Скачать или смотреть Sumore horizontal screw-cutting universal lathe machine SP2121

SP2121 lathe machine can be with spindle speed 12 steps or variable speed. It is an affordable universal lathe machine. This manual lathe machine could be 80mm or 105mm spindle bore. Now we have developed new specification of lathe machine with automatic lubrication system.

The main features/Advantage is as below:
1. The spinlde bore is supported with precision roller bearings
2.Removable gap is provided for larger diameter work and easy operating gear box can be various feeds & thread cutting.
3.An overload safety device is designed on the apron.
4.Carriage rapid feed with clutch is available.
5.Easy operating speed change levers.

Swing over Bed：510/560mm
Swing over Cross Slide：300/350mm
Swing over Gap：738/788mm
Distance Between Centers：1,000 / 1,500 / 2,000 / 3,000 mm
Width of Bed：350mm
Spindle Bore：80mm
Range of Spindle Speeds：25-1,600 rpm
——————————————————————————————————————
#lathemachine #manuallathe #metallathe #industriallathe #lathework #lathe #sumore #sumoreindustrial #sumoremachine
——————————————————————————————————————
email：[email protected]
website：www.sumore-machine.com
WhatsApp/Wechat/Phone number:+8619981225449

You can contact us for more !!—————————————————————————————————————
SUMORE with twenty years experience in manufacturing & erporting machine and tools.
