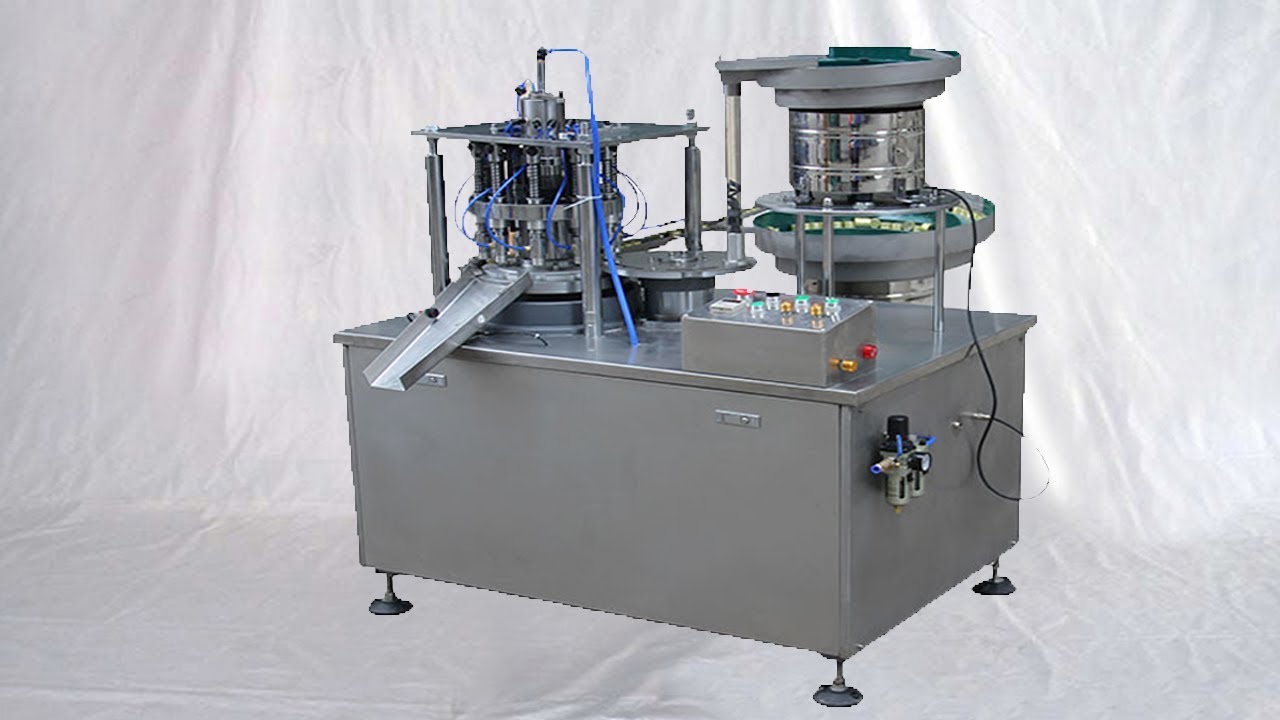

Model YX-WI02 Cap Lining Machine Foil Inserting Wadding Equipment Rotary Caps Closer Assembly équipement de revêtement bouchon designed and manufactured by our engineer team in cosmetic&food&pharma making and packaging machinery is widely used in the daily chemical industry like caps linear equipments and such like.We as a famous manufacturer moreover can design and produce the packaging machine according to the special requirements from customers.
The machine is widely used in bottle cap factory, gasket factory, pharmaceutical factory, food product factory, household chemical plant, packaging plant and so on factory, ideal for the gasket fill in cap equipment.
Features of equipment:
1. It’s substitute the manual operation, make the gasket fill in cap automatically, greatly improved work efficiency;
2. The gasket seal is reasonable, fast speed, high efficiency, product safety and health;
3. It is particularly suitable for the health conditions is relatively harsh that uses an occasion, avoid to the material secondary pollution, can be leave out the sterilization process;
4. The cap sorting mechanism attach cap reject function, make the reverse cap automatic return to cap sorting machine, to ensure all discharge cap mouth is upward feed in conveyer belt;
5. This machine can be disorder caps automatic pour into cap sorting machine by hoister, feed into conveyer belt after automatic sorting, and enter the turntable finally, interval feed into workstation to automatic fill in gasket after positioning the cap by turntable, automatic feed into outlet cap conveyer belt after complete the fill in gasket.
Basic parameter of Model YX-WI02 automatic caps wadding machine aluminum foil inserting assembling equipment equipo de montaje de tapas:
Specification of cap: 20-50mm
Max. productive capacity 50-100(PCS/MIN)
Power voltage (V) 240/50hz (adjustable for US-standard power )
Total power 1.5
External dimension (L x W x H) mm 3000×1000×1500
Net weight (kg) 450
Operation principle: cut the reeled liner materials into specified size and simultaneously insert the precut liner into the cap; finally, the liner pressing unit press the liner to the bottom of the cap.
This is the whole process of simultaneous liner cutting and liner inserting.
Production process: lifting the caps — arranging the caps — conveying the caps —cutting and inserting the liner — counting the caps — discharging the caps.
