Скачать или смотреть Brick Shape Vacuum Packing Machine with Double Heads Vibration Scale for 10kg 20kg 25kg Corn, Seeds

Double Heads Vibration Scale:
1. Brief introduction:
it is mainly used in agricultural products, food, chemical industry, such as corn seeds, granular fertilizer
and other materials with good fluidity. It can complete automatic measurement, automatic filling and other
work.
2. Product features:
The double station independent weighing system adopts the combination of cylinder self discharging and
linear vibration feeding, with high weighing accuracy. 1) High resolution single point cantilever sensor, high sensitivity, dual position alternate work, weighing
more stable.
2) Chinese and English touch screen operation interface, parameter setting at a glance, more user-friendly
operation. A variety of different product parameters can be set to realize the selection of different products
and measurement values.
3) The humanized inner opening bag clamping device is safe and convenient to operate. It is controlled by
toggle switch or foot switch, and can realize linkage work with packaging equipment.
3. Technical parameters:
Metering range: 5KG-25KG (Max. 50kg with double bucket)
Weighing speed: 4-8 times / min
Accuracy grade: X (0.5)
Power supply: 220 V, 50 Hz, 0.5 kw
Working pressure: 0.5 ~ 0.8MPa
Dimension: 1290x860x3656mm
Weighing bucket volume: 70L
Silo volume: 270L
4. Equipment configuration:
Load Sensor: Ningbo Keli
Cylinder: AirTac
Touch screen: WEINVIEW

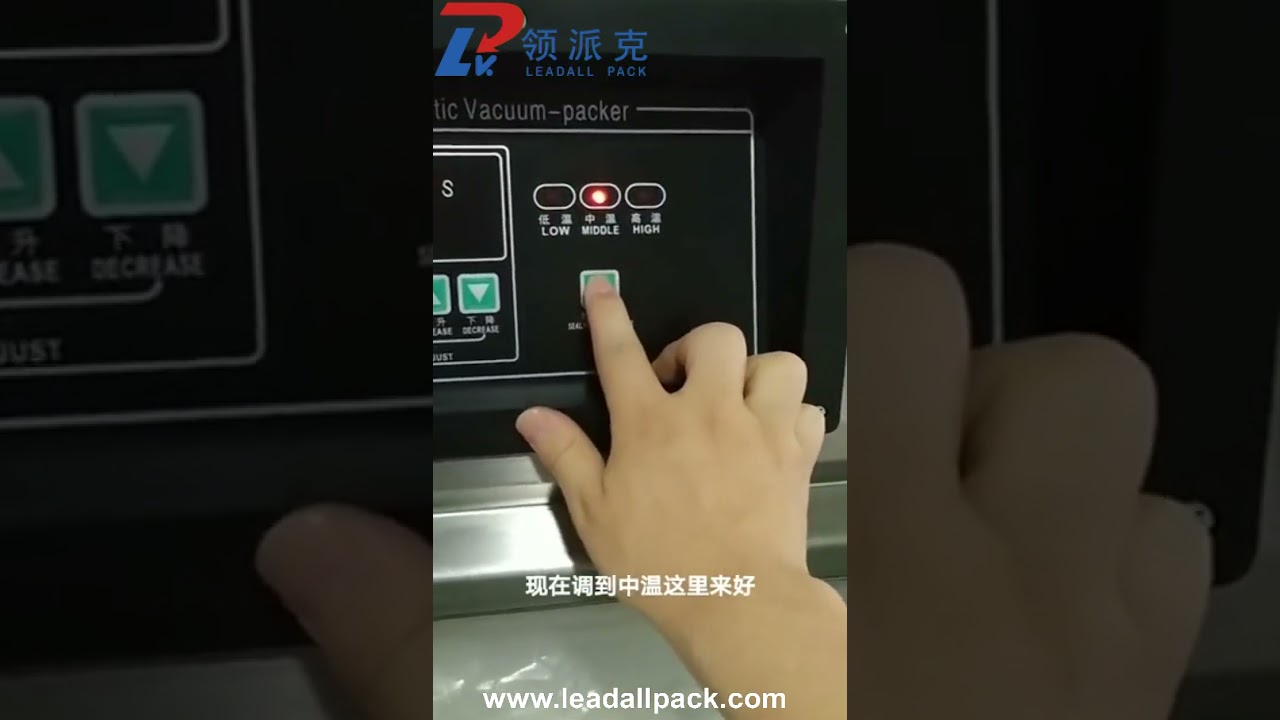

Vacuum Heat Sealing Machine:
it is mainly used in agricultural products, food, chemical industry, such as corn seeds, granular fertilizer
and other materials with good fluidity. It can complete automatic measurement, automatic filling and other
work.
Voltage: AC 380V/50Hz 220V/50Hz
Motor power: 900W
Sealing Power: 600W
Sealing Length: 600 / 800mm
Sealing Width: 10mm
Distance from Sealing Center to Floor: 850-1350mm
Vacuum Pump Capacity: 20m3/h
Film Thickness (Single Layer): ≤ 0.18mm
External Dimensions (L×W×H): 1125×1075×2150mm
Net Weight: Approx. 285kg
