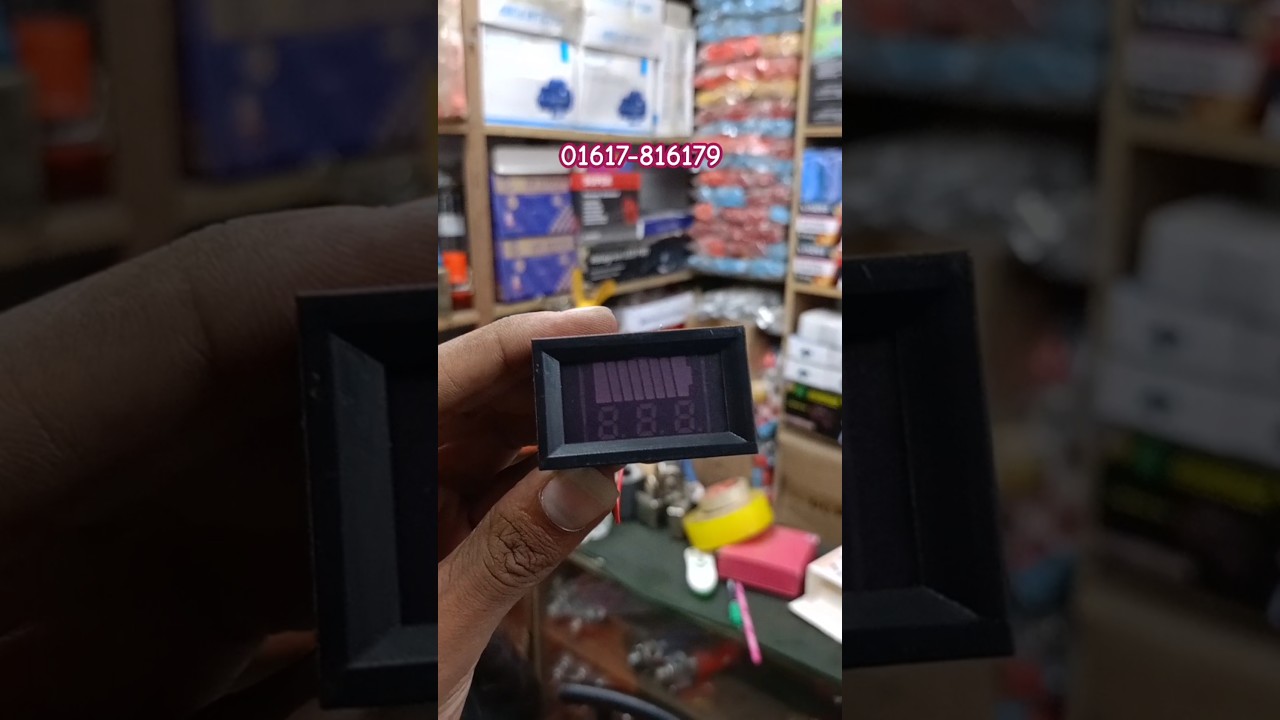

Скачать или смотреть 12V-60V ACID Red Digital Lead Battery Capacity Indicator Charge Level Lead-acid LED Tester Voltmeter

100% brand new and high quality.

1. Double display: the battery capacity + voltage. Show more intuitive.

2. Up line: 8 colorful bar shows the battery power, the down line: voltmeter displays battery voltage, the voltage table decimal point automatically shift, accuracy is higher.

3. Use of a wider range: 18650 lithium polymer lithium battery pack, lead-acid batteries, electric car batteries, and other types of electric equipment can be used.

Indicator:

    Battery voltage is greater than 11.1V, 1 led indicator is lit.

    Battery voltage is greater than 11.3V, 2 led indicator is lit.

    Battery voltage is greater than 11.6V, 3 led indicator is lit.

    Battery voltage is greater than 11.9V, 4 led indicator is lit.

    Battery voltage is greater than 12.2V, 5 led indicator is lit.
Battery voltage is greater than 12.5V, 6 led indicator is lit.

    Battery voltage is greater than 12.9V, 7 led indicator is lit.

    Battery voltage is greater than 13.3V, 8 led indicator is lit.

NOTICE: It will only display voltage if not measure lead-acid battery!!

Specifications:

Item Type: Battery Power Capacity Indicator Voltmeter

Working current: 5-15mA (The lower the battery voltage is , the smaller current is)

Eight electricity Resolution: 10%, 25%, 40%, 50%, 60%, 75%, 90%, 100%

Voltmeter accuracy: 1%

Working temperature: -10 ~ +65℃

Operating Humidity: 10 ~ 80%

Material: ABS

Size: 48×29×21mm/1.89×1.14×0.83in (Approx.)
LED Indicator Color: Blue/Red (Optional)

Quantity: 1PC (other accessories demo in the picture is not included)

Note:

1.Transition: 1cm=10mm=0.39inch

2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.

3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

4.No retail package
