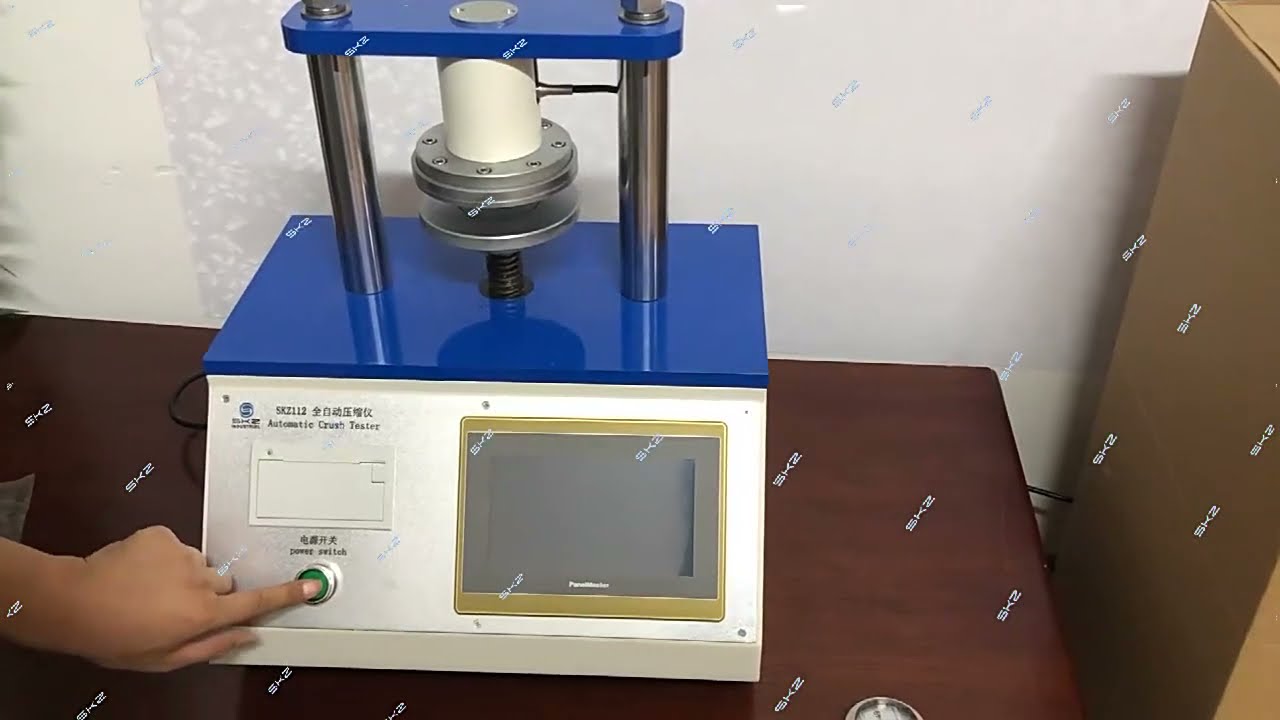

Скачать или смотреть SKZ112 Lab machine ISO FCT RCT ECT test equipment paper and cardboard tester machine

This video is to show the introduce of SKZ112 Lab machine ISO FCT RCT ECT test equipment paper and cardboard tester machine, kindly check and hope helpful, if there is any questions, kindly contact us:
email: [email protected], or [email protected],
whatapp: +86-15692312640,

Crush Tester is used to do the Ring Crush test, Edge Crush Test, Flat Press Test, Adhesive Strength Test, and Paper Tube Compress Test.

We also have the accessories for its each test.

Standards:
ISO 3070, ISO 12192-2011, ISO 7263-2011, ISO 3035-2011

Feature:
1. Microprocessor control, automatically carry the test according to testing requests.
2. Protect press sensor through the protection switch for over- loading.
3. Analyzing the group of testing data and to show the maximum, minimum, average,
4. Standard deviation and coefficient of variation displayed by color touch screen, print out the data.

Technical parameter:
Press measuring range: 0-5KN
Resolution: 1N
Accuracy: ±1%
Speed: 12.5±2.5mm/min
Platen distance from top to bottom
0-78mm (customized)
Printer: mini-type printer
Power: AC220V 50Hz 1A
Working condition
Temperature: 0-40℃,
relative humidity less than 85%
Dimension: 345mm×300mm×505mm
Weight: 75kg
