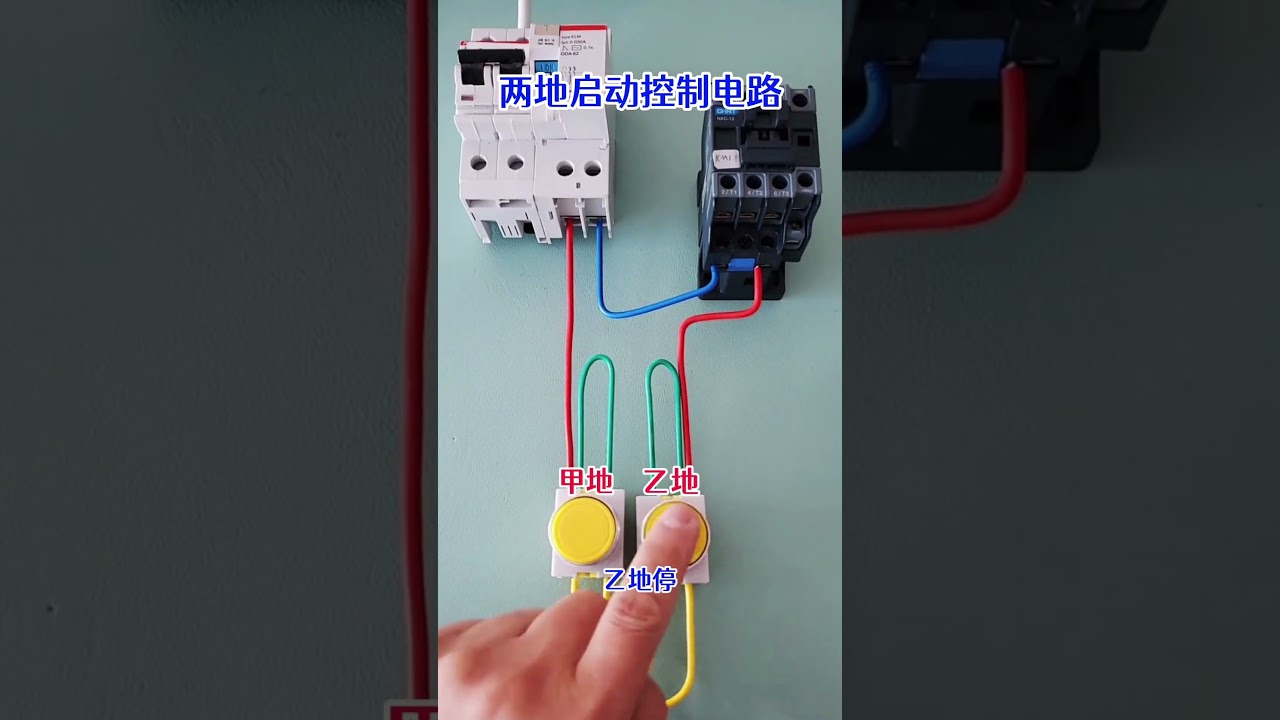

The two - place start - control circuit is a circuit that can start and control the same electrical equipment from two different locations. The following is a detailed introduction to the two - place start - control circuit:
Circuit Composition and Principle
**Components**: The two - place start - control circuit mainly consists of a power supply, start buttons, stop buttons, contactors, relays and other electrical components, as well as the wires connecting these components. Among them, the start buttons and stop buttons are respectively installed in two different locations to achieve two - place control.
**Working Principle**: When the start button is pressed at either location, the current passes through the button and the coil of the contactor, causing the contactor to close, the main circuit to be connected, and the electrical equipment to start running. At the same time, the auxiliary normally - open contact of the contactor closes to achieve self - locking, ensuring that even if the start button is released, the coil of the contactor can still remain energized and the electrical equipment continues to run. When the stop button is pressed at either location, the coil of the contactor loses power, the contactor releases, the main circuit is disconnected, and the electrical equipment stops running.
Wiring Method
When wiring, the two start buttons need to be connected in parallel, so that no matter which start button is pressed, the current can pass through and start the contactor.
The two stop buttons need to be connected in series. Only when both stop buttons are in the unpressed state can the circuit work normally. Pressing any one of the stop buttons will cut off the circuit.
Practical Application Scenarios
**Industrial Production**: In some large - scale factories, in order to facilitate operators to start and control equipment in different work areas, the two - place start - control circuit is often used. For example, start and stop buttons are set at both ends of a production line so that operators can operate at different positions, improving work efficiency and convenience.
**Building Facilities**: In some large - scale buildings, such as shopping malls, office buildings, etc., for some centrally - controlled equipment, such as central air - conditioning systems, ventilation systems, etc., the two - place start - control circuit may also be used. In this way, managers can control the equipment on different floors or in different areas of the building, facilitating the management and maintenance of the equipment.
Advantages and Precautions
**Advantages**: The two - place start - control circuit increases the flexibility and convenience of control, enabling operators to start and stop the equipment at different locations, improving work efficiency, and also facilitating the operation and management of the equipment.
**Precautions**: When installing and using the two - place start - control circuit, it is necessary to ensure that the wiring is correct to avoid circuit failures or equipment damage due to incorrect wiring. At the same time, regular inspections and maintenance of the circuit should be carried out to ensure the good performance of each electrical component to ensure the normal operation of the circuit. In addition, attention should be paid to the communication and coordination between the two places to avoid safety accidents caused by misoperation.#electricalandelectronicadventure #short#electricalandelectronicadventure #short #shortvideos #electricaltips #electrical #wirejoint #electricalshorts #shorts,#Pakistan #Seychelles #Rwanda #Paracel Islands #Niger #Montserrat
