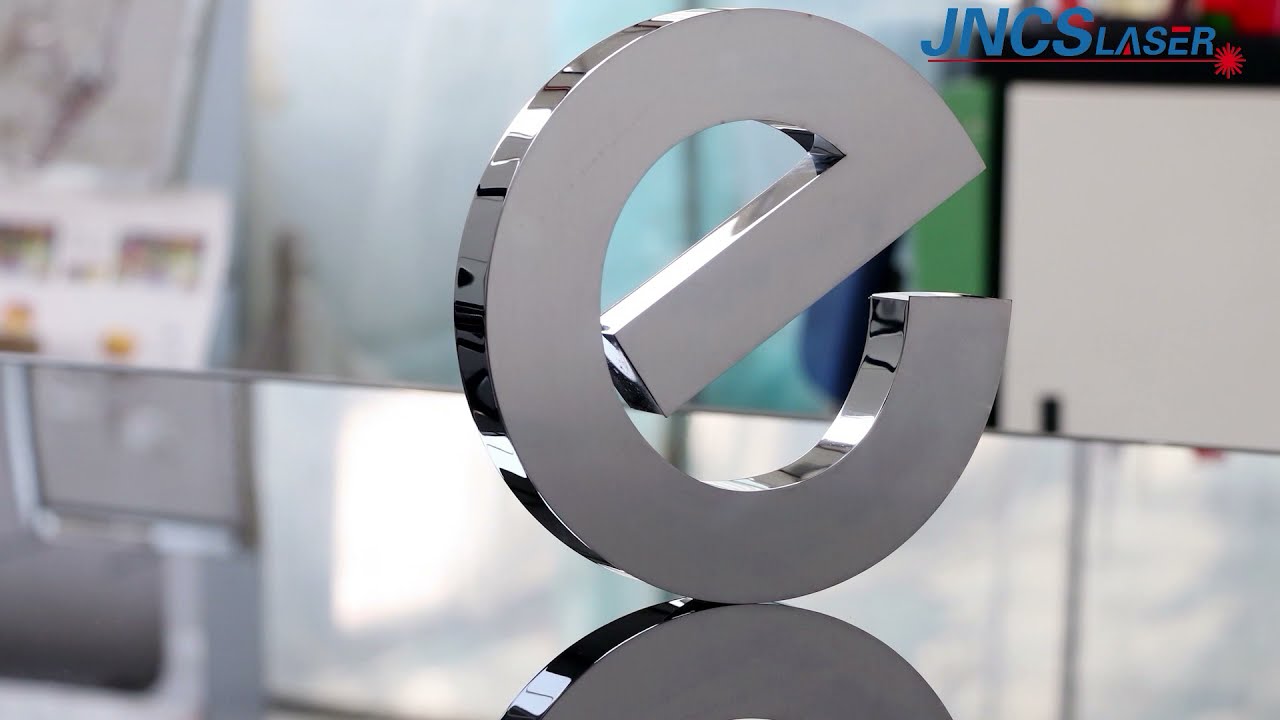

Скачать или смотреть Affordable Laser Welding Machine for 3D Channel Letter, SS letter welding machine

Channer Letter Laser Welding Machine for stainless steel signs jncslaserjncslaser Channel letter yag laser welding machine with handheld welding head Metal Letter Laser Welding Machine is used for the welding of LED illuminated billboard, exterior/interior signs, branding, door plate that made of aluminum, S/S, iron, galvanized sheet, titanium, brass, copper, and etc. Laser beam with high energy melts two metal sheets and combine them together without feeding any soldering materials. From any aspect, laser welding is the best solution and the greenest.

Features:

1. Red light spot fast positioning, CCD display, microscope optional
2. High working speed: 6 times faster then traditional TIG or MIG welding
3. Slight distortion and less heating affect.
4. Capable of partial heating process.
5. Able to deal with complex, profiled, or tiny letters.
6. Low noise and no pollution.
7. Ultrafine positioning rod makes corner welding easier without changing position
8. Laser cavity can move in all directions manually in order to weld letters of different size and in different shape
9. Parameter setting is very easy; up to 10 sets of parameters can be memorized for different application

Application:

Factory Directly Supply 300W 500W Metal Letter Laser Welding Machine is applied for the welding of various metal letters, LED illuminated letters,customized metal signage, exterior billboards and metal support.

Applicable Materials:

Factory Directly Supply 300W 500W Metal Letter Laser Welding Machine can weld Aluminum, S/S, Iron, Galvanized sheet, Titanium, Brass, Copper, and etc.

Technical Parameters:
Model CS 300W CS 500W CS300F CS500F
Product 300W
Laser welding machine 500W
Laser welding machine 300W Dual Laser Path and Hand-held
Laser welding machine 500W Dual Laser Path and Hand-held
Laser welding machine
Mechanical Part The laser cavity length1200mm ，Laser Head rotary 360 degree。
Work Table Size 750*1000
Bearing weight 200KG
Voltage 220V±10%/50/60Hz 380V±10%/50/60Hz 220V±10%/50/60Hz 380V±10%/50/60Hz
Laser Mode Nd:YAG Pulsed xenon lamp
Adjustable facular size 0．2-3．0mm
Laser wave length 1064nm
Pulse90J 10ms
Laser Power 300W 400W 300W 500W
Single power energy 90J 120J 90J 120J
Frequency 100Hz 100Hz 100Hz 100Hz
Focal Length 180-230mm 180-230mm 180-230mm
180-230mm
Cooling Water cooling
refrigerating capacity 2700W 5000W 2700W 5000W
Power 7KW 12KW 7KW 12KW
Positioning CCD
