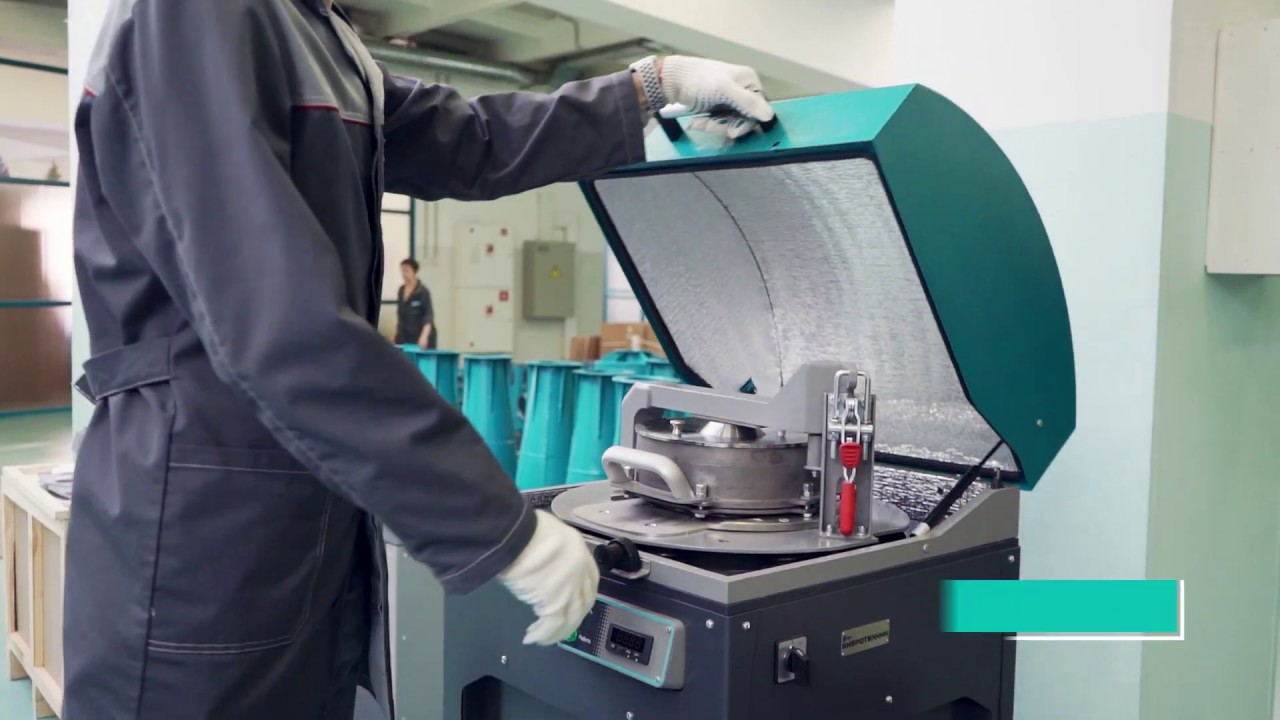

Скачать или смотреть Vibrating grinder VGE (VIBROTECHNIK) (2020)

See more: https://vt-spb.ru/catalog/dlya_istira...

Vibrating grinder VGE is designed for grinding samples from 250 to 750 ml with high productivity. The main purpose of VGE is the grinding of samples to an analytical size of less than 74 micrometers in the mining and metallurgical laboratories.

Cup charging volume – 250-750 (cm3)
Number of cups – 1
Maximum material feed size – 20 (mm)
Vibration frequency – 1,500 (vibrations / minute)
Vibration amplitude – 16 (mm)
Comminution time – 1-30 (minutes)
Maximum material hardness – 7 Mohs units
Electric motor power – 2,2 (kW)
50 Hz supply voltage – 380 (V)
Overall dimensions (Length х Width х Height) – 670х615х1225 (mm)
Weight – 350 (kg)
Grinding element material – tool steel / zirconium dioxide / wolfram carbide – AISI 01, DIN 150Cr14
