This instrument is a collection of portable and fully-digital ultrasonic flaw detector. The two models in the series – high version and low version – all have the capacity to detect, localize and evaluate various defects in metals with rapidity and precision. Particularly, it is highly effective in the detection of welds, cracks, inclusions, and metal porosity in a non-destructive manner that is suitable for laboratory or project site environments. The detector’s wide variety of applications can be highly useful for defect detection and quality control in manufacturing, steel metallurgy, metal processing and chemical engineering, among other industries. Moreover, it can also be widely used for in-service safety inspections and live assessments in aircraft, railway and traffic industries, as well as boiler and pressure vessels.
The Digital Ultrasonic Flaw Detector offers high speed, high accuracy, high efficiency, high reliability, and real-time operation in a digital interface. The detector contains the most up-to-date technology and has the following features:

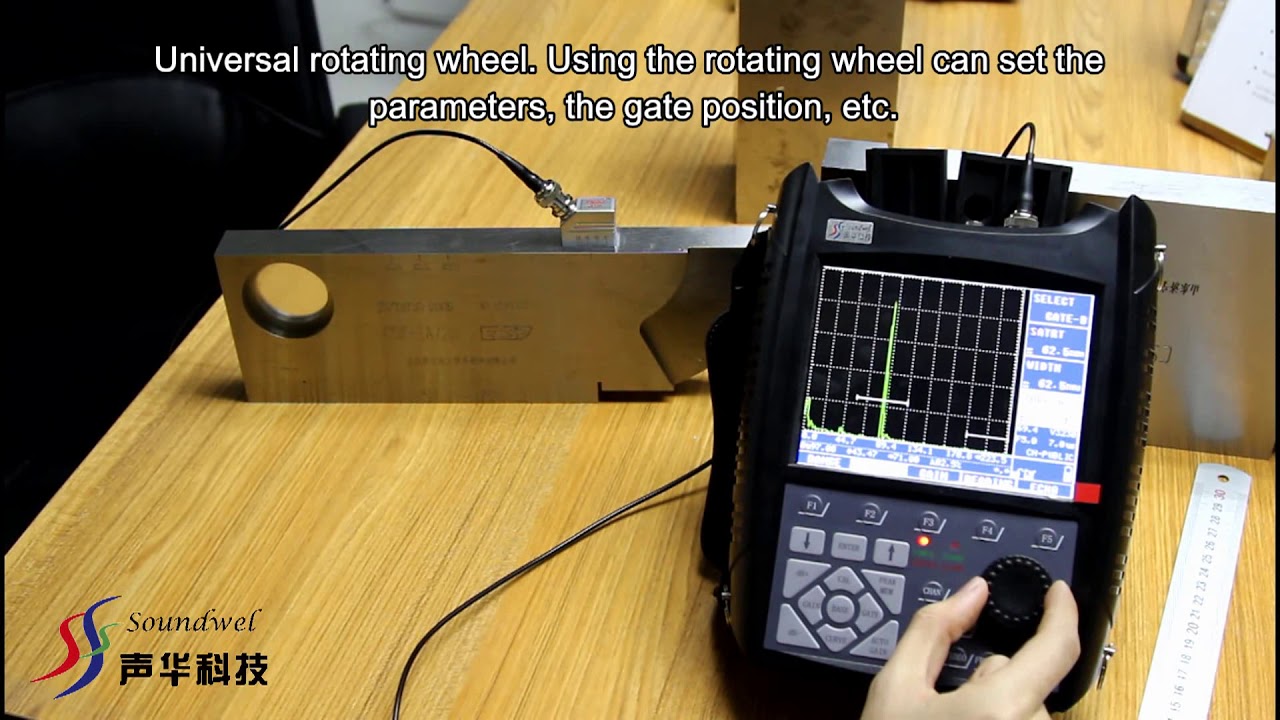

◇A user-oriented interface with a multi-function shortcuts, menu operation and a rotating navigation wheel.
◇A 5.7-inch TFT color screen with adjustable color and bright settings.
◇A small and light portable battery that can be charged anytime for use in any environment.
◇Multi-channel testing with the option to save channels.
◇Large capacity for waveform storage and the ability to load waveforms.
◇The capacity to record and store high-speed videos.
◇Automatic readings capture with moving gates.
◇Adjust the gain conveniently using gain subtraction shortcuts (users can also access the preset parameters with one key).
◇Automatic calibration for various probe parameters.
◇A no order limit for point in DAC and AVG curves.
◇Fully adjustable pulse transmission (amplitudes and widths) with built-in support to block pulses and transmit sharp pulses.
◇Impedance matching for different requirements of sensitivity and resolution.
◇Four work modes: normal probe, angle probe, dual-crystal straight probe and transmission probe.
◇Receive and amplify signals:
Real-time sample: high speed ADC, wave detail fully displayed.
Rectification: full, positive, negative, reflective.
Gate: dual-gate, support time gate and sound path gate, echo capture automatically.
Gain: Multi-grade adjustable, basic gain, scan gain, compensation gain, support locked gain and auto gain;
◇Alarm function: beep alarm and flash alarm.
◇Digital display zoom: change the font size in parameters menu.
◇Real-time stopwatch function: track and save time records.
◇USB functionality: data transfer via high-speed USB.
◇Power saving: screen brightness will automatically decrease or shut off to save power and extend product life.
◇Detection features:
Peak-value recording: record and save the maximum values of defect recording in real-time.
Echo envelope: receive detailed information on peak trace depiction for defect echo.
Crack height measurement: automatically measure and calculate crack height (only high version).
B-SCAN: real-time scanning of cross-sectional shape to directly display the shape of the workpiece. Includes thick B-SCAN (both models) and color B-SCAN (only high version).
Aperture: auto-calculate aperture flaws (i.e. Ф values) (only high version)
AWS function: directly display defect classifications.
Weld diagrammatic presentation: directly display the sectional distribution of weld defects during weld testing (only high version).
Automatic DAC and AVG generation: automatically find the highest wave of the defect and automatically calculate equivalent Ф by normal/angle probe.
Video function: record, save and play waveform in real-time.
Defect location: values for horizontal value (L), depth (H) and sound path (S).
Defect quantitative analysis: flexible display according to an adjustable reference.
Defect qualitative analysis: real-time estimates and judgements of envelope waveform.
Curved surface correction: automatic correction and conversion of curved surfaces (only high version)
Broadening function: user-adjustable ability to broaden the waveform selection.
Echo code: different echoes distinguished by different colors (only high version)
Caution
◇Refrain from powering on and off repeatedly – please wait for 5s before powering on again.
◇Avoid strong vibrations, impacts or strong magnetic fields.
◇Do not leave the detector in high temperature, high humidity or corrosive gas environments.
◇Do not overexert operation of detector keys, and minimise operation of keys with oily or muddy hands.
◇Contact dealers if problems in the detector arise.
