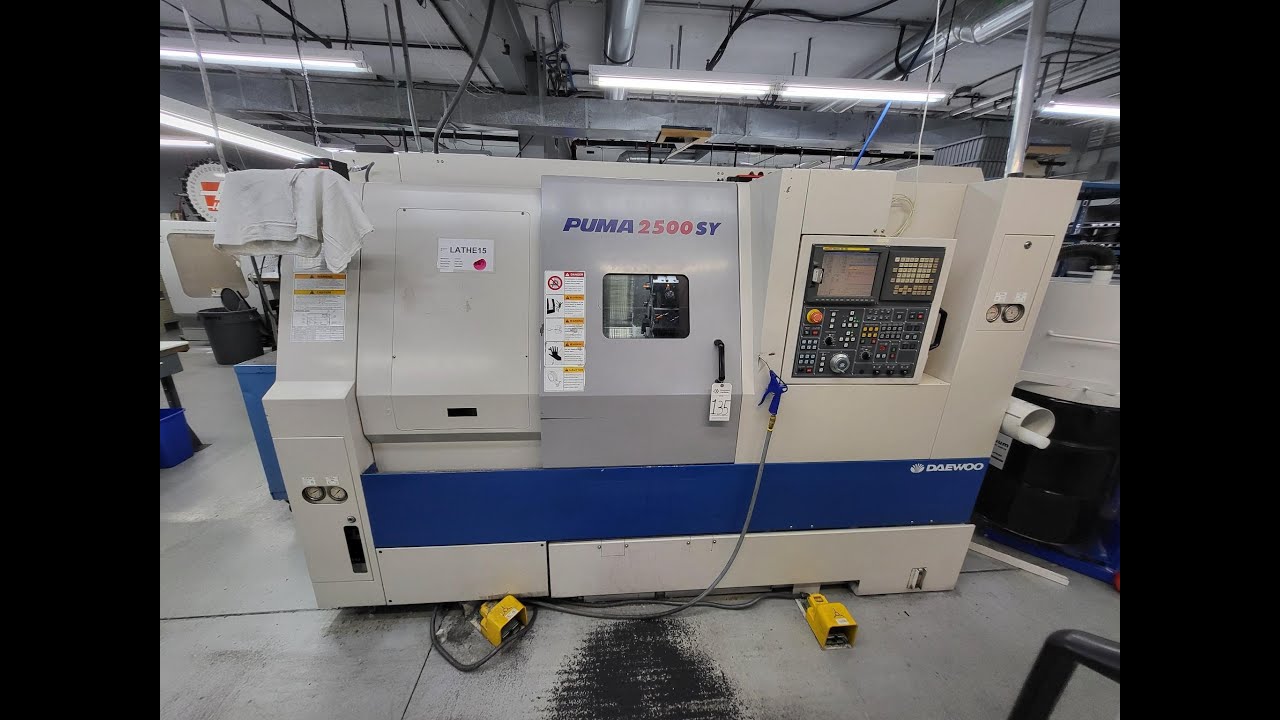

Скачать или смотреть CNC and Grinding Facility Closure Lot 1135 - 2004 DAEWOO PUMA 2500SY CNC LATHE TURNING CENTER

2004 DAEWOO PUMA 2500SY CNC LATHE TURNING CENTER USED FOR POLY CUTTING ONLY IN TEMP CONTROLLED ROOM
SN: P250SY0300
SPECIFICATIONS:
SWING OVER BED: 600MM
SWING OVER SADDLE: 550MM
RECOM. TURNING DIAMETER: 255MM
MAX. TURNING DIAMETER: 330MM
MAX. TURNING LENGTH: 500/750MM
BAR WORKING DIAMETER: 76MM
X-AXIS TRAVEL: 250MM
Z-AXIS TRAVEL: 580/830MM
Y-AXIS TRAVEL: 100(+ 50) MM
B-AXIS TRAVEL: 580/830MM
SPINDLE SPEED: 3,500 RPM
SPINDLE NOSE: A2#8 ASA
SPINDLE BEARING DIAMETER: 130MM
SPINDLE THROUGH HOLE DIAMETER: 90MM
MIN. SPINDLE INDEXING ANGLE(C-AXIS): 0.001 DEG
NO. OF TOOL STATIONS: 12
OD TOOL SIZE: 25MM
BORING BAR DIAMETER: 40MM
INDEXING TIME: 0.1 SEC
ROTARY TOOL SPINDLE SPEED: 6,000 RPM
SPINDLE SPEED: 6,000 RPM
SPINDLE BEARING DIAMETER: 80MM
SPINDLE THROUGH HOLE DIAMETER: 45MM
MIN. SPINDLE INDEXING ANGLE(C-AXIS): 0.001 DEG
RAPID TRAVERSE(X/2-AXIS): 20/24 M/MM
RAPID TRAVERSE(Y-AXIS): 7.5 N/MIN
RAPID TRAVERSE(B-AXIS): 20 M/MIN
MAIN SPINDLE MOTOR: 22/15 KW
SUB SPINDLE MOTOR: 7.5/5.5 KW
ROTARY TOOL SPINDLE MOTOR: 3.7 KW
FEED MOTOR(X,Y,Z,B-AXIS): X:3.0, Z:3.0, Y:1.6, B1.6
COOLANT PUMP MOTOR: 0.4 KW
ELECTRIC POWER SUPPLY: 52.9 KVA
MACHINE HEIGHT: 2,060 MM
MACHINE DIMENSION(LENGTHXWIDTH): 3,118/3,493 X 1,705 MM
MACHINE MASS: 4,900/5,400 KG
