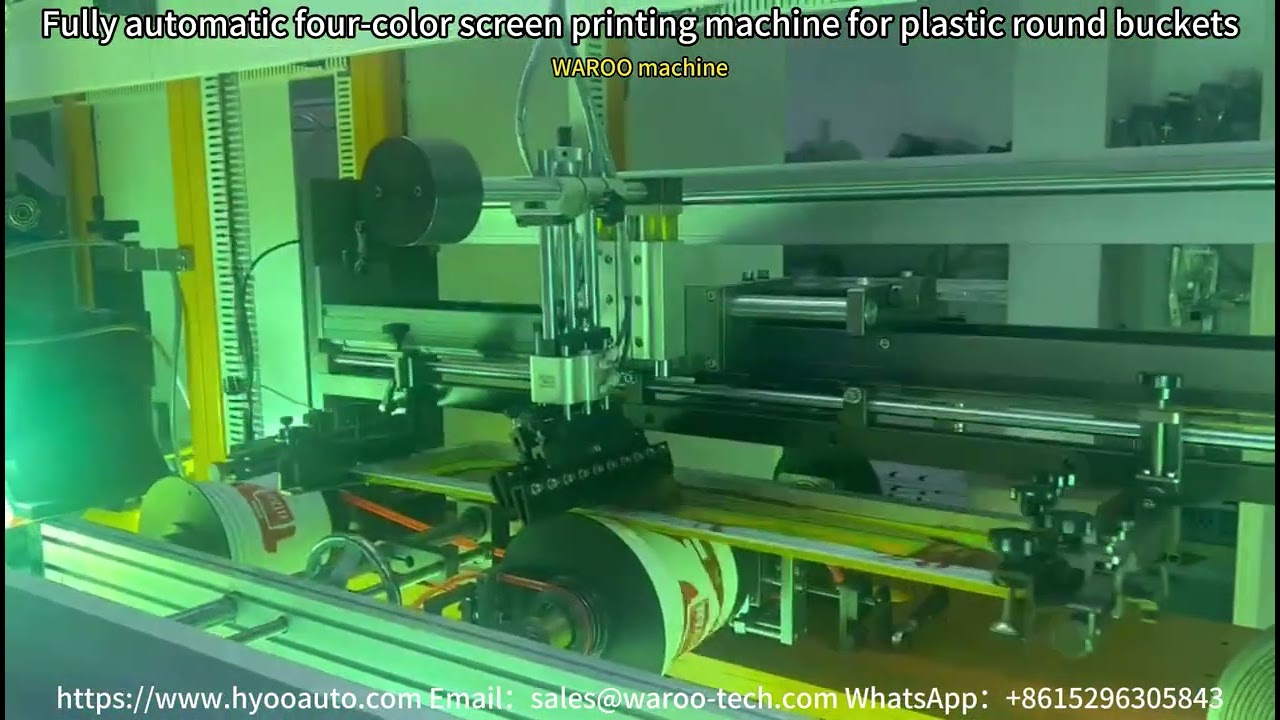

Скачать или смотреть Fully automatic four-color screen printing machine for plastic drums.

HY-1000: 1 To 8 Color Automatic Bucket UV Screen Printing Machine Printer.
The HY-1000 feature a DC motor controlled linear walking beam system that is solidly built to provide accurate color to color print registration with print speeds up to 22 pieces per minute. Once bucket enter the HY-1000 machinery they are automatically flame treated and fed through each of the subsequent printing and UV curing stations.

Typical Features of One to Eight Color Automatic Bucket UV Screen Printing Machine HY-1000
1 to 8 color automatic UV bottle screen printing machine.
Fast print speeds up to 4200 bottles per hour.
Accurate color to color registration.
Prints on round, oval and square bottles.
Mechanical driven bottle transport in high stability.
Omron PLC and touch screen controlled.
Italy SITI brand main motor.
Intelligent UV system saves energy consumption.
Integrated anti-static dust blowing and bottle surface flame treating.

he HY-1000 series of precision automatic UV screen printing machines designed for printing onto large pails, 25 litre buckets and 2 litre sized plastic bottles. The HY-1000 automatic UV screen printing press can also screen print on beer pony kegs, stainless-steel thermos bottles, jars & containers. The HY-1000 feature a DC motor controlled linear walking beam system that is solidly built to provide accurate color to color print registration with print speeds up to 22 pieces per minute. Once bucket enter the HY-1000 machinery they are automatically flame treated and fed through each of the subsequent printing and UV curing stations.

Main Specifications of One to Eight Color Automatic Bucket UV Screen Printing Machine HY-1000

Model NO.: HY-1000-1
Bucket size: Diameter: φ150-350mm, Height: 200-400mm
Max. print area: L900 x W250mm
Max. printing capacity: 22 pcs/min
Registration tolerance: +/- 0.2 mm
Infeed conveyor: 1 unit, length: 2 meters
Flame treating system: 3 units, LP gas
Motor: ITALY SITI
Print head: 1 unit
UV system: 1 unit intelligent UV system, 5KW per each
Outfeed conveyor: 1 unit, Length: 2 meters
Control system: OMRON PLC & Touch Screen
Frequency Converter: OMRON
Drive: Mechanical Driven
Pneumatic parts: FESTO or SMC
Electrical: 380V 3phase 50Hz
Air requirement: 5-7 bar
Air consumption: 100 liter/ minute max. (per color)
Power consumption: 20 KW/color x 1
Machine size(LxWxH): Main machine: 7000x2900x2000mm
Weight: 2500 KG

Contact us today to learn how this machine can meet your business needs.
Guangdong WAROO Intelligent Technology Co., Ltd.
Email: [email protected]
Phone/WhatsApp/WeChat: +8615296305843
Website: www.hyooauto.com
We are a professional machine manufacturer specializing in custom automation machines, including screen printers, pad printers, and hot stamping machines.
