Скачать или смотреть Wireless Bluetooth low energy measurement of Mitutoyo LVDT

*DialFace App Version 1.0.1 featured in video

PRODUCT DESCRIPTION OF WIMER3:

WiMER-30 is the new device in the WiMER product line. It is developed for Mitutoyo Linear Gage with 90° phase difference, differential square wave.
WiMER-30 is also equipped with the wireless data transmission ability via Bluetooth Low Energy like normal WiMER, helping you get rid of expensive and bulky signal conditioner.
WiMER-30 sends readings to iPhone, iPad and Windows PC (USB Bluetooth Dongle needed for PC).

Specs:
• Dimension: 104 x 56 x 23 mm
• Resolution: 0.0001 mm (depending on the linear gage)
• Range: 10 mm (depending on the linear gage)
• Sampling Frequency: 5/10/20 Hz
• Number of Channels: 1/2/more (on request)
• Wireless Working Range: up to 10 m
• Working Temperature: 0-50 ºC
• Battery: 2500 mAh rechargeable
• Charging: 5 VDC USB and 110VAC


FIND ONLINE: http://motionics.com/product/wireless...
BUY NOW: https://store.motionics.com/collectio...

SOFTWARE DESCRIPTION:

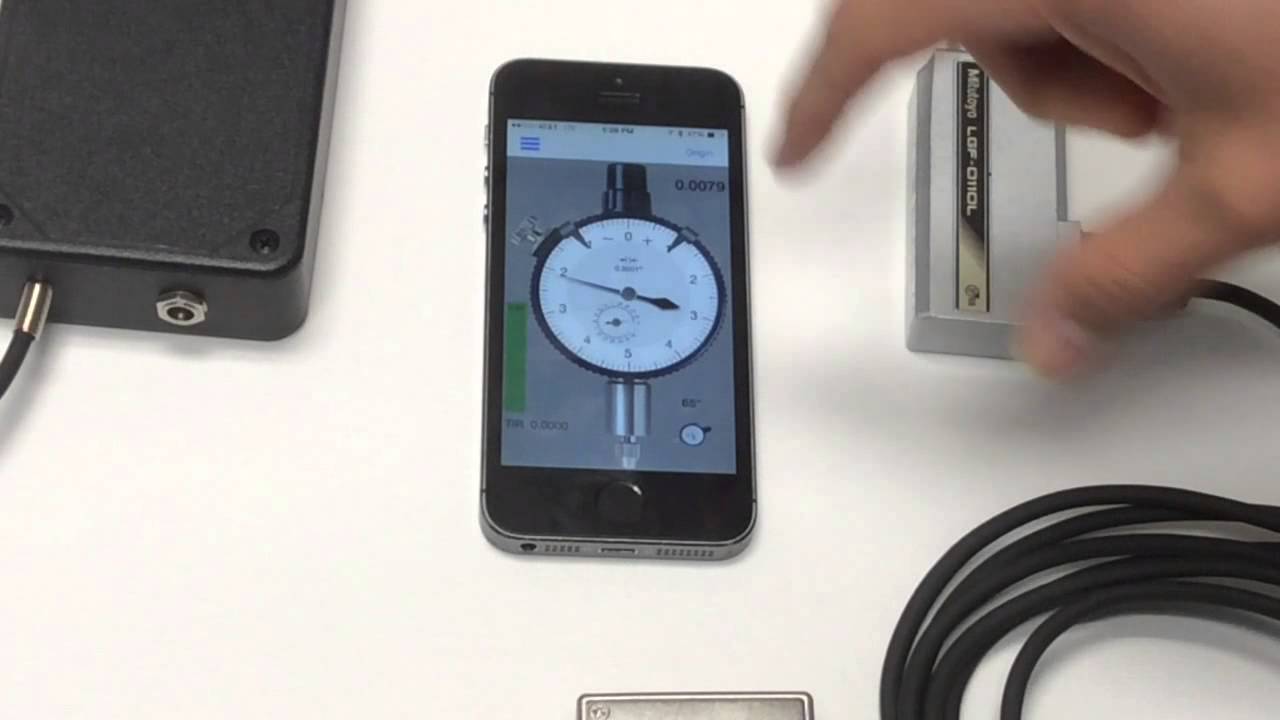

DialFace connects to the Motionics bluetooth (LE) digital dial device and reads the measurements. This system allows you to have a wireless bluetooth measurement device and read the values directly from your iPhone.

By having this App and its wireless digital dial system you can can see the readings in analog rotating dials from your iPhone with a big screen.

Features:
continuous reading from digital dial indicator 10 samples/seconds
showing the reading in an analog rotating dial
several standard Mitutoyo dial faces available to choose (micron, mill resolutions)
reading the standing angle of the instrument from internal angle sensor
Text to Speech: Read the measurements in 7 languages with adjustable repeating time
two adjustable limit handle on the dials
ORIGIN the reference by rotating the back face of the dial
Maximum peak holder
Total Indicator Reading (TIR)
Adjustable threshold for TIR
TIR indicator bar showing (Red/Green)
Big screen for digital readings

DOWNLOAD NOW: https://itunes.apple.com/us/app/dialf...

RELATED PRODUCTS:

Blue Dial- Bluetooth Wireless Indicator for Mitutoyo products (http://motionics.com/product/bluedial)

WiMER- Wireless measurement read for Mitutoyo/Fowler/Sylvac digital instruments (http://motionics.com/product/wimer-se...)


FIND MORE MOTIONICS PRODUCTS AT: http://www.motionics.com/products.html


ABOUT MOTIONICS

Motionics, LLC was established in February 2011 in Austin, TX to develop new technologies for diagnostics and monitoring of rotating machinery. Another expertise of Motionics is educational products including software and hardware for engineering and technical applications.
Also, Motionics provides innovative industrial solutions in form of tablet-based software (Applications) along with custom-designed hardware for monitoring of rotating equipment.
