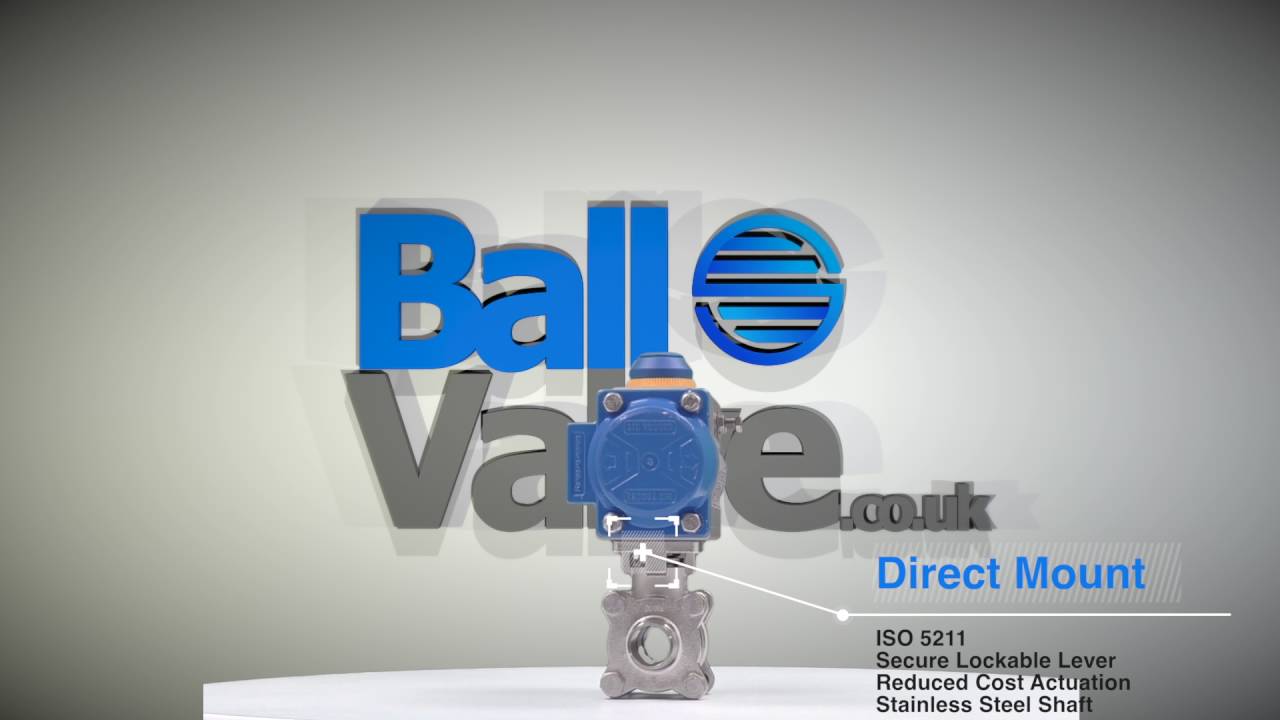

Скачать или смотреть Pneumatically Actuated 3PCE FB 316 Stainless Steel Direct Mount OD Weld Ball Valve, FDA Approved

Viz Switch Pneumatic Actuator for Quarter Turn Ball Valve applications. A small, lightweight, robust and compact design offering high torque outputs for both Spring Return & Double Acting Units.

High Visual position indicator offers easy valve monitoring even from a distance.

Atex Approved, Aluminium Anodised Body as standard available in PTFE coating and Stainless Steel options.

Operating Media Dry/Lubricated Air, Inert/Non Corrosive Gases

Operating Pressure 2.5 Bar (36 PSI) Minimum – 8 Bar (116 PSI) Maximum

Clockwise or counterclockwise setup available based on end users requirements.

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Cavity Filled Seats and Seals.
Ta-Luft self adjusting stem sealing. Nace MR-0175 compliant.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body. ATEX approved.
400 psi/g pressure rated.
Chemically polished external surface, Mechanical polish Ra 32 / 0.8um Internal.

Suitable for Clean Steam and Steam Sterilisation duties up to 200 Deg C

Silicone Free. Valve is suitable for use on Oil based Paints.

Certified as being non-Bovine and TSE (Transmissible Spongiform Encephalopathy) Free for all manufacturing and packaging processes

Options available:
100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/Lever
Mating Clamp Ferrules, Clamps and Seals also in stock.
Standard seat material (TFM 1600®) is 3A, FDA and WRAS certified

Design Rating: MSS SP-110, BS4825
Inspection & Testing: MSS SP-110

End connections: BS4825 OD Weld

Available size range: 1/2” - 4”
