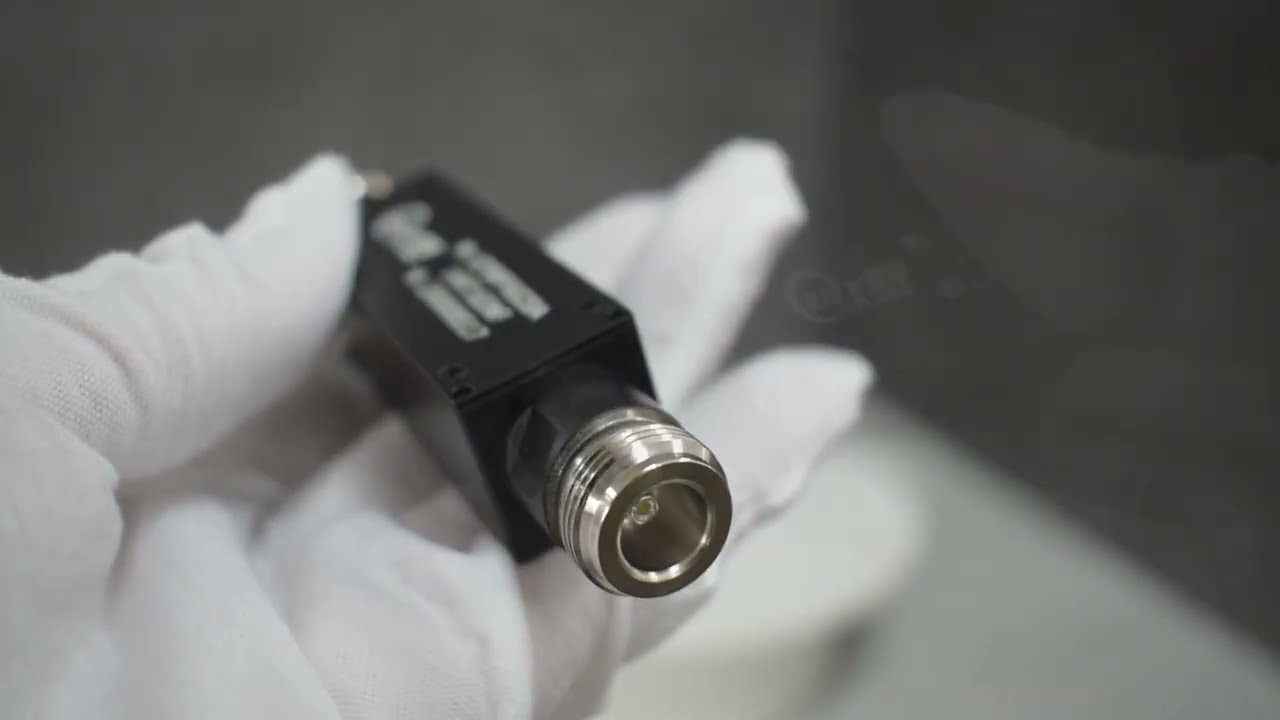

UIYBPF6020A is operating at VHF pass band 149~165MHz with rejection 60dB @88~108MHz & 40dB @225~400MHz. The center frequency is 157MHz. It performs at insertion loss less than 2.0dB, VSWR 1.3:1, handling power 10W. It is a LC filter designed by compact size 60x20x20mm.

Terrestrial Trunked Radio (TETRA; formerly known as Trans-European Trunked Radio), a European standard for a trunked radio system, is a professional mobile radio and two-way transceiver specification.

Model No.: UIYBPF6020A
Freq.Range (MHz): 149 ~ 165 MHz
IL Max(dB): 2.0
Rejection Min (dB): 60dB @ 88 ~ 108MHz
40dB @ 225 ~ 400MHz
VSWR Max: 1.3
Power(W): 10W
Connector Type: N-Female, SMA-Female
Temp. (°C): -40 ~ +85 °C
Dimension LxWxH(mm): 60*20*20mm
Manufacturer: UIY Inc.
