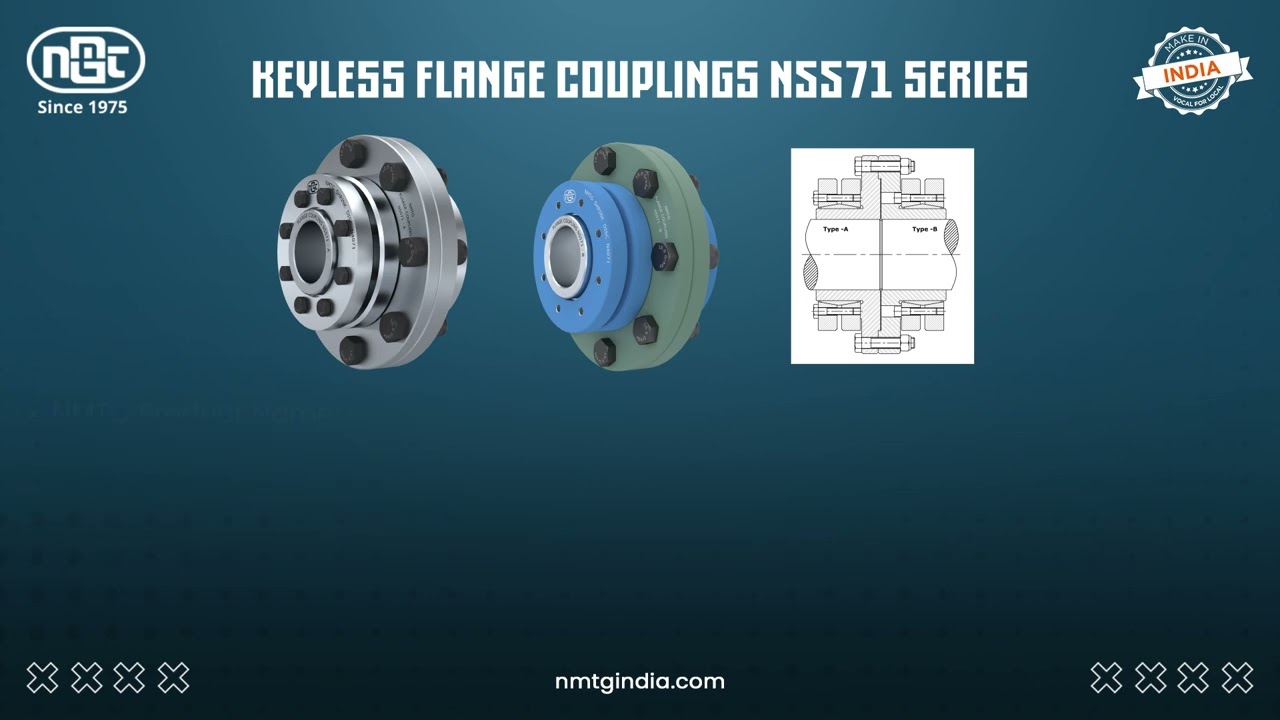

NMTG Keyless Flange Coupling consists of two connecting flanges: Male-female type, which together make up the N5571 coupling as an assembly. The main function of the flange coupling is the safe and backlash-free connection of two shafts by means of friction. The flange coupling is simply pushed onto the shaft and fastened so it is frictionally engaged by tightening the screws in the shrink disc. They transfer torque and bending moments as well as axial and radial forces.

• NMTG Product Name: Keyless Flange Coupling
• NMTG Model Name: N5571
• Maximum shaft dia Capacity: 300 mm
• Maximum Transmitting Torque Capacity: 588000 Nm
• Special / Customized Solution on demand for Specific Requirements
