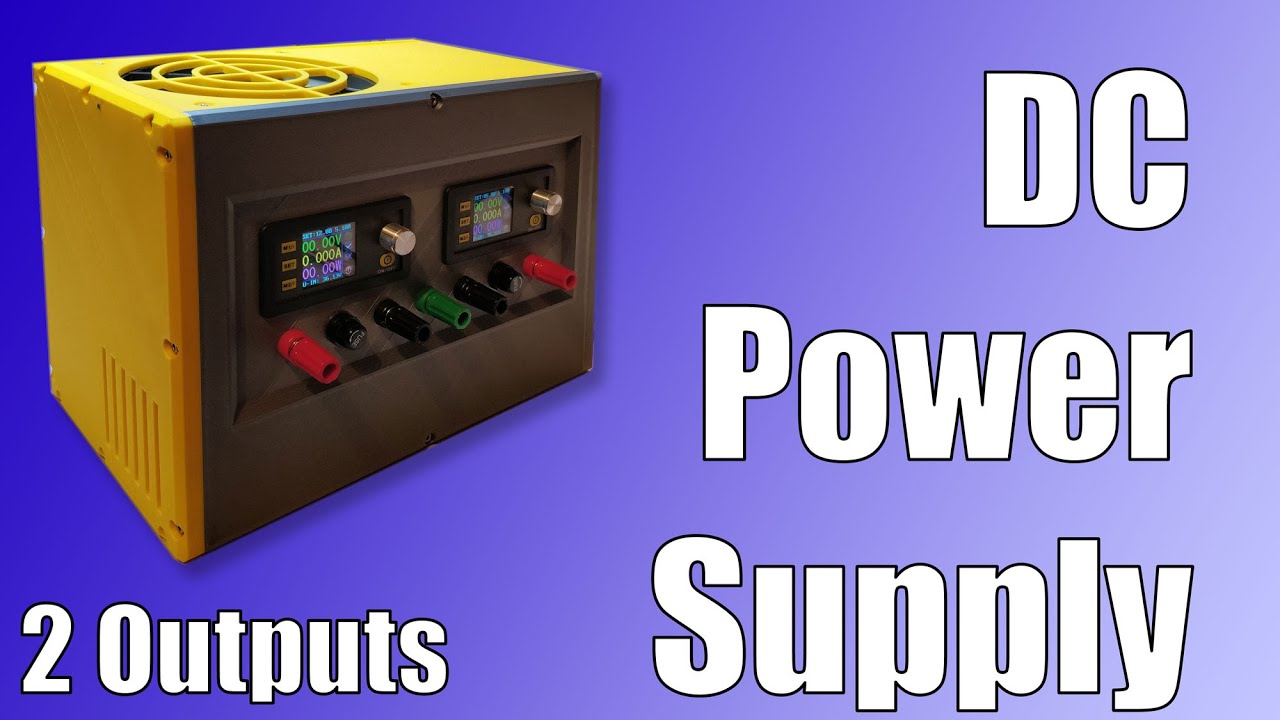

Benchtop DC Power Supply 0-30V, 0-5A, 3D printed, based on Mean Well AC/DC, 2 adjustable outputs, fan cooled.


Thingiverse: https://www.thingiverse.com/thing:416...

Prusaprinters: https://www.prusaprinters.org/prints/...

Pinshape: https://pinshape.com/items/59788-3d-p...


I was in need of a reliable power supply for my maker space. I need two adjustable outputs, constant voltage/current, and voltages from 3.3 up to 30 V. Having 5A was one goal as well.

   • Benchtop Power Supply 0-30V, 0-5A, 3D prin...

BE CAREFUL! WARNING: Voltage from mains is dangerous and can cause serious injuries or death. BE CAREFUL or ask a professional to help you with the wiring.

Bill of materials:

1x Mean Well AC/DC LRS 200/36 https://www.amazon.de/gp/product/B07F...
1x C14 socket with switch and 6A fuse https://www.amazon.de/gp/product/B01H...
2x DC-DC https://www.amazon.de/gp/product/B07D...
1x Buck converter https://www.amazon.de/gp/product/B077...
1x 120mm fan, 12V https://www.amazon.de/gp/product/B002...
7x Cable shoes 4.8x0.8 https://www.conrad.de/de/p/vogt-verbi...
2x fuse holders https://www.conrad.de/de/p/tru-compon...
2x Fuses 20x5mm, 6.3A https://www.conrad.de/de/p/eska-52252...
1x Binding post 4mm, green https://www.conrad.de/de/p/cliff-tp-1...
2x Binding posts 4mm, red https://www.conrad.de/de/p/cliff-tp-1...
2x Binding posts 4mm, black https://www.conrad.de/de/p/cliff-tp-1...
15x Cable shoes M3.5 https://www.conrad.de/de/p/conrad-com...
4x screws Cylinderhead M4x20
2x screws Cylinderhead M4x15
1x screw Cylinderhead M4x6
25x screws Cylinderhead M3x20
2 screws Cylinderhead M3x16
5 screws Cylinderhead M3x12
2 M3 nuts
Heat shrinking tube, 5mm diameter, about 250mm
2.5 sqmm wire, 3 colors, rated for at least 6 A
solder stuff
zip ties
4x selfadhesive rubber feet

3D print all the parts once each. Forget about support, rafts, brims etc. Just 3 shells in each direction, and 20% cubic infill. I used standard PLA from https://dasfilament.de, and the stuff printed well on my Prusa I3 Mk3. If you have a printer with less then 250mmx200mm print bed, this thing might not be for you.

Once you have the printed parts available, and sourced the list above, this was my way to go.

BE CAREFUL! WARNING: Voltage from mains is dangerous and can cause serious injuries or death. BE CAREFUL or ask a professional to help you with the wiring.
