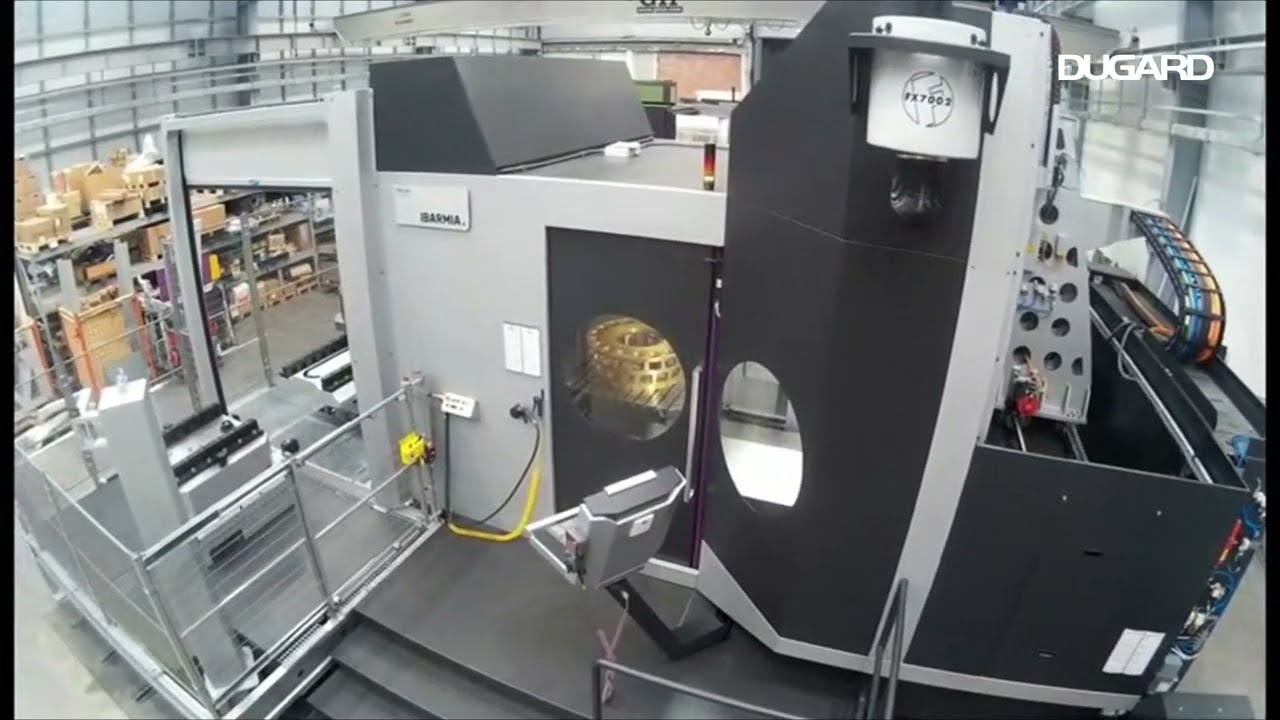

Скачать или смотреть IBARMIA THC 22 Universal 5 Axis Machining Centre Available at Dugard UK

http://www.dugard.com for more information
Power, accuracy and dynamics combined with excellent chip evacuation, ergonomics and intelligent production functions.
Spindle tapers
Table size
1250 x 1250 mm
Maximum load capacity
10.000 Kg
SK-50 • BT-50 • HSK 100 • CAPTO 8
Axis travels
X • From 1200 to 3600 mm / Y • From 1100 to 2300 mm
Z • From 1000 to 1900 mm
B • -15º/+195º / A • -45º/+135º
Spindle
Up to 84 kW - 12.000 rpm

INCLUDED ITEMS IN STANDARD CONFIGURATION
• Direct measuring on linear axes X / Y / Z.
• Measuring by rotary scale on rotary axes B / C / A.
• Travelling on lineal guides and ball screws.
• Servomotors with braking system for the axes.
• Hydraulic counter weight for the head.
• Electro spindle thermal compensation.
• 60 tool ATC magazine.
• Air blast for tool cleaning.
• Totally encapsulated working area.
• Vertical covers on X axis (steel bellows).
• Illumination of working area.
• Longitudinal endless screws for chip evacuation. (double screw in T36-T30 models).
• Rotary control panel.
• Touch screen 19”.
• Chip Conveyor with integrated coolant tank.
• External coolant system around the spindle.
• Programmable central lubrication system.
• Climatized electrical cabinet.
• Stairs to machine access.
• Machine levelling elements.
• Informative cartel in black methacrylate.
• SMART POINT machine data monitoring system.
OPTIONAL ITEMS
• Coolant through spindle.
• ATC magazines up to 240 tools.
• Special tool magazines up to 400 positions managed by arm robot.
• Automatic pallet changer APC (rotopallet, pallet-pool).
• Tool measuring and touch systems.
• Steam and mist aspiration system.
• Spray and air guns.
• “Illumination” pack: LED lights with acoustic signal integrated into the machine.
• 3 light tower with acoustic signal.
• Camera settings and display mode.
• CNC control with touch screen up to 24”.
• Advanced HMI.
• Portable electronic hand-wheel with support in the control panel.
