Скачать или смотреть HIT ultrasonic machining module applications of Sapphire curved surface machining

Based on reaching clients’ quality standard, the final machining performance with HIT ultrasonic machining enhances 20% of Efficiency compared to non-ultrasonic machining.

Sapphire is a crystal form of alumina oxide (Al2O3), it is widely applied in 3C and optoelectronics industries for LED substrate and surface of portable devices.
However, sapphire is more easily to chip compared to alumina ceramic, so that improper machining force by conventional CNC way causes worser results of quality.
The stiffness properties leads to situations of extremely short tool l The applications of sapphire are also associated with tight tolerances which makes sapphire parts processing become a high-level standard.

UAD (Ultrasonic assisted machining) is well-known for processing brittle materials. The high frequency and micro-oscillations turn continuous stress to intermittent loading and reducing scratch loads and microcracks propagation. HIT ultrasonic machining module adopts non-contact power transmission system to level up the performances of ultrasonic machining. Without limiting of spindle speed, the tool rotation speed can reach more than 38000 rpm(depends on different kinds of tool holders), so it can enable more process parameters for operator to choose, process the complex workpieces

-----------------------------------------------------------------------------------------------------------------
Resources & Links:

Sapphire Case:
https://www.hit-tw.com/advantagedetai...

Other Ceramic machining applications video:
https://www.hit-tw.com/applications.aspx

Articles of technical ceramics:
https://www.hit-tw.com/newsdetails.as...

Welcome to view other cases in our website:
https://www.hit-tw.com/Advantage.aspx

What is ultrasonic machining?
https://www.hit-tw.com/technology.asp...

Introduction of HIT Ultrasonic Machining Module?

Find us:
TEL : +886-4-2285-0838 #9
FAX : +886-4-2285-0836
E-mail : [email protected]
Contact us: https://www.hit-tw.com/Contact.aspx
Location: Room 913, Guonong Center, No. 145 Xingda Road, South District, Taichung City
Subscribe us: https://reurl.cc/exgj8x to learn more about ultrasonic machining.
Find HIT on Twitter:   / hantoptech
Find HIT on Facebook:   / hantopintell.  .
Find HIT on LinkedIn:   / hant.  .
-----------------------------------------------------------------------------------------------------------------
Video Content:
Part 1: Introduction of Sapphire
00：00：08-Single crystal structure, High Hardness, Excellent transparency, High Temperature endurance
00：00：14-Widely applied in 3C and optoelectronics industries for LED substrate and surfaces of portable devices
00：00：18-The extreme hardness and stiffness causing micro-cracks and uneven machining surface.

Part 2: HIT Ultrasonic Machining Module

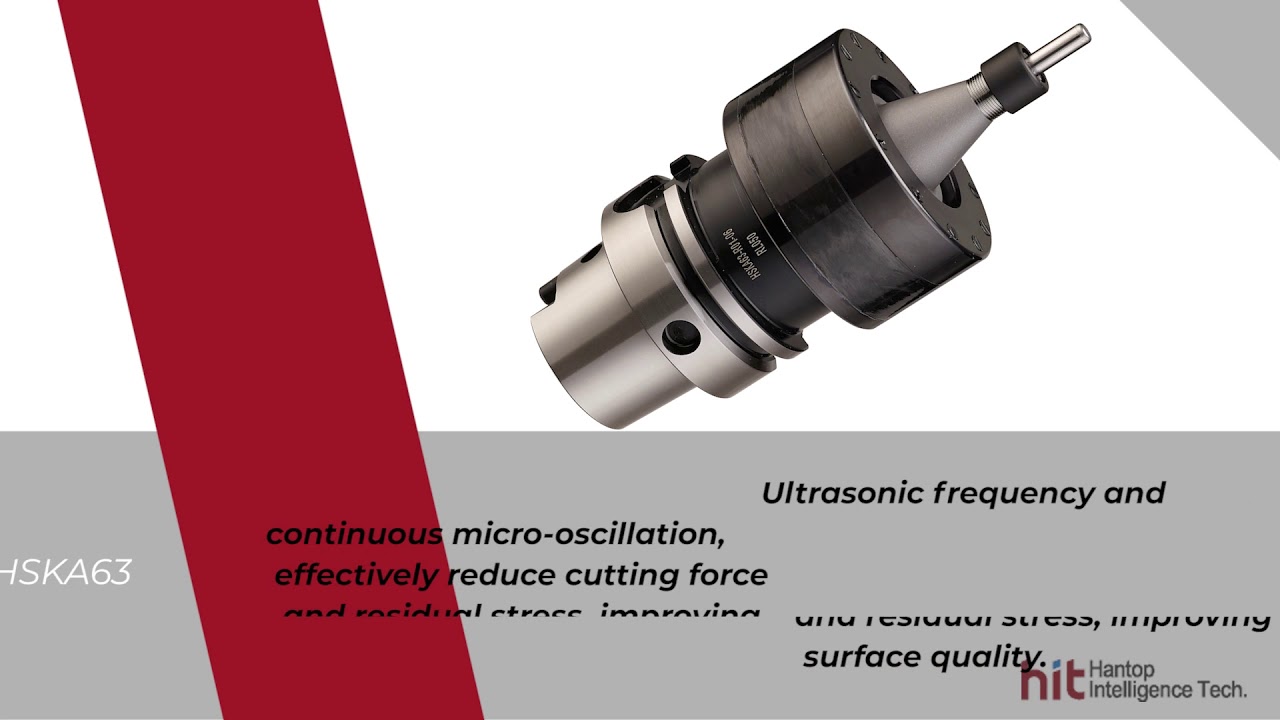

00：00：22 HSKA63 Ultrasonic Tool Holder
Ultrasonic frequency and continuous micro-oscillation, effective reduce cutting force and residual stress, improving surface quality.

Part 3:
00：00：34
Enlarges material removal rate and reduces machining time.

Part 4:
00：00：41
HIT Highlights:
Efficiency increased 100% compared to conventional CNC.
Chipping of the workpiece is significantly reduced.

#Sapphire #UAD #RUM #ultrasonicmachining #hantopintelligence
