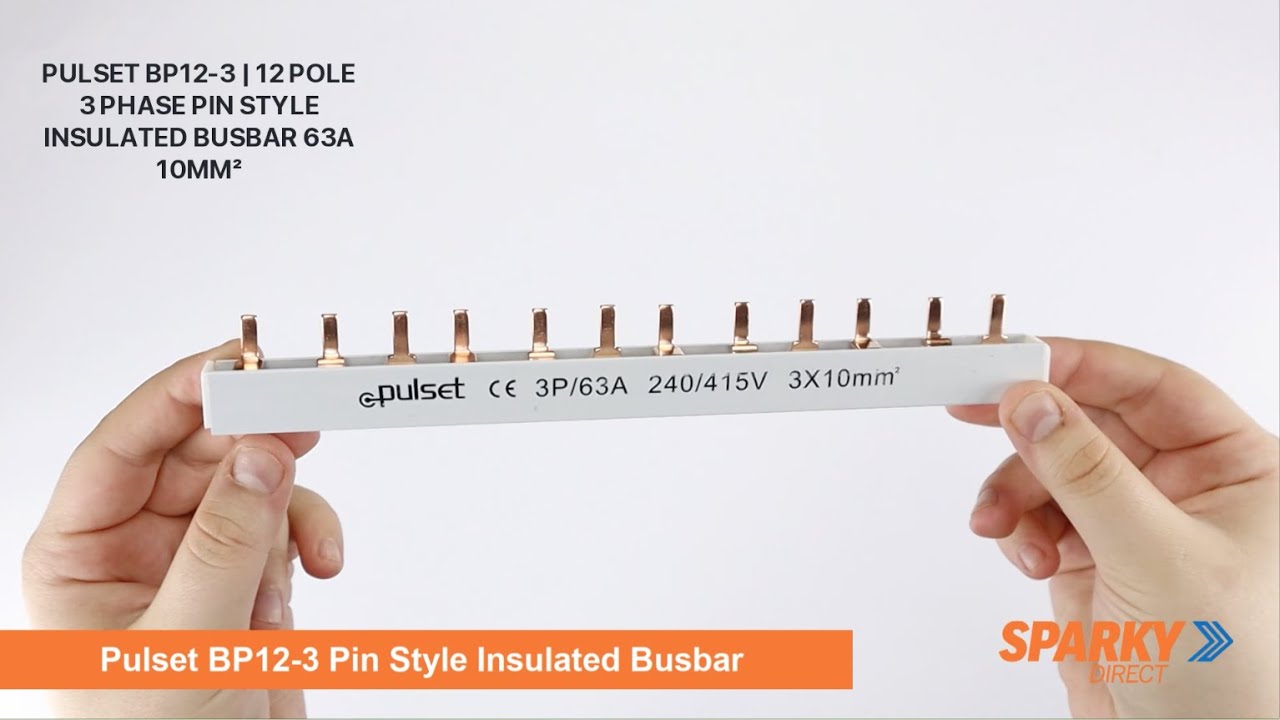

PULSET BP12-3 | 12 POLE 3 PHASE PIN STYLE INSULATED BUSBAR 63A 10MM²
Available at Sparky Direct - Electrical Online Wholesaler
https://www.sparkydirect.com.au/p/Pul...

The Pulset BP12-3 is a 12 pole 3 phase pin style copper busbar with plastic insulation on the body. It is designed for 3 phase connection. The pin style busbar reduces wiring effort, makes for a safer installation as it prevents hot spots and can be installed faster than looping building wire.
No looping required for active conductors.
The teeth on the busbar has a 12mm pitch. Quality construction and tested to perform.

Features:

Number of poles: 12P
3 Phase
63A
Max operating voltage: 240V
Length: 222 mm
Connection cross-sect. rigid cable: 10mm²
Connector type: pin Style
Type of connection: with screw / quick connect
